AMD Radeon RX 7600

RX 7000 · Radeon RX 7600 · RX 7600

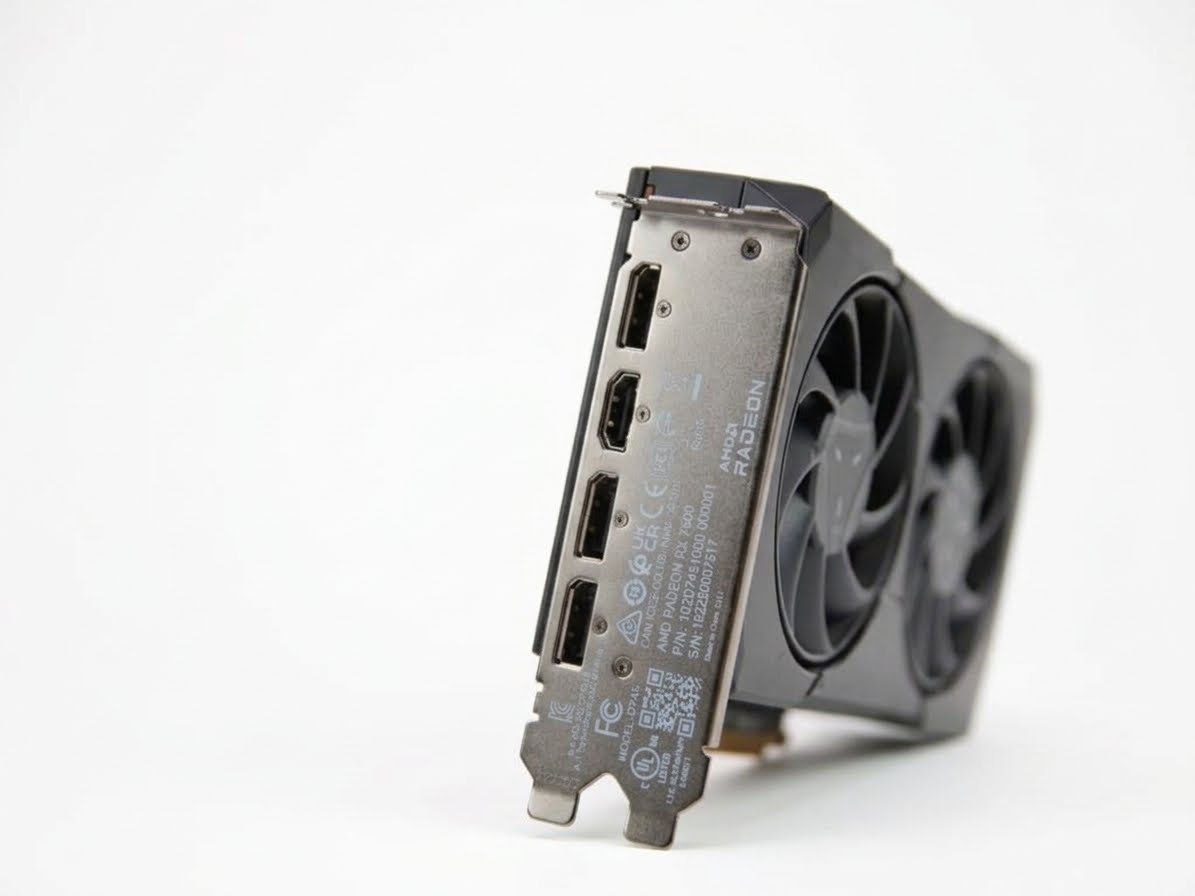

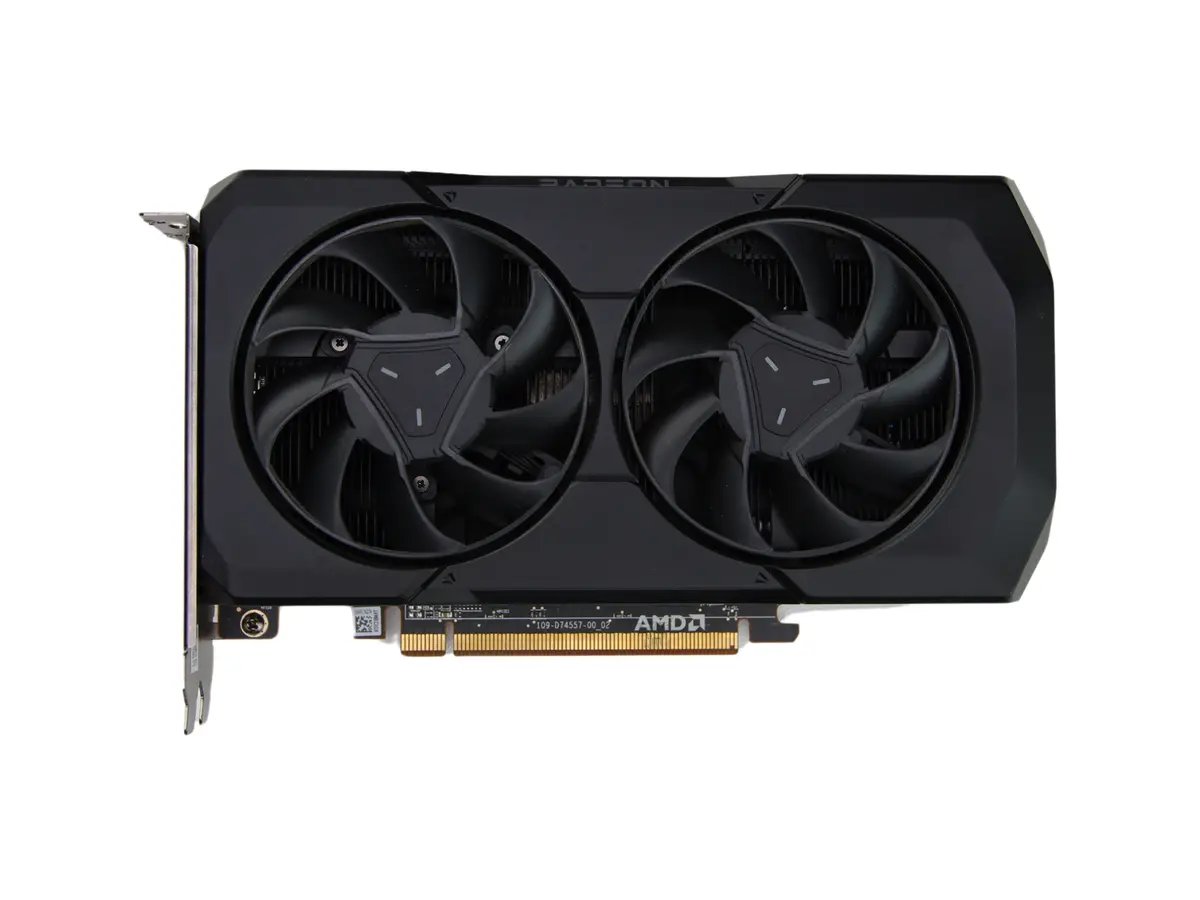

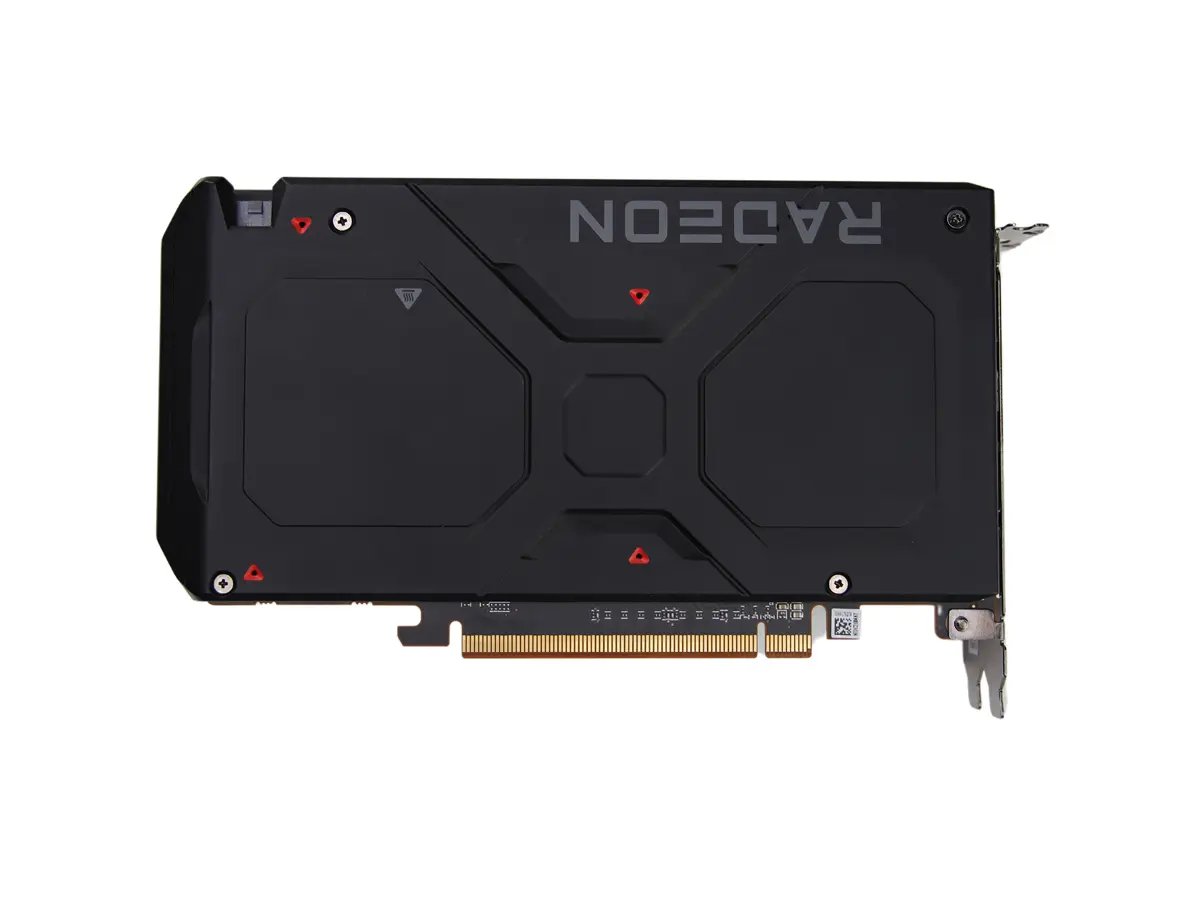

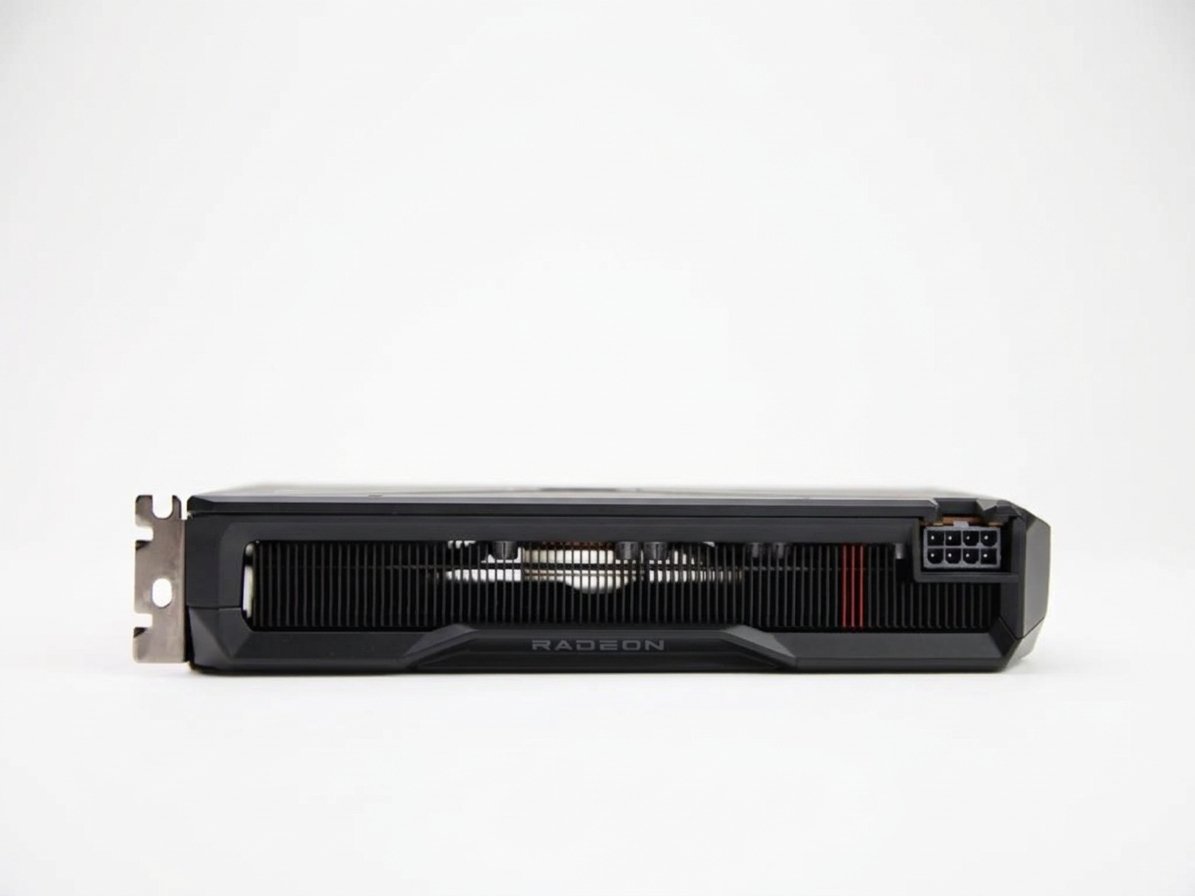

AMD Radeon RX 7600 product image
AMD Radeon RX 7600 product image 1AMD Radeon RX 7600 product image 2AMD Radeon RX 7600 product image 3AMD Radeon RX 7600 product image 4

General

SeriesRX 7000
ModelRadeon RX 7600
ChipRX 7600
Launch Year2021
Release Date5/24/2023
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureRDNA 3.0
GPU DieNavi 33 (Navi 33 XL)
FoundryTSMC · 6 nm
Transistors13.3 billion
Die Size204 mm²

Cores

Shading Units2048
TMUs128
ROPs64
SM / CU32
Tensor Cores64
RT Cores32
L2 Cache2 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed18 Gbps

Clocks and Power

Base Clock1720 MHz
Boost Clock2655 MHz
TDP165 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3221.75 TFLOPS
FP1643.5 TFLOPS
FP640.68 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length205 mm
Height115 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenCL 2.2
OpenGL 4.6
Shader Model 6.8
Hardware EncoderVCN 4.0
Encoding
AV1
H.265
H.264
Decoding
AV1
H.265
H.264
VP9
