AREZ STRIX RX Vega 64 GAMING OC
RX Vega · STRIX RX Vega 64 GAMING OC · RX Vega 64
General
| Series | RX Vega |
|---|---|
| Model | STRIX RX Vega 64 GAMING OC |
| Chip | RX Vega 64 |
| Launch Year | 2017 |
| Release Date | 8/7/2017 |
| Launch MSRP | $499 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | GCN 5.0 |
|---|---|
| GPU Die | Vega 10 (Vega 10 XT) |
| Foundry | GlobalFoundries · 14 nm |
| Transistors | 12.5 billion |
| Die Size | 495 mm² |
Cores
| Shading Units | 4096 |
|---|---|
| TMUs | 256 |
| ROPs | 64 |
| SM / CU | 64 |
| L2 Cache | 4 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | HBM2 |
| Memory Bus | 2048-bit |
| Memory Speed | 2 Gbps |
Clocks and Power
| Base Clock | 1247 MHz |
|---|---|
| Boost Clock | 1590 MHz |
| TDP | 295 W |
| Power Connector | 8-pin |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 12.66 TFLOPS |
|---|---|
| FP16 | 25.33 TFLOPS |
| FP64 | 0.79 TFLOPS |

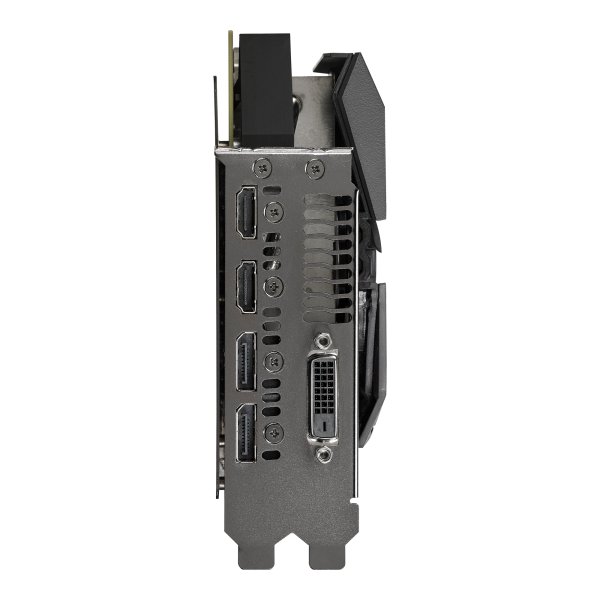

Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 2× |
| DVI | 1× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 298 mm |
|---|---|
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
