ASRock Arc A580 Challenger

Arc A · Arc A580 Challenger · Arc A580

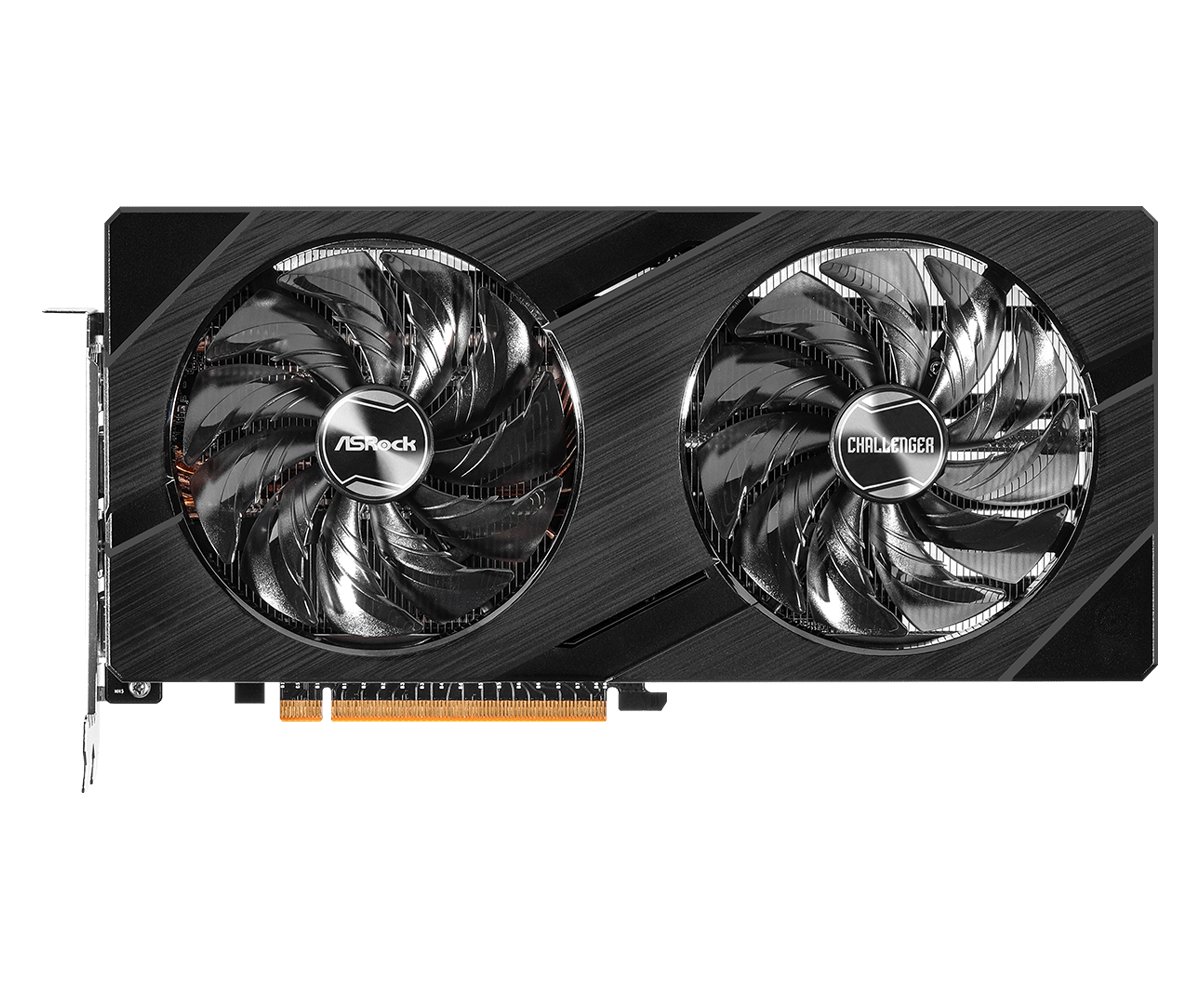

ASRock Arc A580 Challenger product image

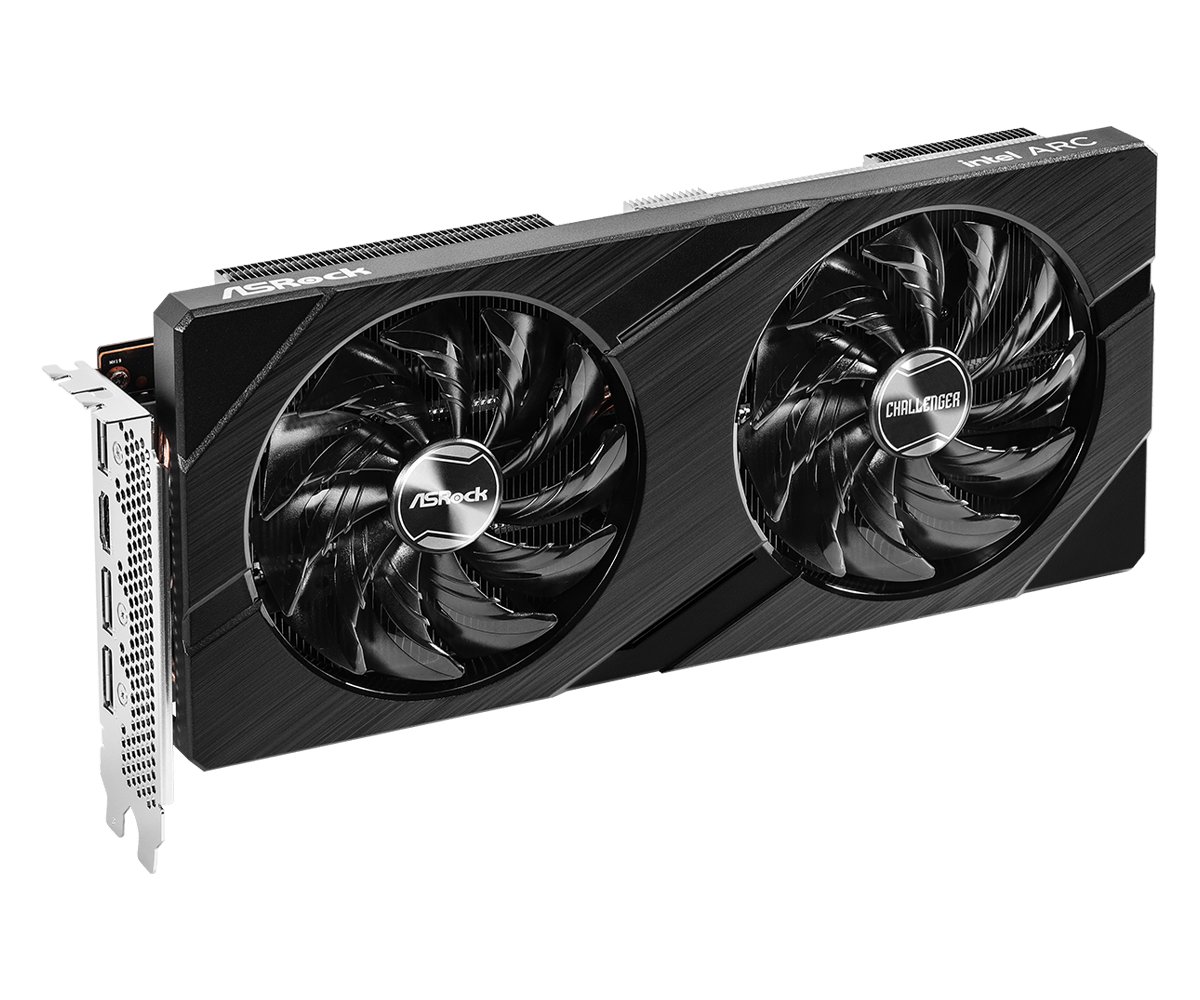

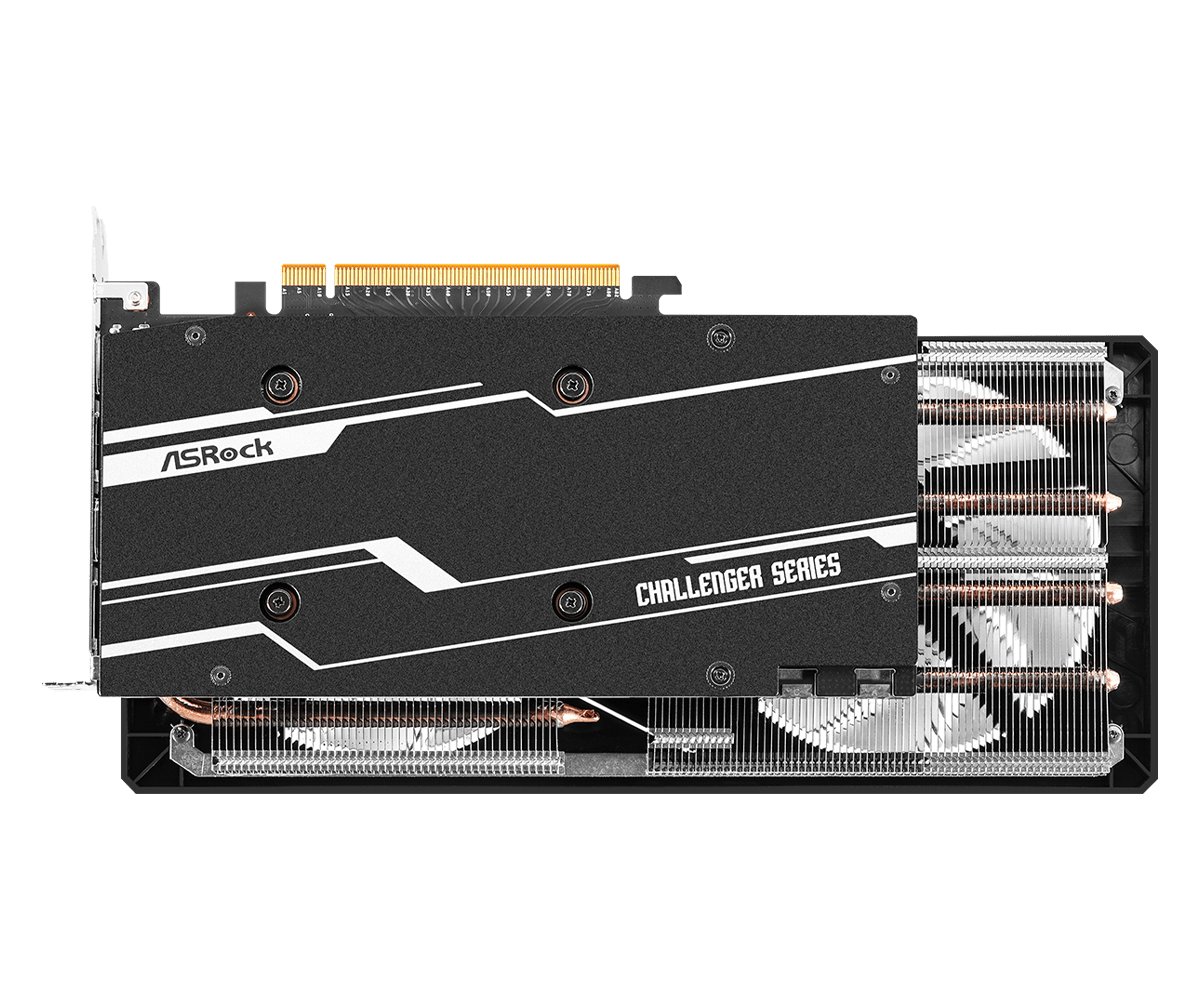

ASRock Arc A580 Challenger product image 1ASRock Arc A580 Challenger product image 2ASRock Arc A580 Challenger product image 3ASRock Arc A580 Challenger product image 4

General

SeriesArc A
ModelArc A580 Challenger
ChipArc A580
Launch Year2023
Release Date10/10/2023
Launch MSRP$179
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureXe-HPG
GPU DieDG2-512 (ACM-G10)
FoundryTSMC · 6 nm
Transistors21.7 billion
Die Size406 mm²

Cores

Shading Units3072
TMUs192
ROPs96
SM / CU384
Tensor Cores384
RT Cores24
L2 Cache8 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed16 Gbps

Clocks and Power

Base Clock1700 MHz
Boost Clock2000 MHz
TDP175 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3212.29 TFLOPS
FP1624.58 TFLOPS
FP641.54 TFLOPS

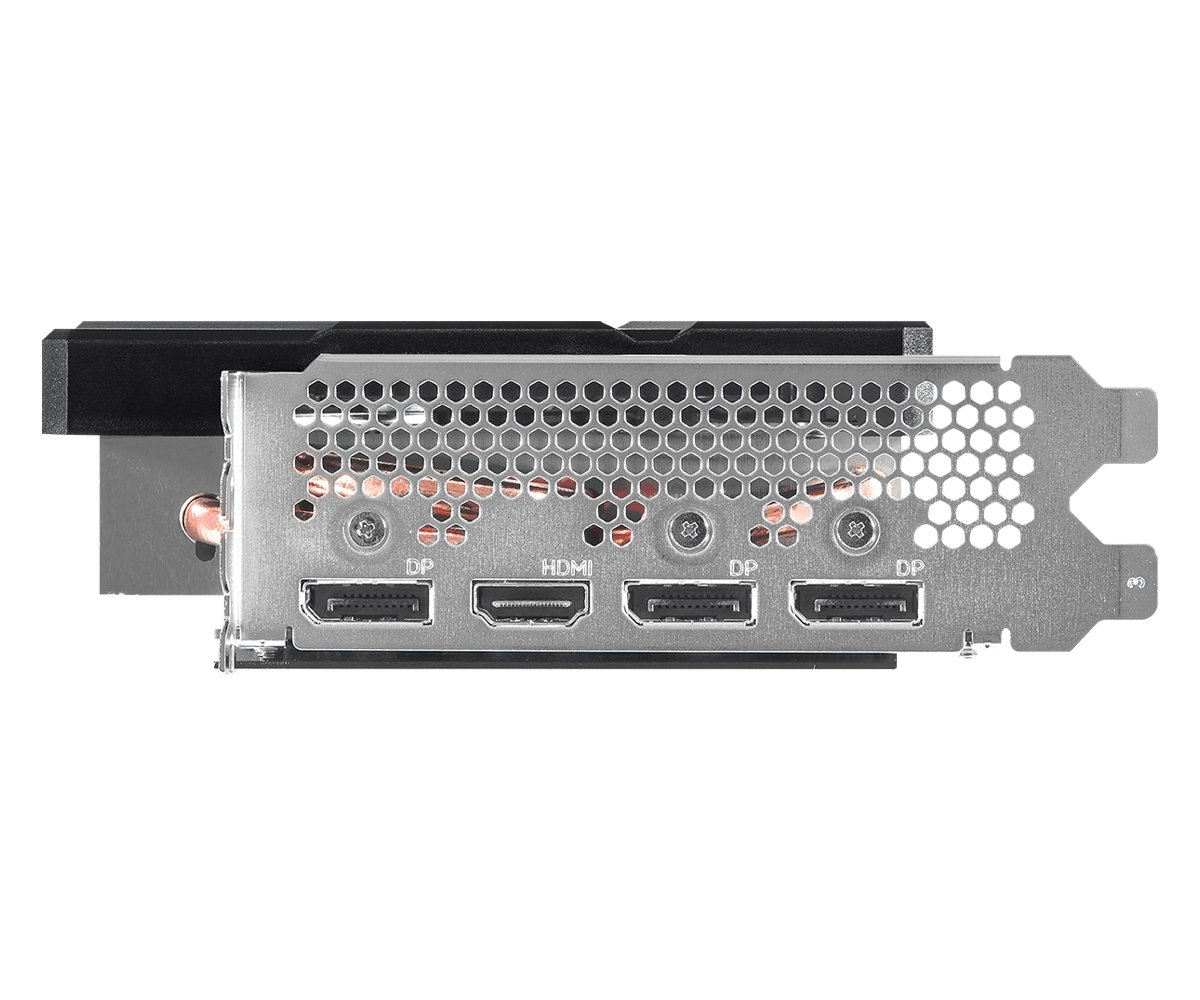

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length270 mm
Width47 mm
Height130 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.6
