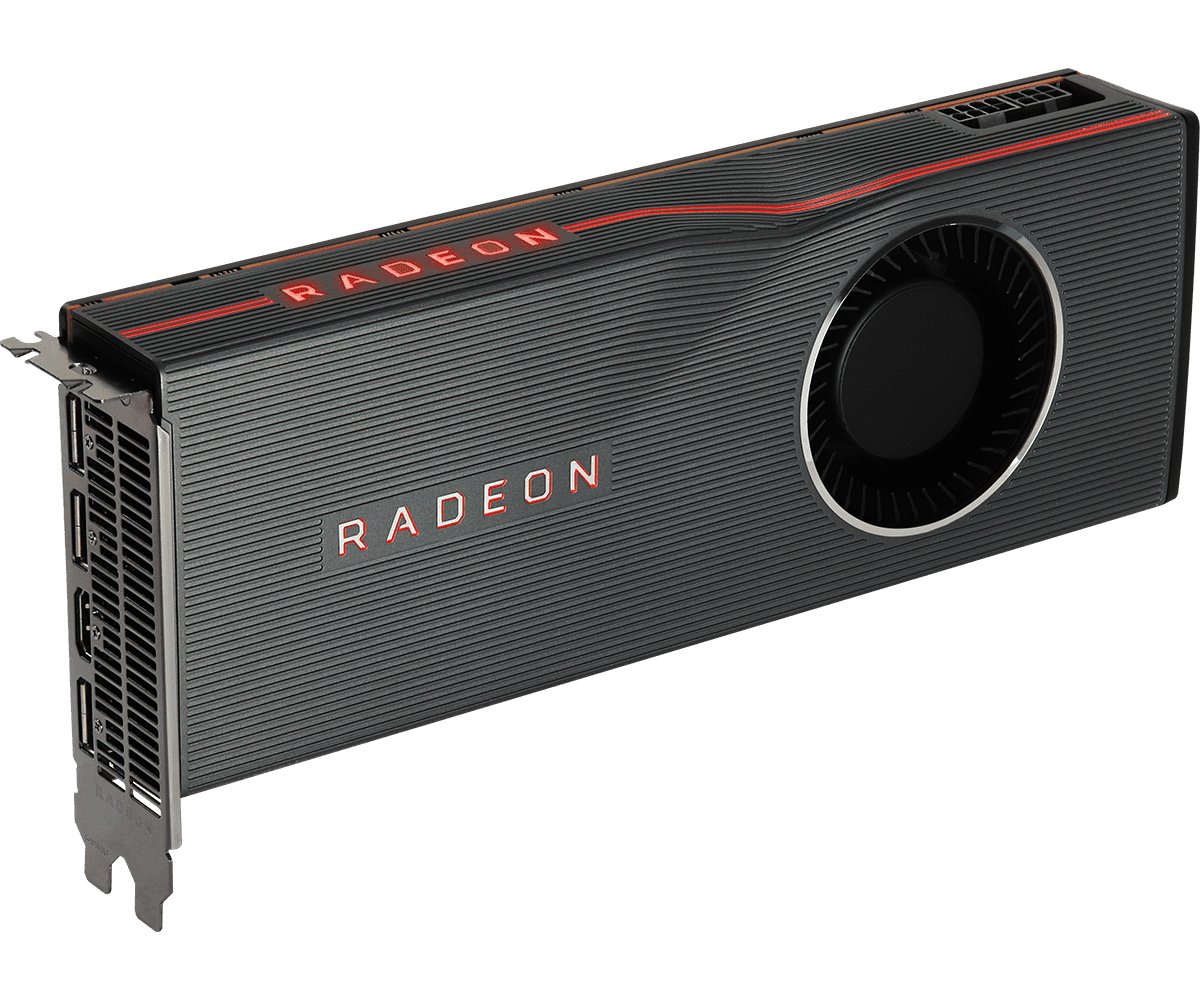

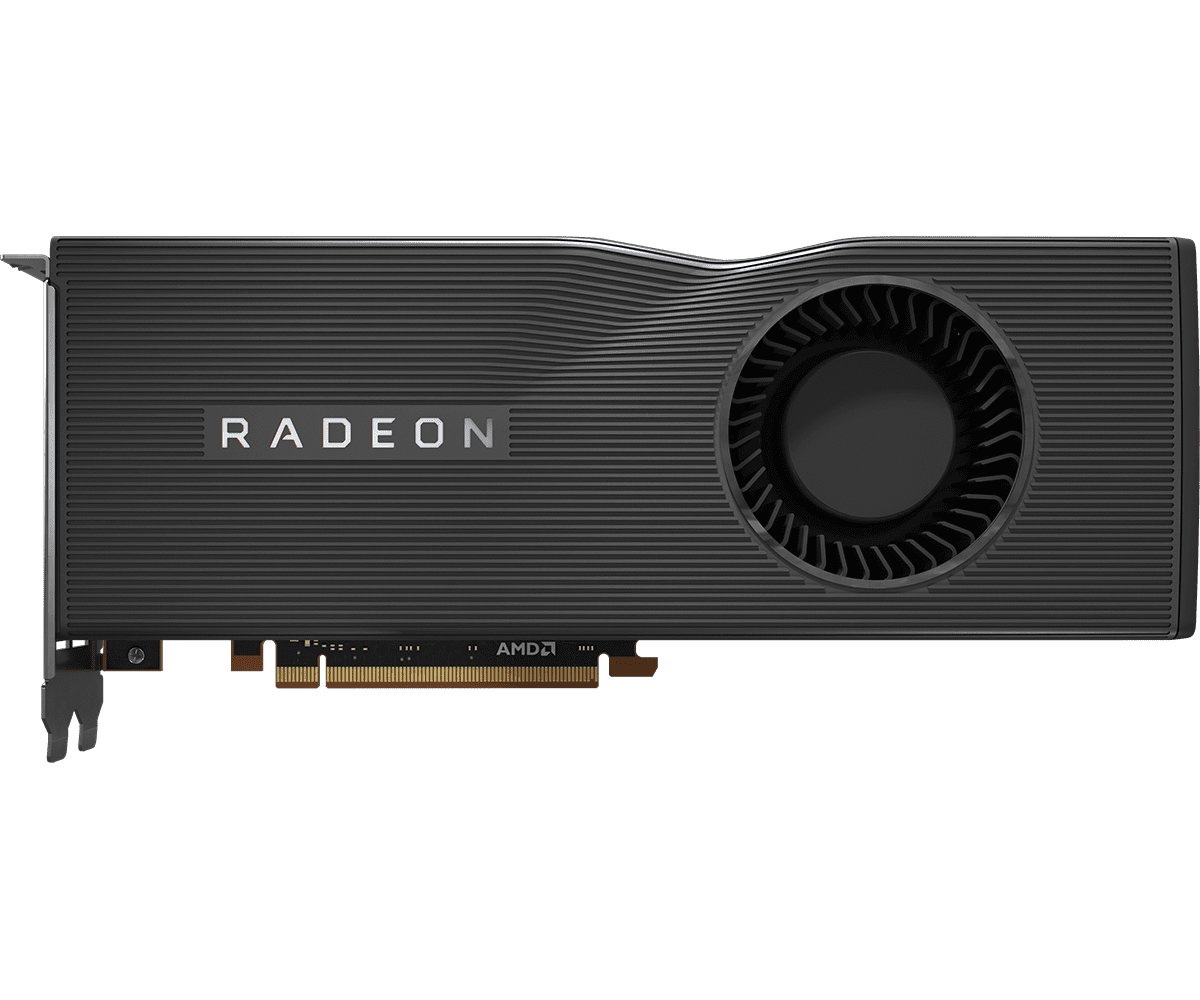

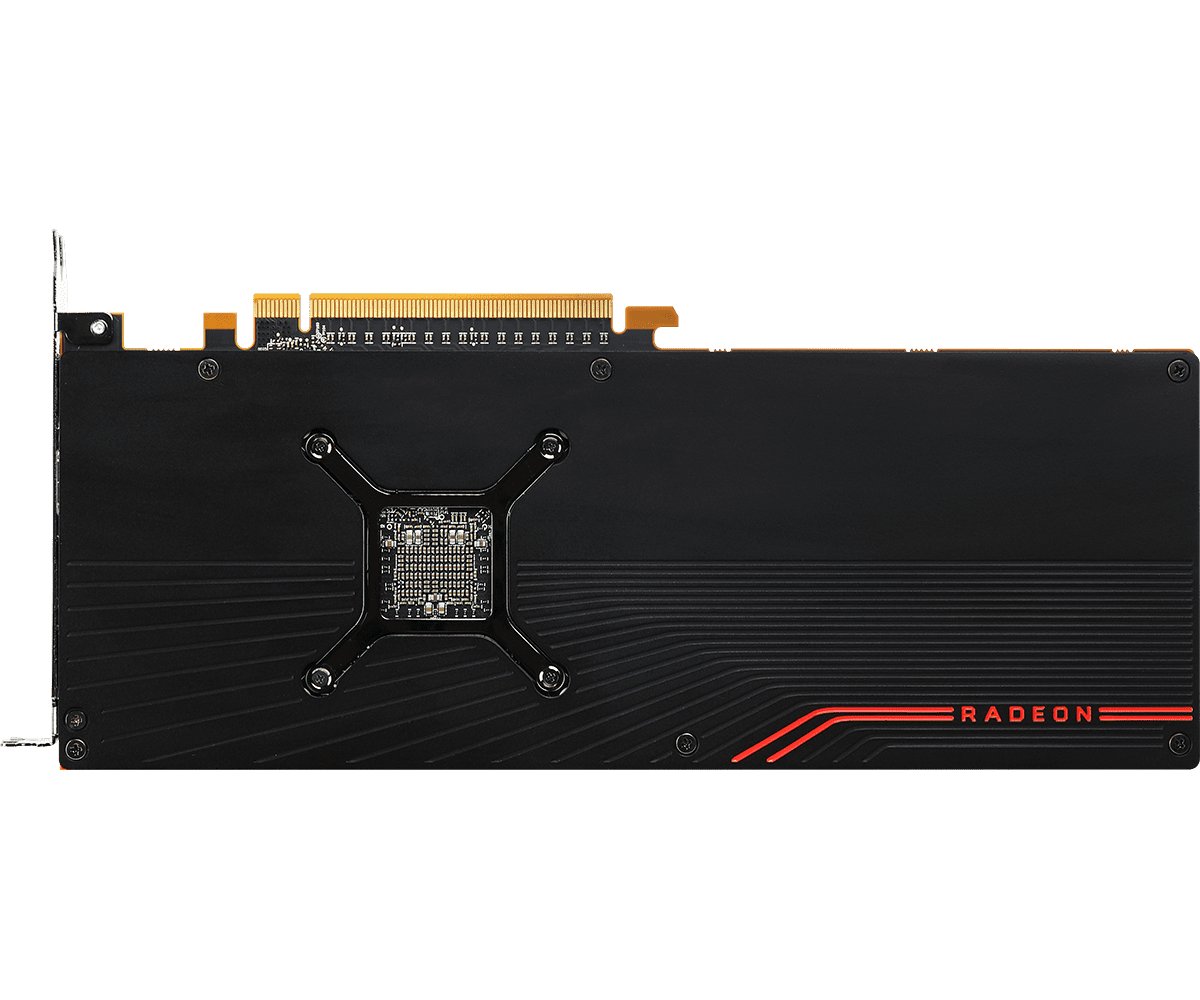

ASRock RX 5700 XT
RX 5000 · RX 5700 XT · RX 5700 XT
General
| Series | RX 5000 |
|---|---|
| Model | RX 5700 XT |
| Chip | RX 5700 XT |
| Launch Year | 2019 |
| Release Date | 7/7/2019 |
| Launch MSRP | $399 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 1.0 |
|---|---|
| GPU Die | Navi 10 (Navi 10 XT) |
| Foundry | TSMC · 7 nm |
| Transistors | 10.3 billion |
| Die Size | 251 mm² |
Cores
| Shading Units | 2560 |
|---|---|
| TMUs | 160 |
| ROPs | 64 |
| SM / CU | 40 |
| L2 Cache | 4 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 256-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 1605 MHz |
|---|---|
| Boost Clock | 1905 MHz |
| TDP | 225 W |
| Power Connector | 6-pin + 8-pin |
| Recommended PSU | 550 W |
Compute (TFLOPS)
| FP32 | 9.75 TFLOPS |
|---|---|
| FP16 | 19.51 TFLOPS |
| FP64 | 0.61 TFLOPS |

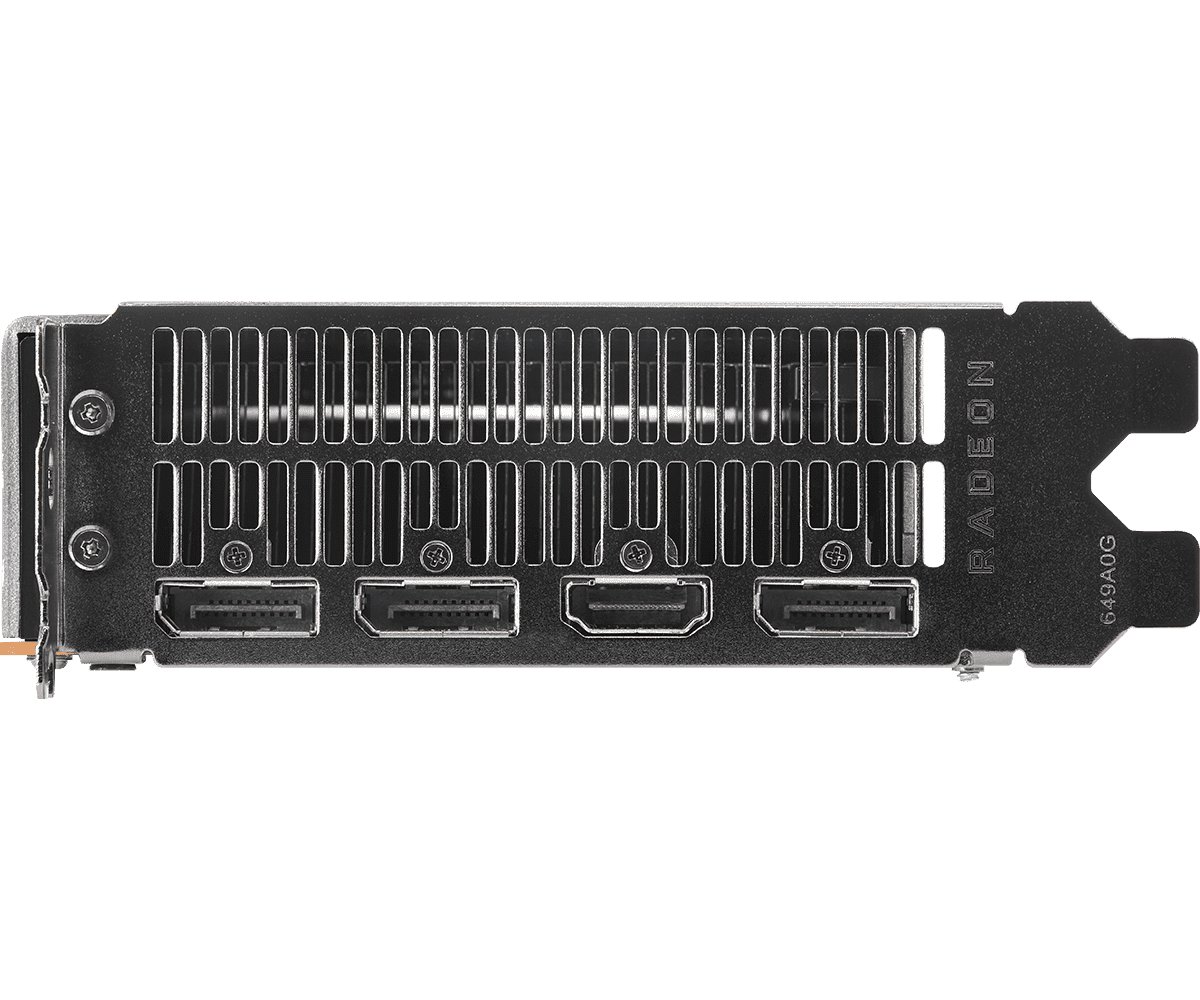

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 1 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 272 mm |
|---|---|
| Width | 36 mm |
| Height | 111 mm |
| Slot Width | 2 slot |
| Weight | 1100 g |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
