ASRock RX 7900 XT Creator

RX 7000 · RX 7900 XT Creator · RX 7900 XT

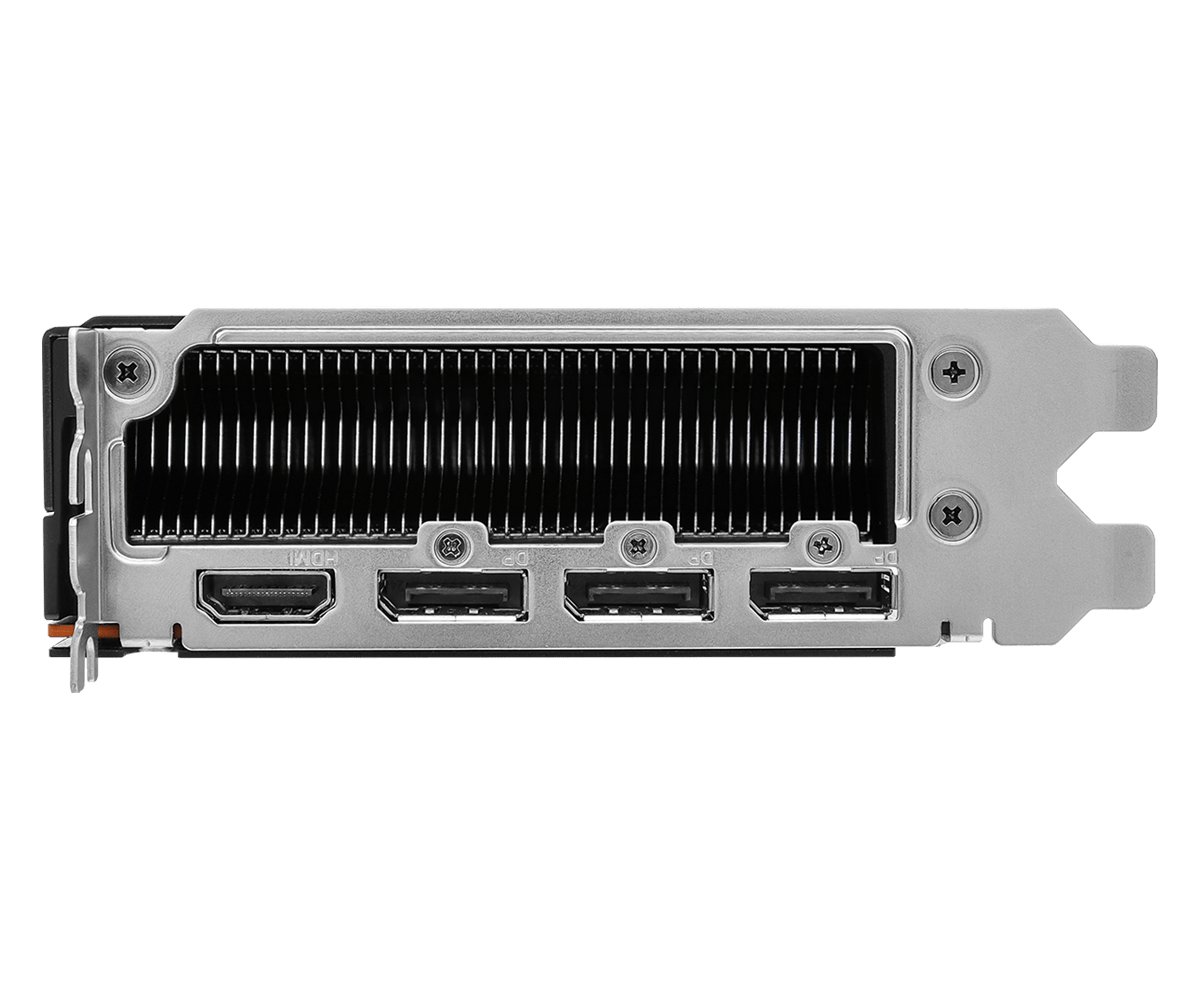

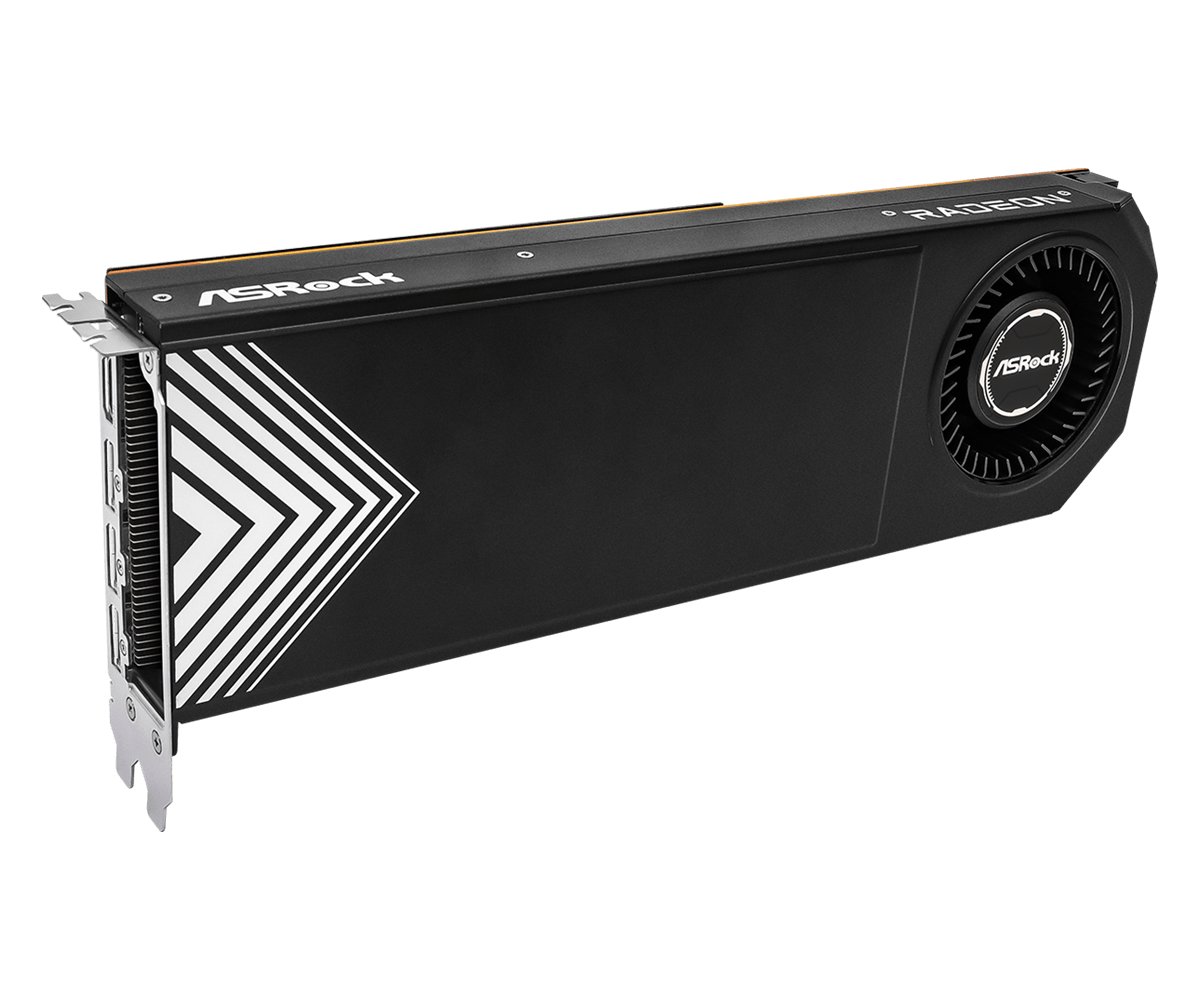

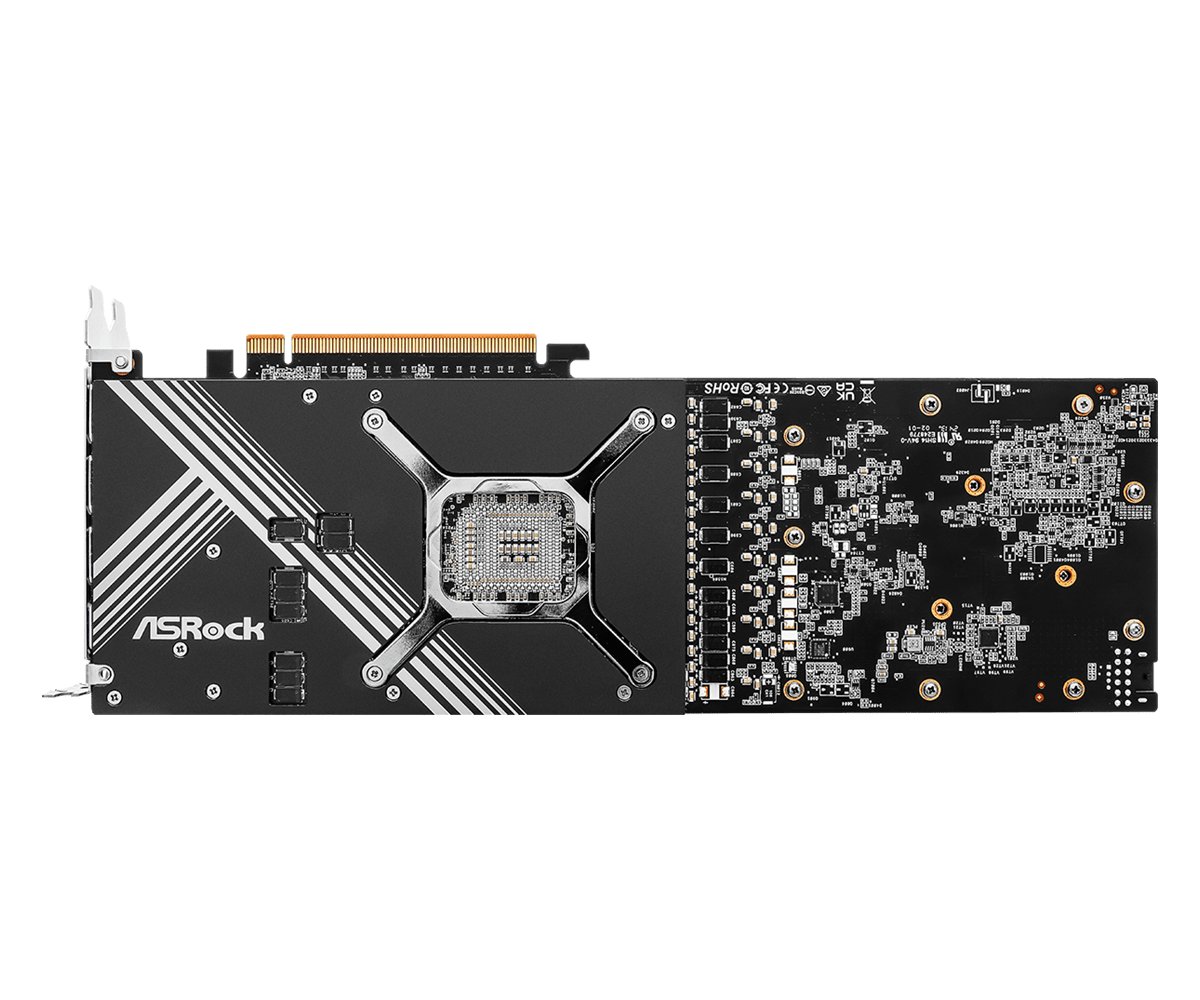

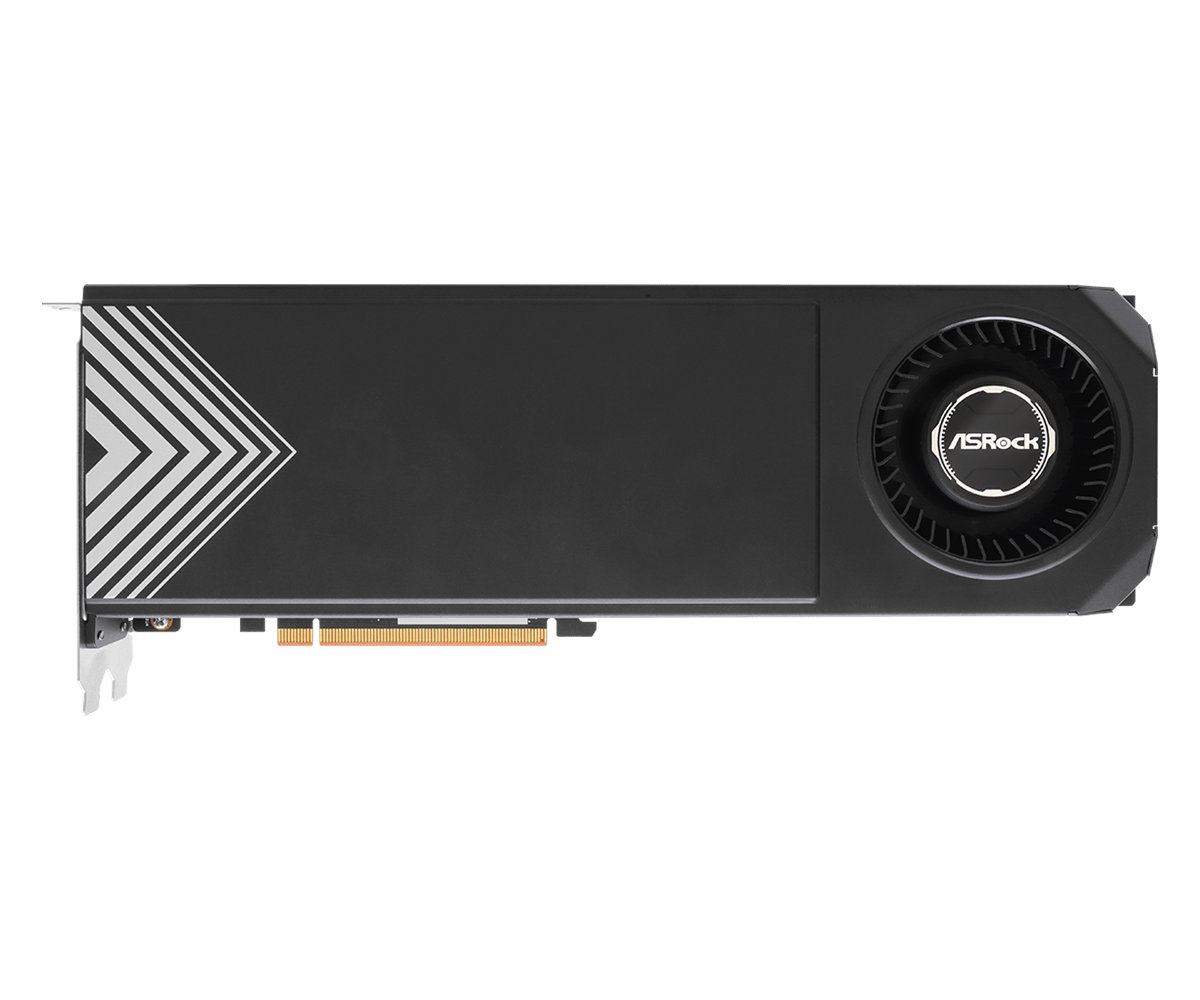

ASRock RX 7900 XT Creator product image
ASRock RX 7900 XT Creator product image 1ASRock RX 7900 XT Creator product image 2ASRock RX 7900 XT Creator product image 3ASRock RX 7900 XT Creator product image 4

General

SeriesRX 7000
ModelRX 7900 XT Creator
ChipRX 7900 XT
Launch Year2023
Release Date11/3/2022
Launch MSRP$899
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureRDNA 3.0
GPU DieNavi 31 (Navi 31 XT)
FoundryTSMC · 5 nm
Transistors57.7 billion
Die Size529 mm²

Cores

Shading Units5376
TMUs336
ROPs192
SM / CU84
Tensor Cores168
RT Cores84
L2 Cache6 MB

Memory

VRAM20 GB
Memory TypeGDDR6
Memory Bus320-bit
Memory Speed20 Gbps

Clocks and Power

Base Clock1500 MHz
Boost Clock2394 MHz
TDP315 W
Power Connector12V-2x6
Recommended PSU700 W

Compute (TFLOPS)

FP3251.48 TFLOPS
FP16103 TFLOPS
FP641.61 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count1
Liquid Cooling✗ No

Physical

Length312 mm
Width39 mm
Height111 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenCL 2.2
OpenGL 4.6
Shader Model 6.8
Hardware EncoderVCN 4.0
Encoding
AV1
H.265
H.264
Decoding
AV1
H.265
H.264
VP9
