ASRock RX 9060 Challenger

RX 9000 · RX 9060 Challenger · RX 9060

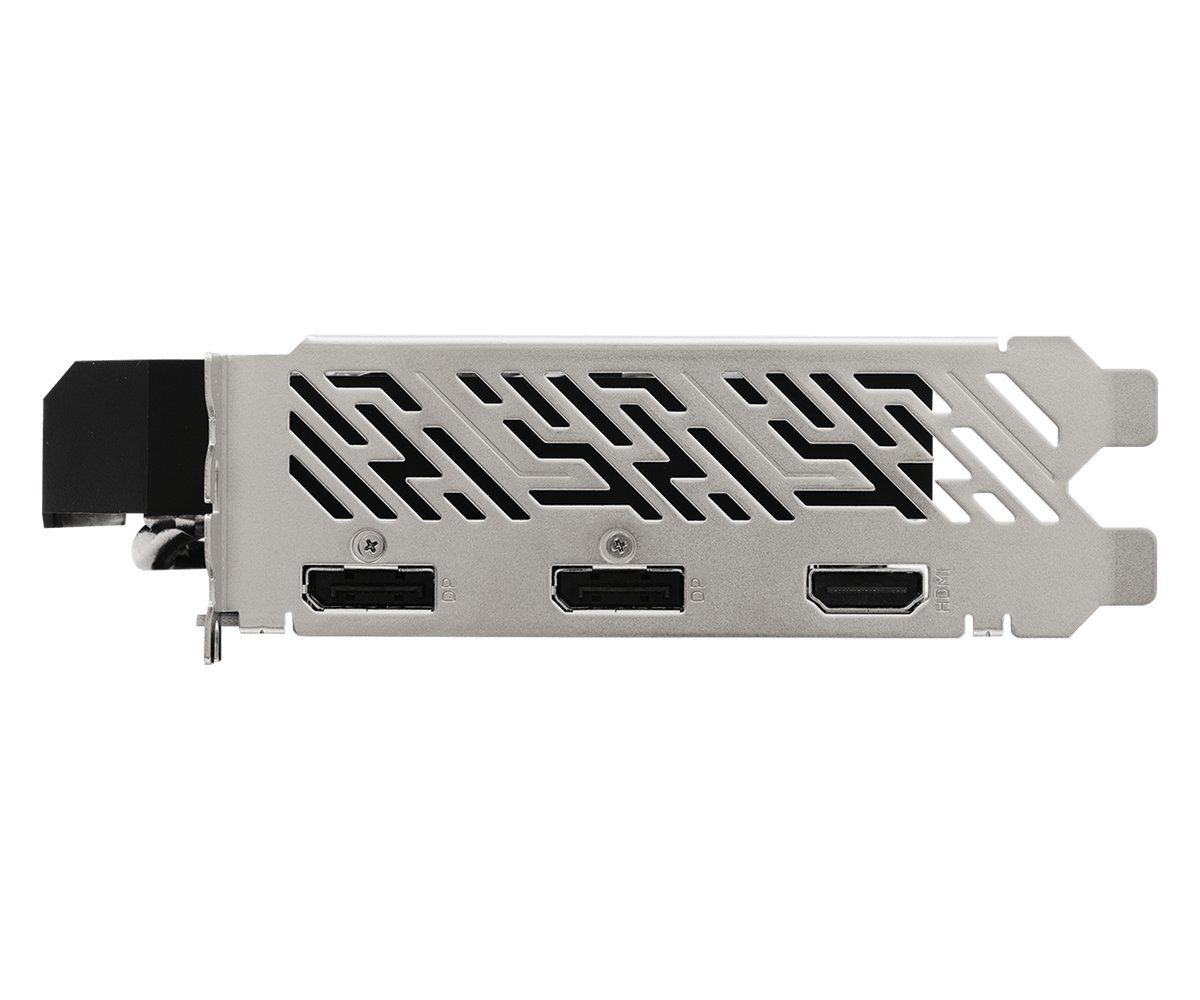

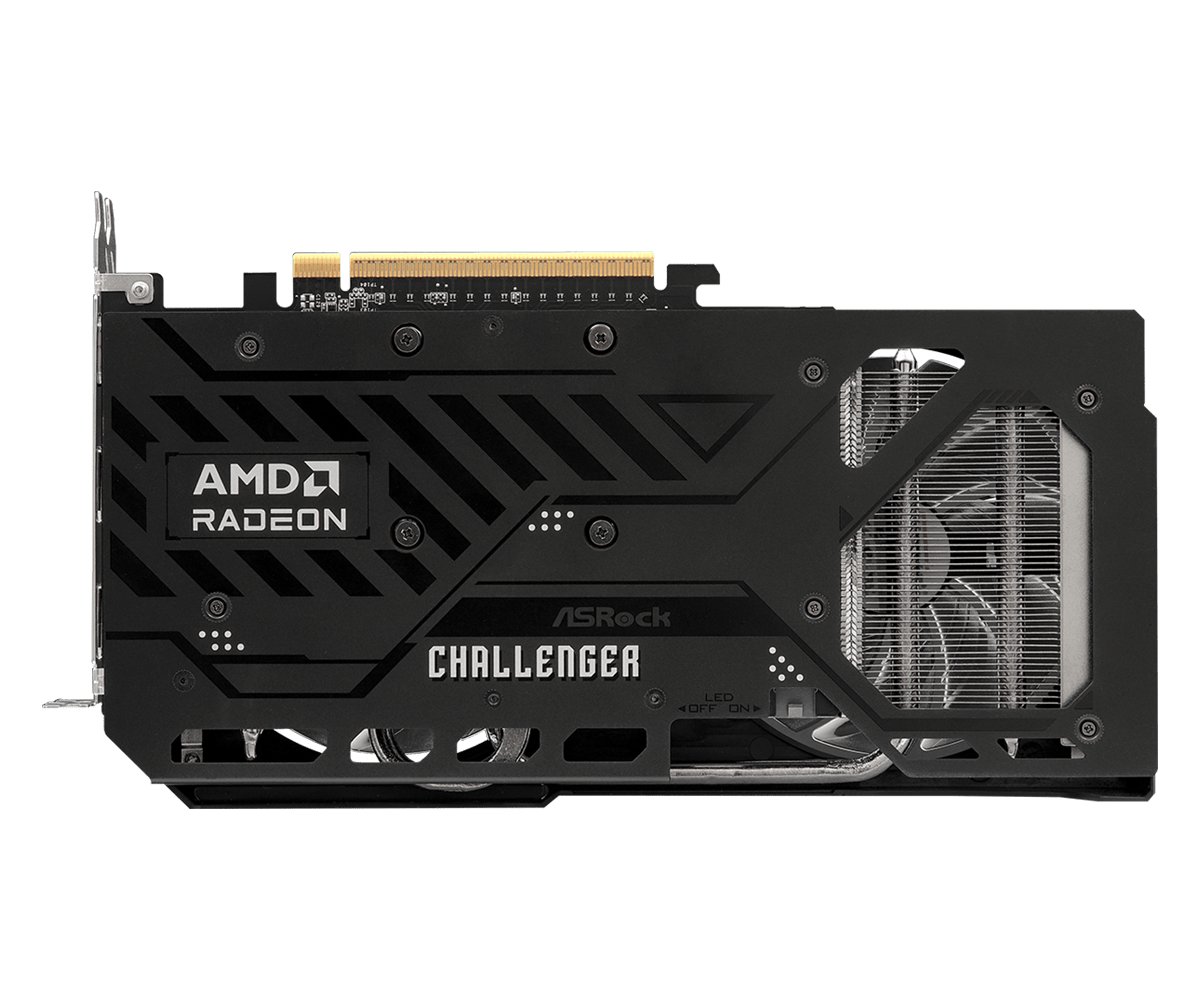

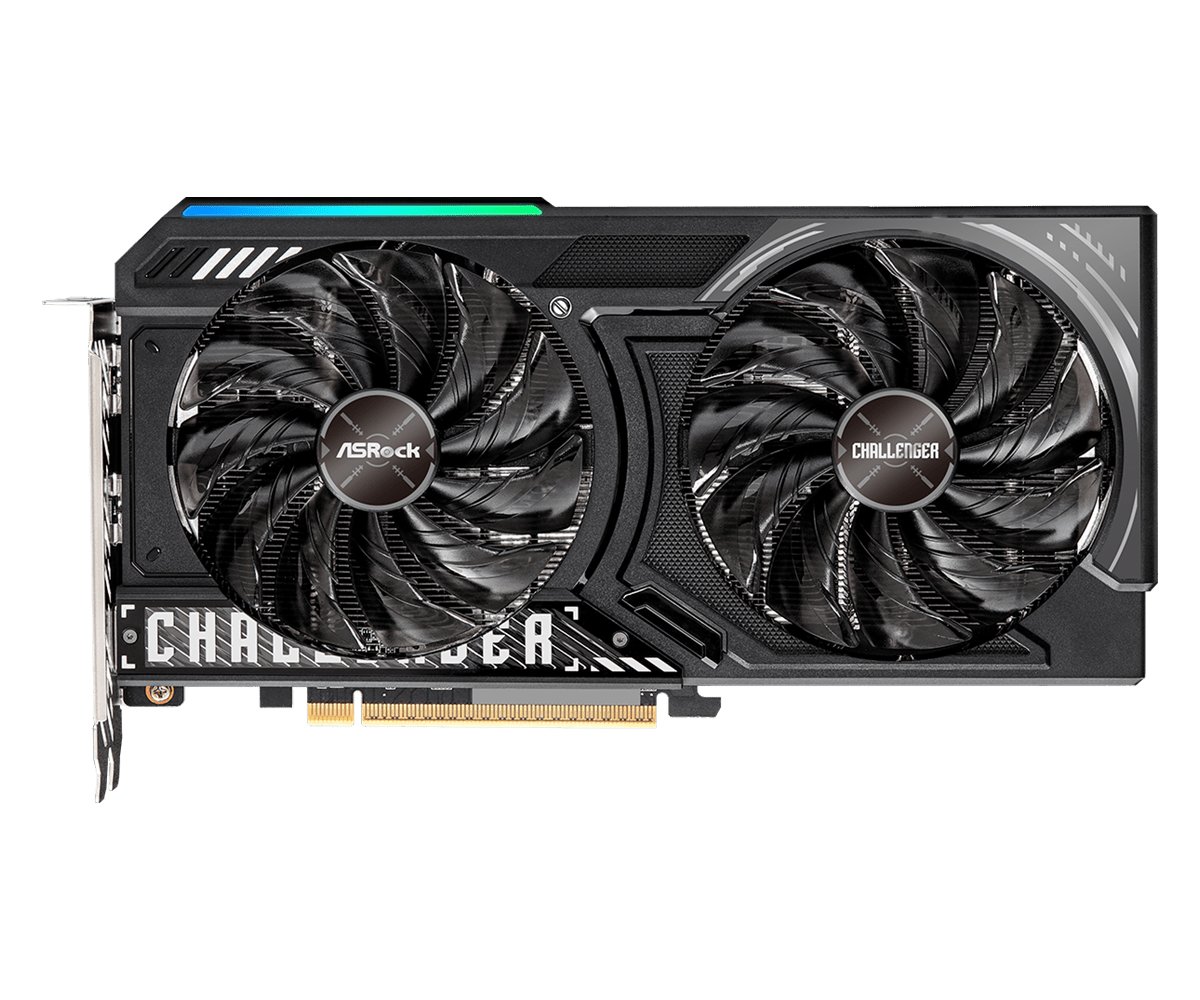

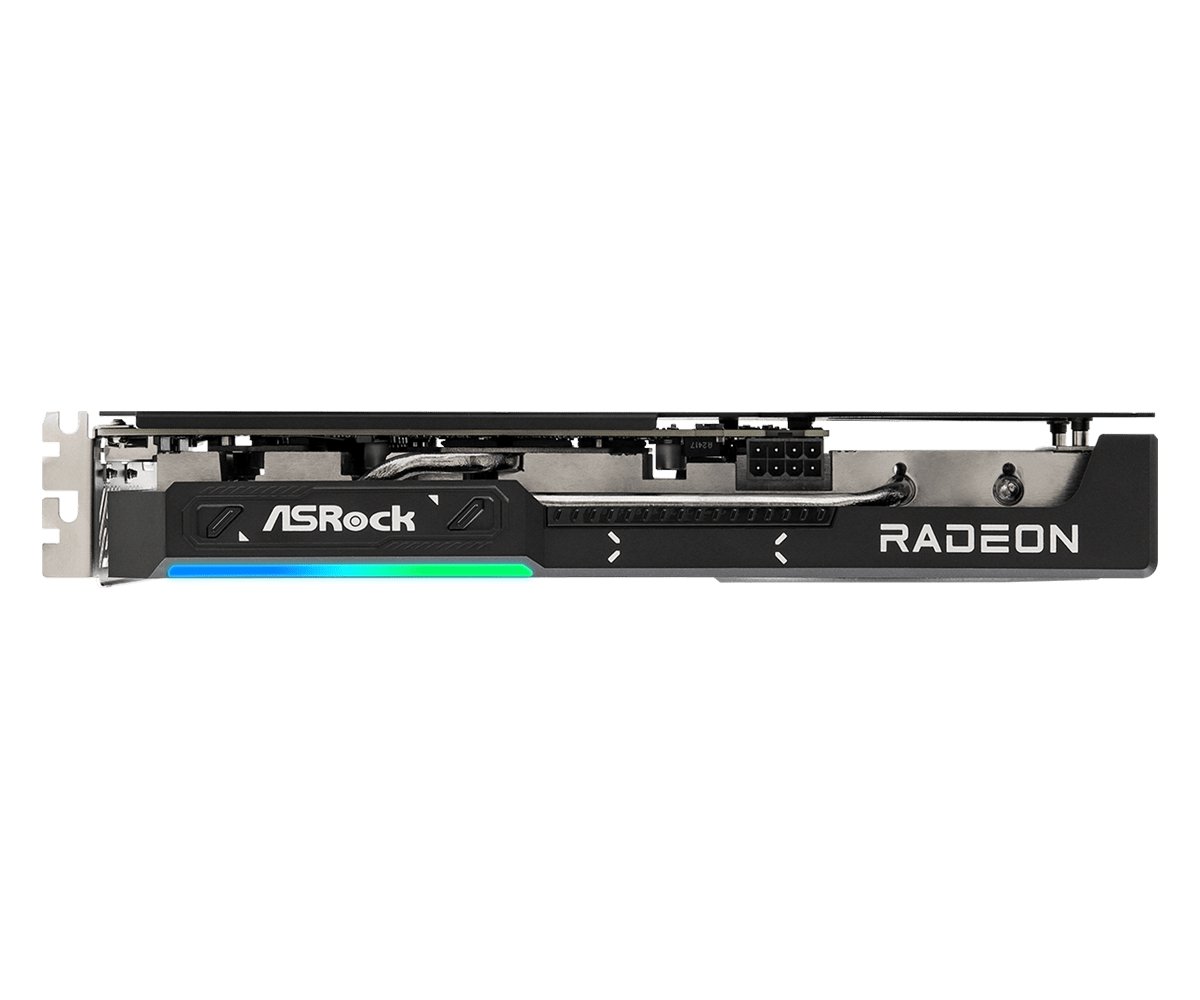

ASRock RX 9060 Challenger product image
ASRock RX 9060 Challenger product image 1ASRock RX 9060 Challenger product image 2ASRock RX 9060 Challenger product image 3ASRock RX 9060 Challenger product image 4

General

SeriesRX 9000
ModelRX 9060 Challenger
ChipRX 9060
Launch Year2025
Release Date8/5/2025
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureRDNA 4.0
GPU DieNavi 44 (Navi 44 XL)
FoundryTSMC · 4 nm
Transistors29.7 billion
Die Size199 mm²

Cores

Shading Units1792
TMUs112
ROPs64
SM / CU28
Tensor Cores56
RT Cores28
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed18 Gbps

Clocks and Power

Base Clock2200 MHz
Boost Clock2990 MHz
TDP150 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP3221.43 TFLOPS
FP1642.86 TFLOPS
FP640.67 TFLOPS

Display Outputs

HDMI1×
DisplayPort2×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length249 mm
Width41 mm
Height132 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenCL 2.2
OpenGL 4.6
Shader Model 6.8
Hardware EncoderVCN 5.0
Encoding
AV1
H.265
H.264
Decoding
AV1
H.265
H.264
