ASUS ATS RTX 4060 Ti GAMING MEGALODON

RTX 40 · ATS RTX 4060 Ti GAMING MEGALODON · RTX 4060 Ti

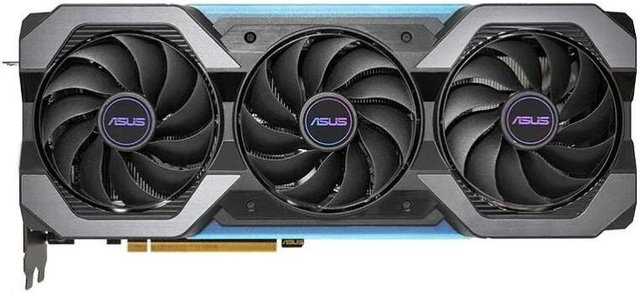

ASUS ATS RTX 4060 Ti GAMING MEGALODON product image

General

SeriesRTX 40
ModelATS RTX 4060 Ti GAMING MEGALODON
ChipRTX 4060 Ti
Launch Year2023
Release Date5/24/2023
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAda Lovelace
GPU DieAD106 (AD106-350-A1)
FoundryTSMC · 5 nm
Transistors22.9 billion
Die Size188 mm²

Cores

Shading Units4352
TMUs136
ROPs48
SM / CU34
Tensor Cores136
RT Cores34
L2 Cache32 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed18 Gbps

Clocks and Power

Base Clock2310 MHz
Boost Clock2535 MHz
TDP160 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3222.06 TFLOPS
FP1622.06 TFLOPS
FP640.34 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length317 mm
Width54 mm
Height136 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.9
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (8th Gen, max 8 sessions)
1x NVDEC (5th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10/12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
