ASUS DUAL RTX 3070 SI

RTX 30 · DUAL RTX 3070 SI · RTX 3070

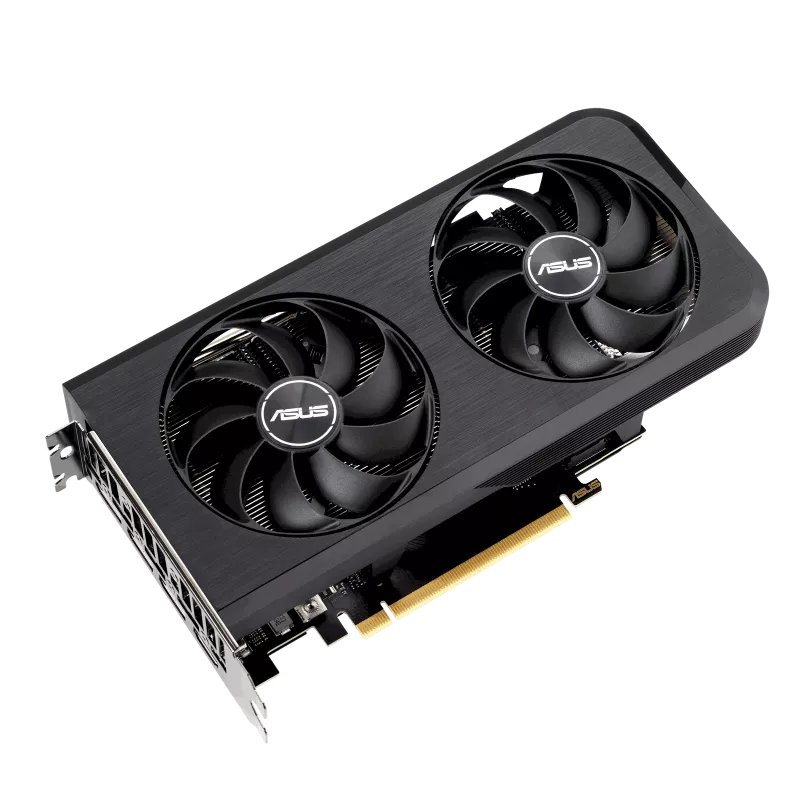

ASUS DUAL RTX 3070 SI product image

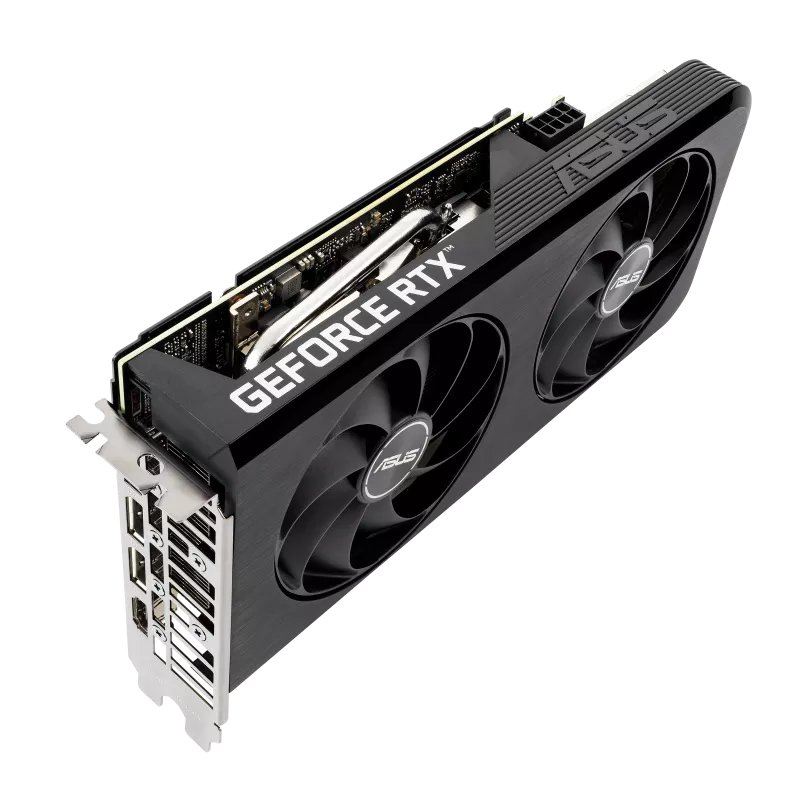

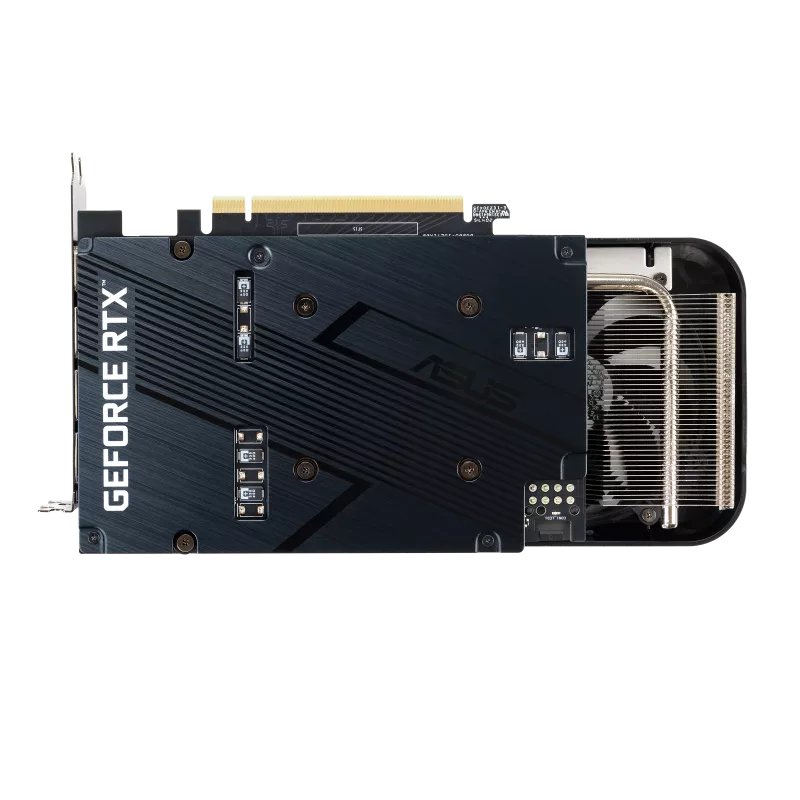

ASUS DUAL RTX 3070 SI product image 1ASUS DUAL RTX 3070 SI product image 2ASUS DUAL RTX 3070 SI product image 3ASUS DUAL RTX 3070 SI product image 4

General

SeriesRTX 30
ModelDUAL RTX 3070 SI
ChipRTX 3070
Launch Year2020
Release Date9/1/2020
Launch MSRP$499
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAmpere
GPU DieGA104 (GA104-300-A1 / GA104-302-A1)
FoundrySamsung · 8 nm
Transistors17.4 billion
Die Size392 mm²

Cores

Shading Units5888
TMUs184
ROPs96
SM / CU46
Tensor Cores184
RT Cores46
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1500 MHz
Boost Clock1725 MHz
TDP220 W
Power Connector8-pin
Recommended PSU550 W

Compute (TFLOPS)

FP3220.31 TFLOPS
FP1620.31 TFLOPS
FP640.32 TFLOPS

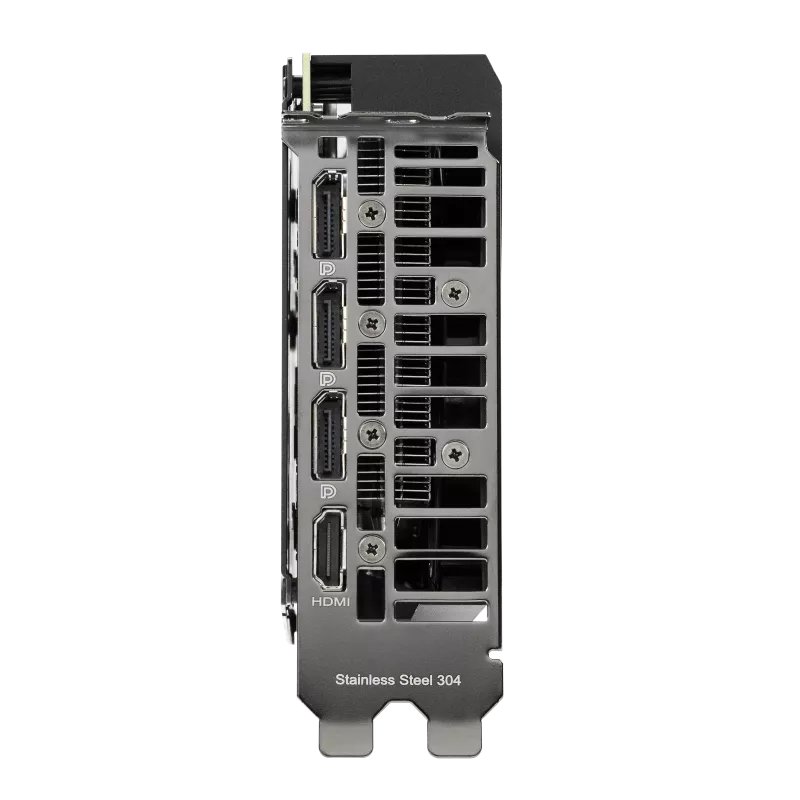

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length229 mm
Width42 mm
Height120 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.6
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (7th Gen, max. Sessions: 8)
1x NVDEC (5th Gen)
Encoding
H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit)
H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8bit / 10bit / 12bit)
VP8
VC-1
MPEG-2
MPEG-1
