ASUS DUAL RX 460
RX 400 · DUAL RX 460 · RX 460
General
| Series | RX 400 |
|---|---|
| Model | DUAL RX 460 |
| Chip | RX 460 |
| Launch Year | 2016 |
| Release Date | 8/8/2016 |
| Launch MSRP | $139 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | GCN 4.0 |
|---|---|
| GPU Die | Baffin (Baffin PRO) |
| Foundry | GlobalFoundries · 14 nm |
| Transistors | 3.0 billion |
| Die Size | 123 mm² |
Cores
| Shading Units | 896 |
|---|---|
| TMUs | 56 |
| ROPs | 16 |
| SM / CU | 14 |
| L2 Cache | 1 MB |
Memory
| VRAM | 2 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 128-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 1090 MHz |
|---|---|
| Boost Clock | 1200 MHz |
| TDP | 75 W |
| Recommended PSU | 300 W |
Compute (TFLOPS)
| FP32 | 2.15 TFLOPS |
|---|---|
| FP16 | 2.15 TFLOPS |
| FP64 | 0.13 TFLOPS |

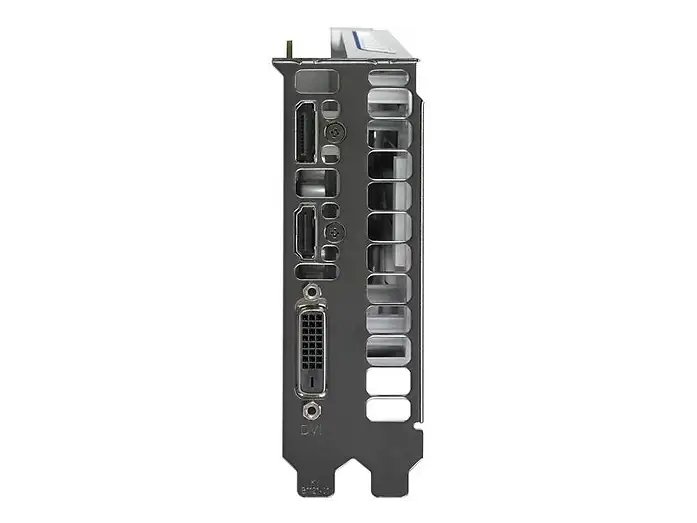

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
| DVI | 1× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 203 mm |
|---|---|
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x8 |
Software and Technologies
| API Support | DirectX 12 (12_0) Vulkan 1.3 OpenCL 2.1 OpenGL 4.6 Shader Model 6.7 |
|---|
