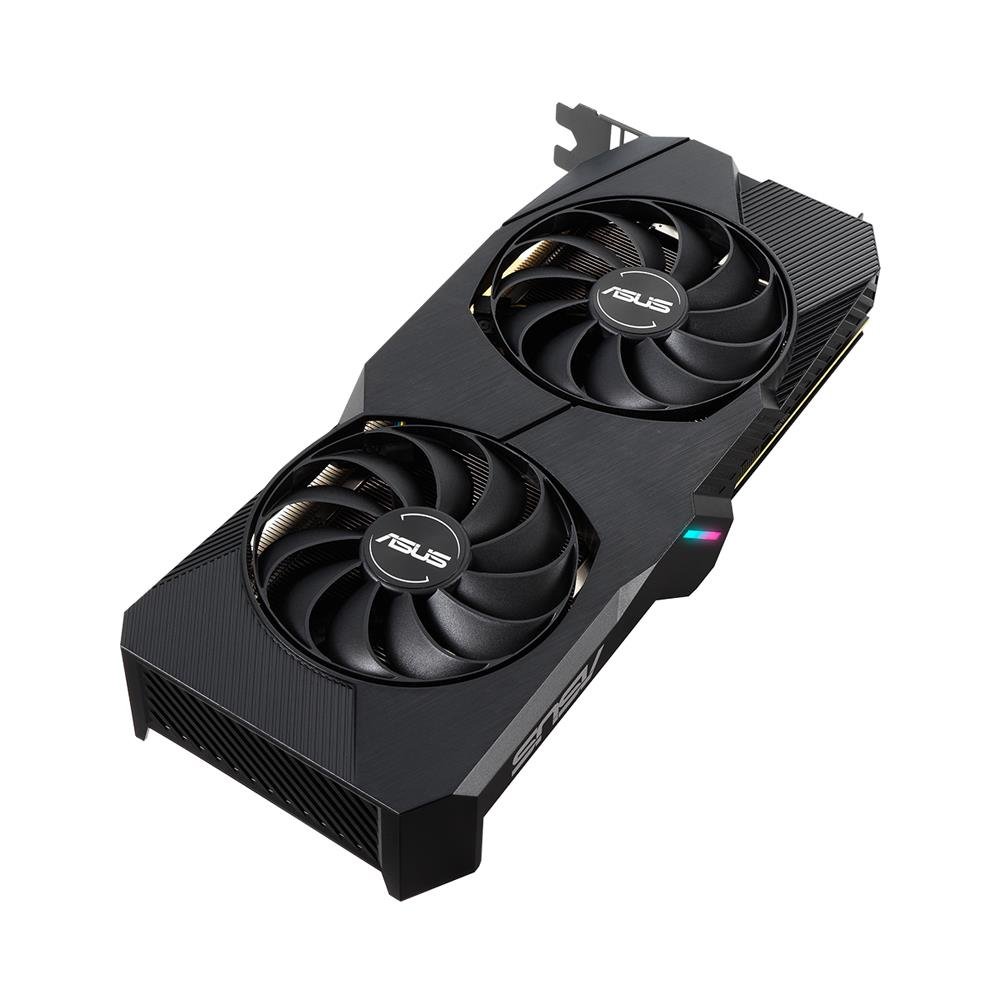

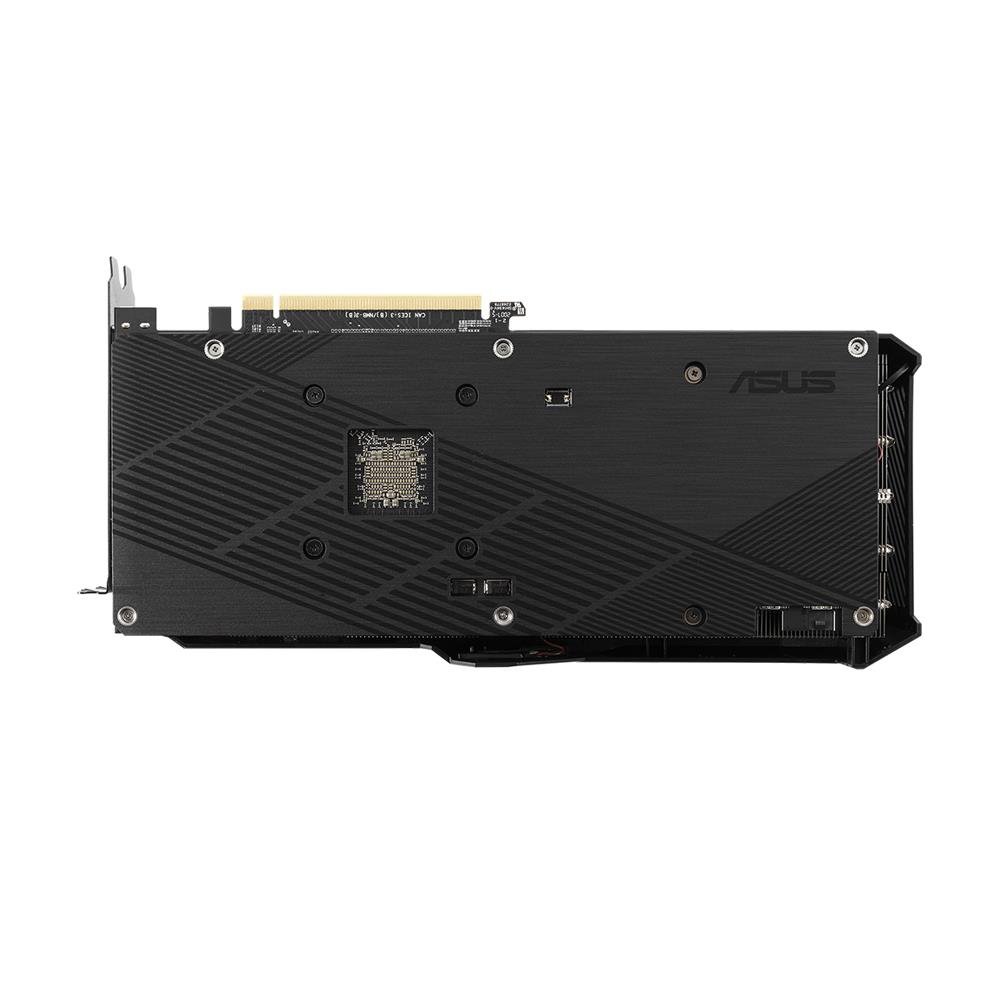

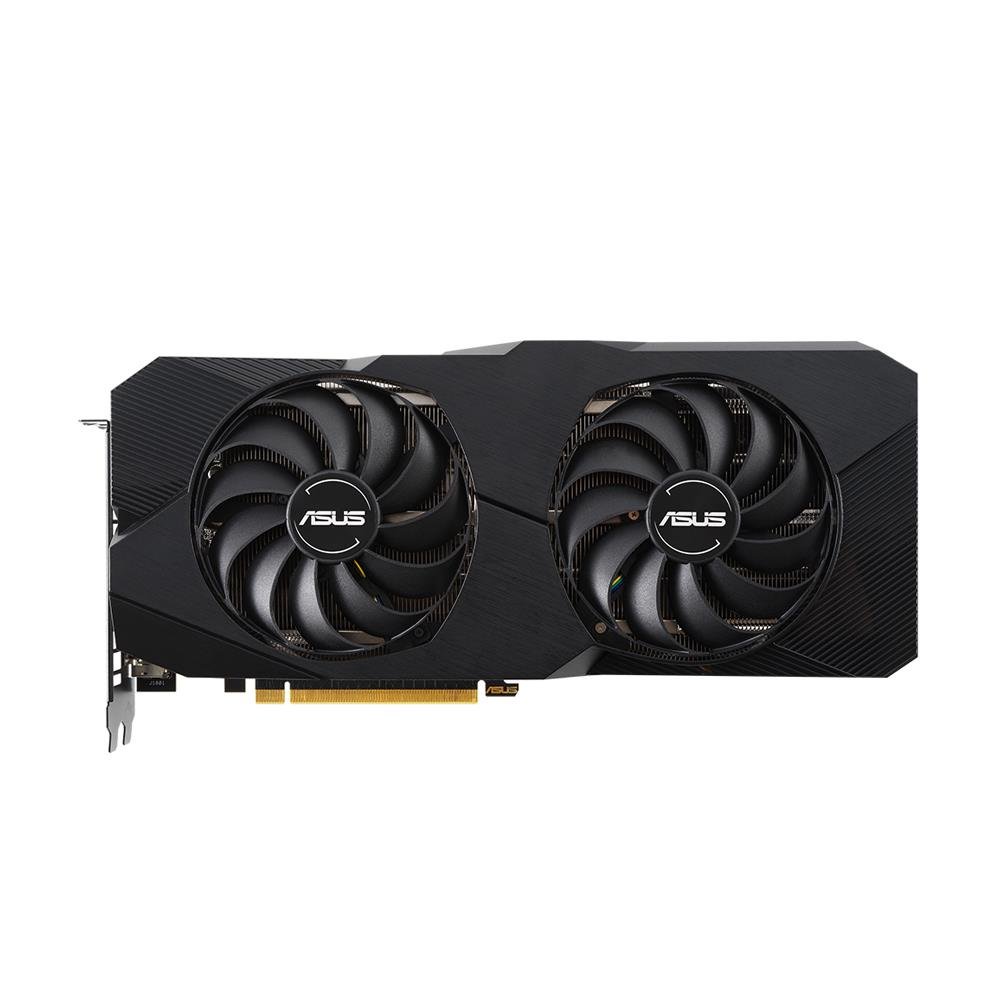

ASUS DUAL RX 5600 XT EVO TOP
RX 5000 · DUAL RX 5600 XT EVO TOP · RX 5600 XT
General
| Series | RX 5000 |
|---|---|
| Model | DUAL RX 5600 XT EVO TOP |
| Chip | RX 5600 XT |
| Launch Year | 2020 |
| Release Date | 1/21/2020 |
| Launch MSRP | $279 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 1.0 |
|---|---|
| GPU Die | Navi 10 (Navi 10 XLE) |
| Foundry | TSMC · 7 nm |
| Transistors | 10.3 billion |
| Die Size | 251 mm² |
Cores
| Shading Units | 2304 |
|---|---|
| TMUs | 144 |
| ROPs | 64 |
| SM / CU | 36 |
| L2 Cache | 3 MB |
Memory
| VRAM | 6 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 192-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 1400 MHz |
|---|---|
| Boost Clock | 1750 MHz |
| TDP | 150 W |
| Power Connector | 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 8.06 TFLOPS |
|---|---|
| FP16 | 16.13 TFLOPS |
| FP64 | 0.5 TFLOPS |

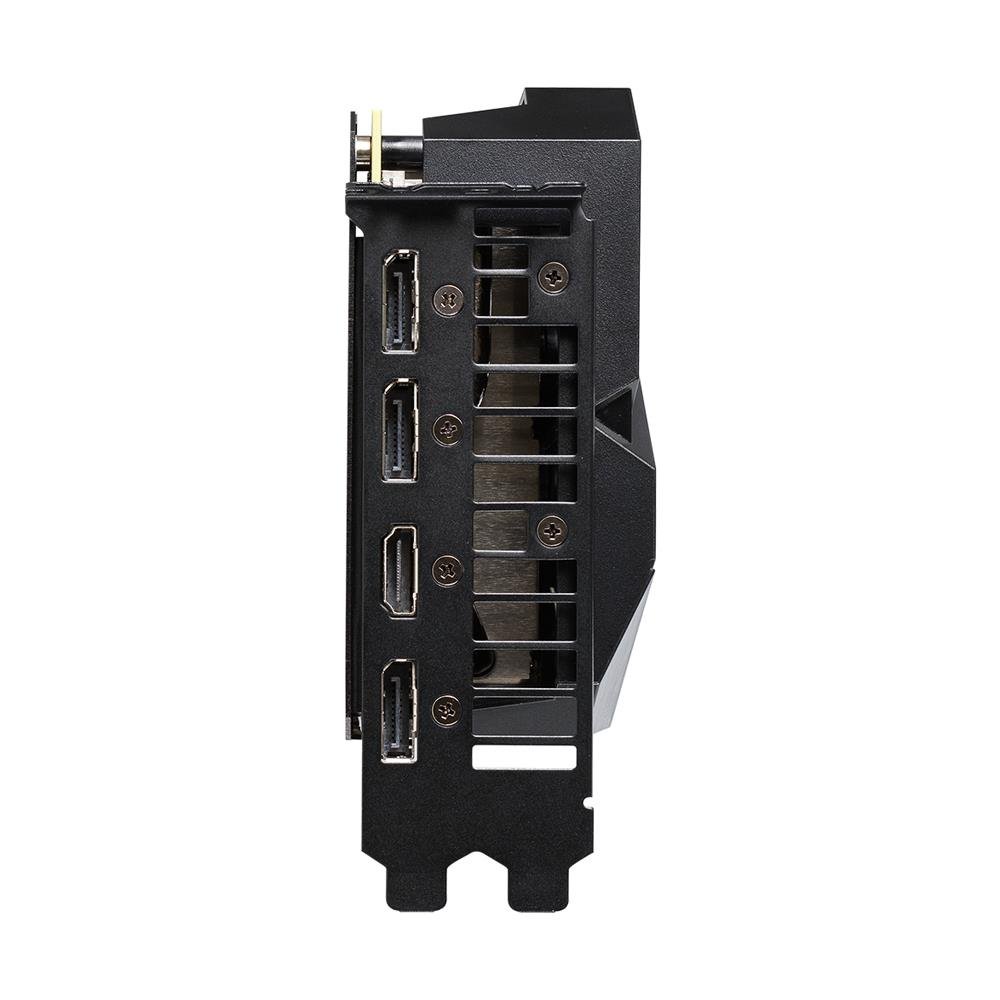

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 283 mm |
|---|---|
| Width | 52 mm |
| Height | 132 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
