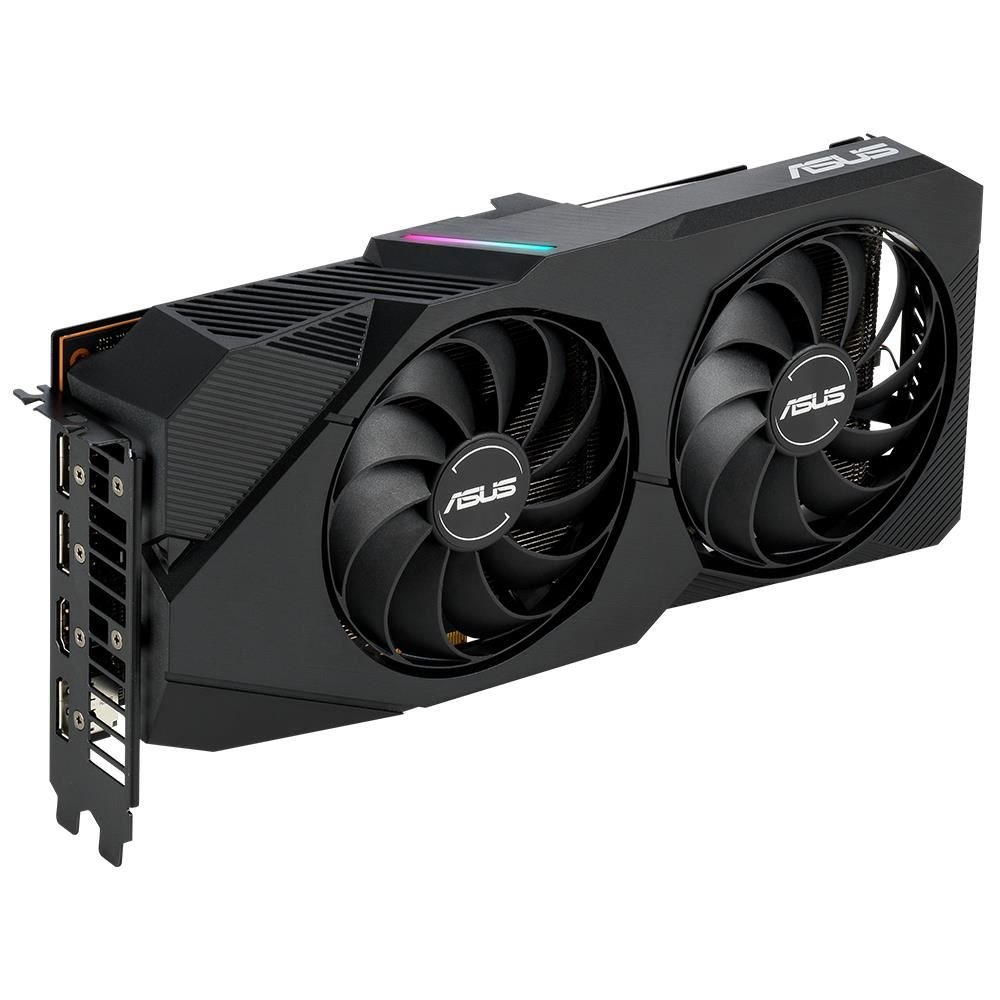

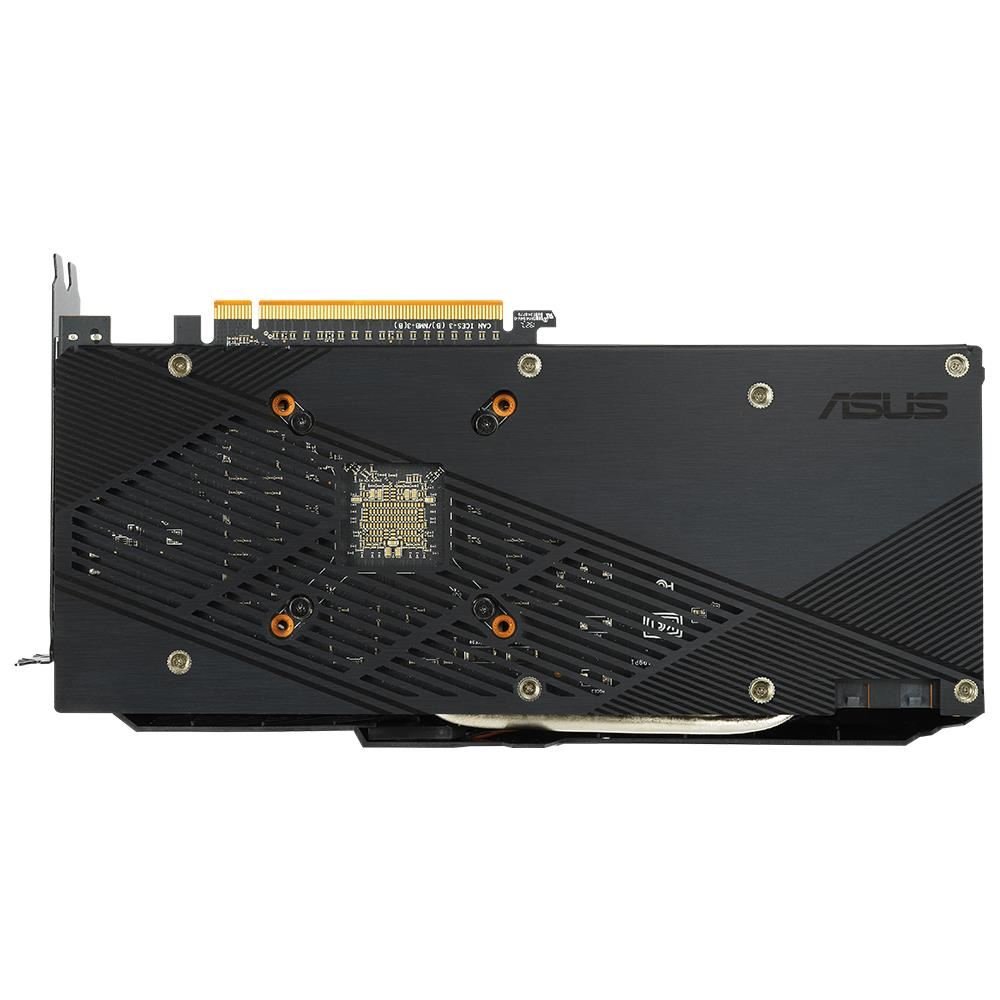

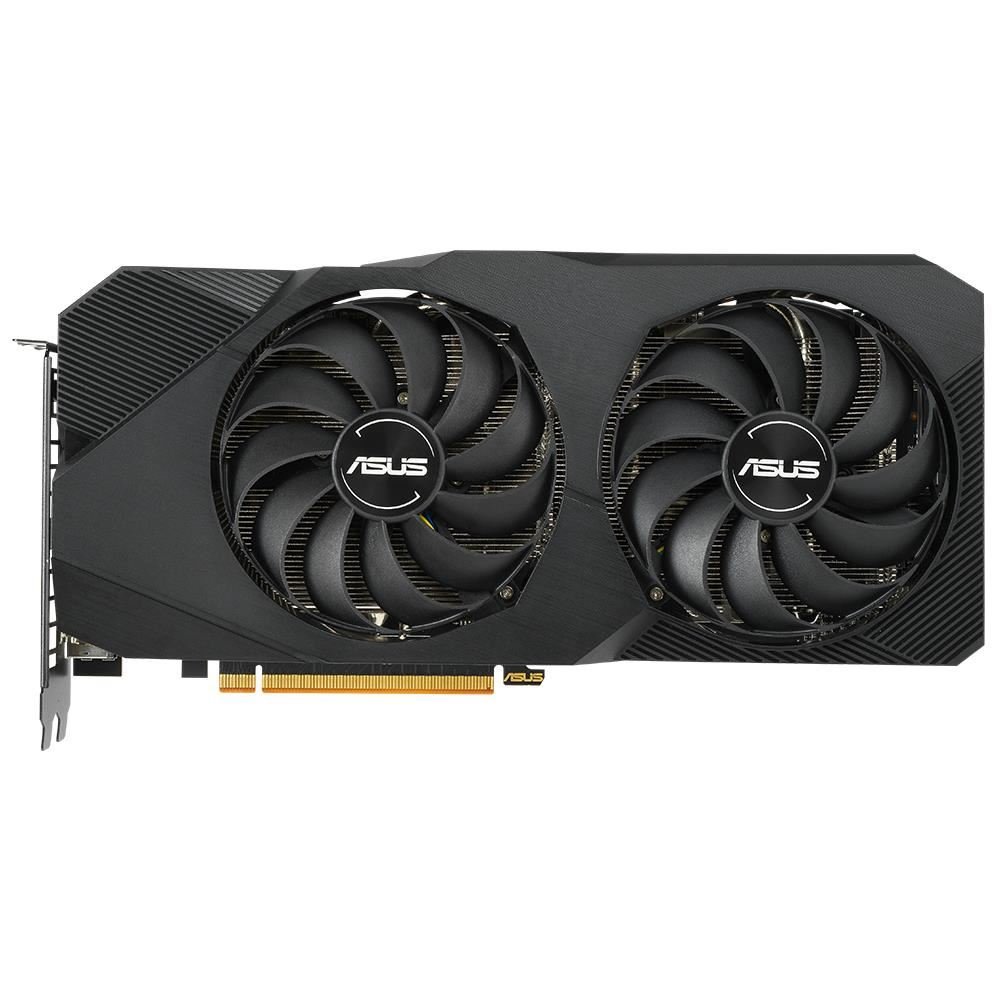

ASUS DUAL RX 5700 EVO OC
RX 5000 · DUAL RX 5700 EVO OC · RX 5700
General
| Series | RX 5000 |
|---|---|
| Model | DUAL RX 5700 EVO OC |
| Chip | RX 5700 |
| Launch Year | 2019 |
| Release Date | 7/7/2019 |
| Launch MSRP | $349 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 1.0 |
|---|---|
| GPU Die | Navi 10 (Navi 10 XL) |
| Foundry | TSMC · 7 nm |
| Transistors | 10.3 billion |
| Die Size | 251 mm² |
Cores
| Shading Units | 2304 |
|---|---|
| TMUs | 144 |
| ROPs | 64 |
| SM / CU | 36 |
| L2 Cache | 4 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 256-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 1515 MHz |
|---|---|
| Boost Clock | 1750 MHz |
| TDP | 180 W |
| Power Connector | 6-pin + 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 7.95 TFLOPS |
|---|---|
| FP16 | 15.9 TFLOPS |
| FP64 | 0.5 TFLOPS |

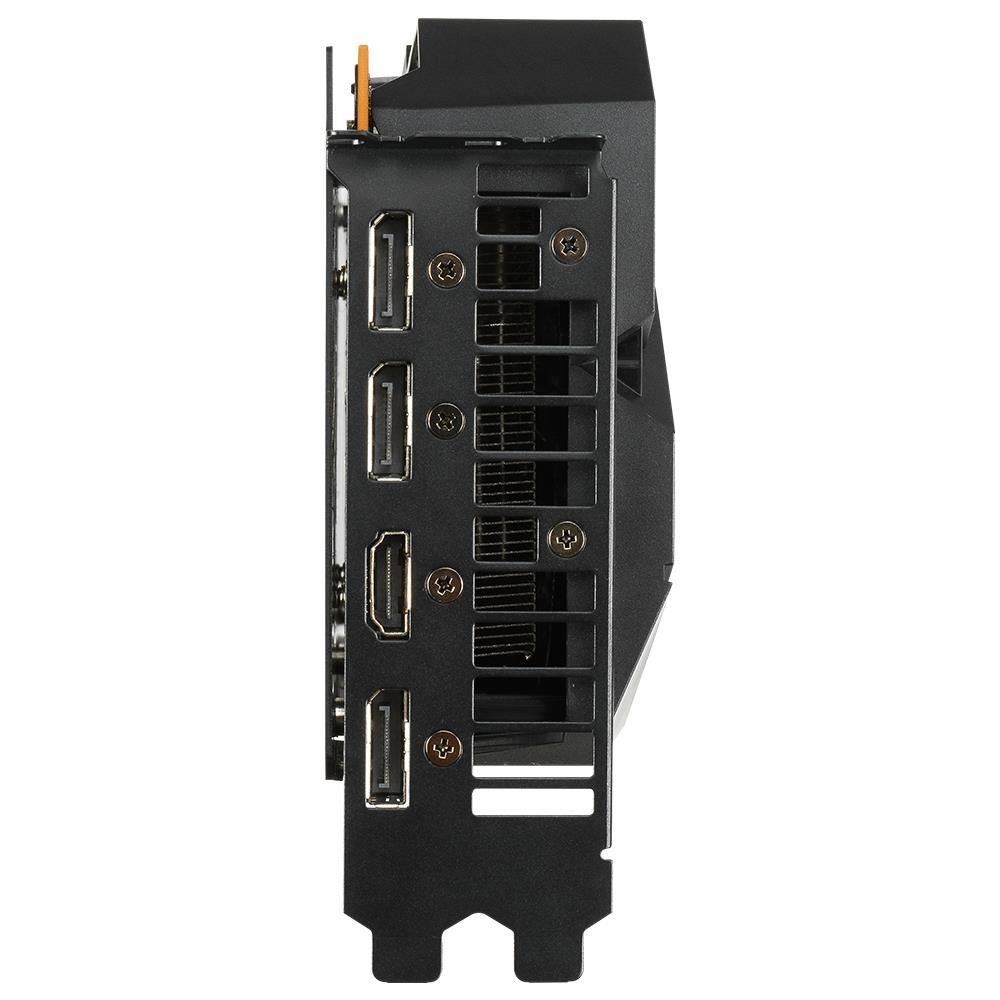

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 271 mm |
|---|---|
| Width | 51 mm |
| Height | 132 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
