ASUS DUAL RX 6600

RX 6000 · DUAL RX 6600 · RX 6600

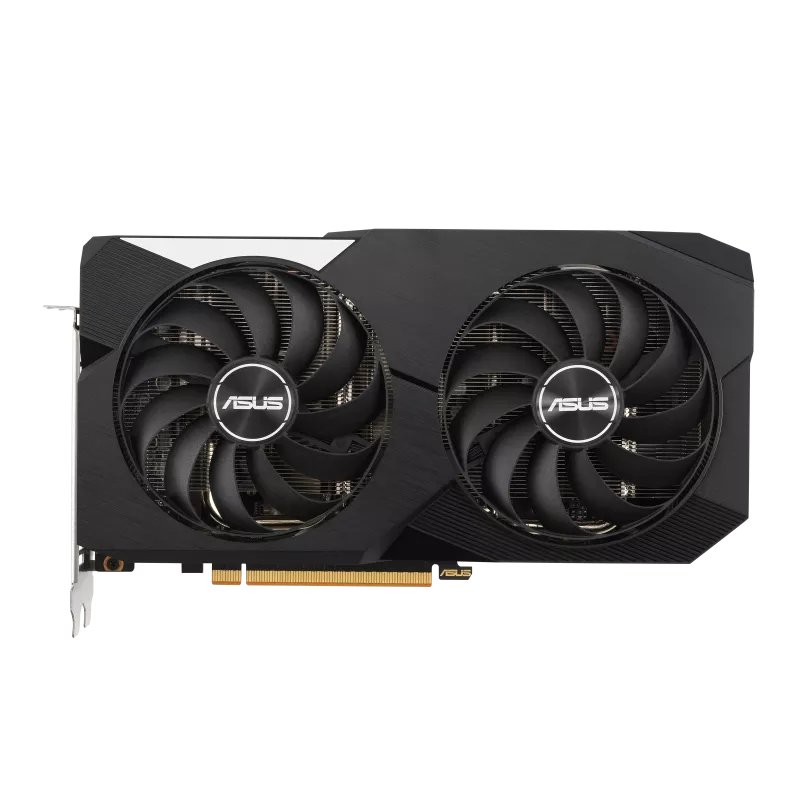

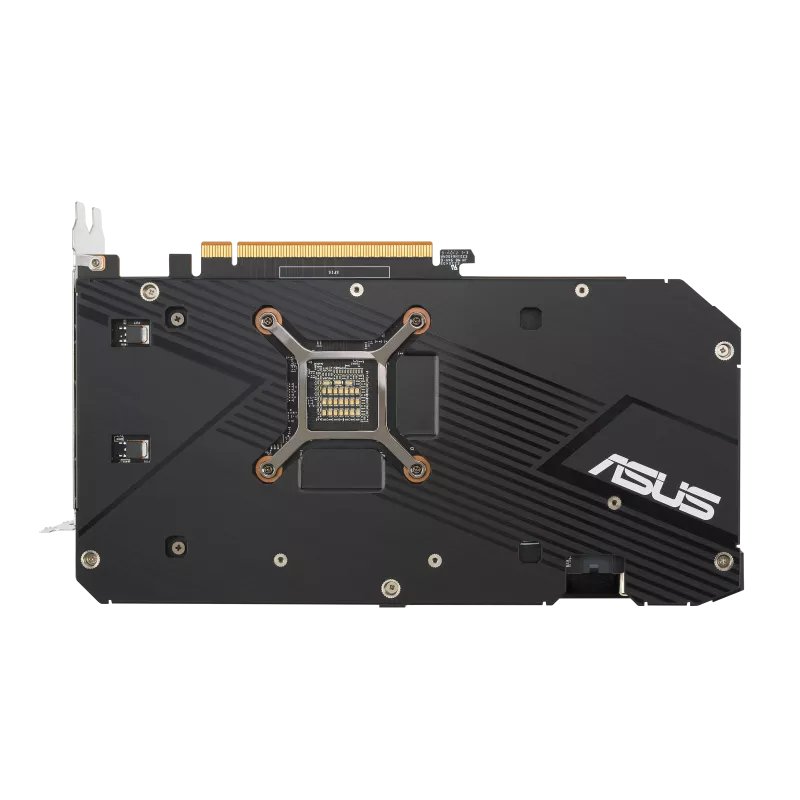

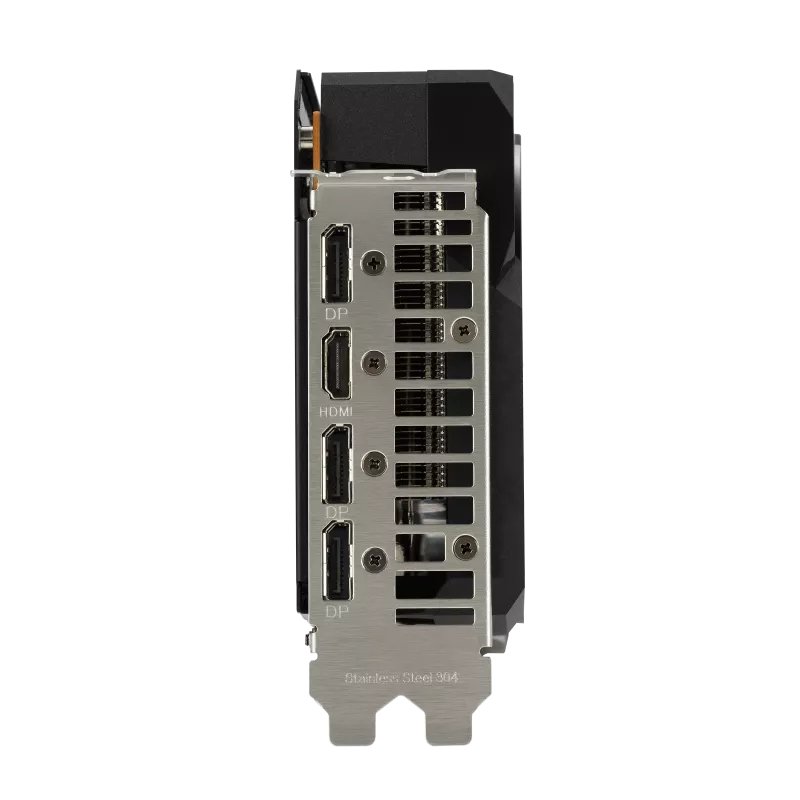

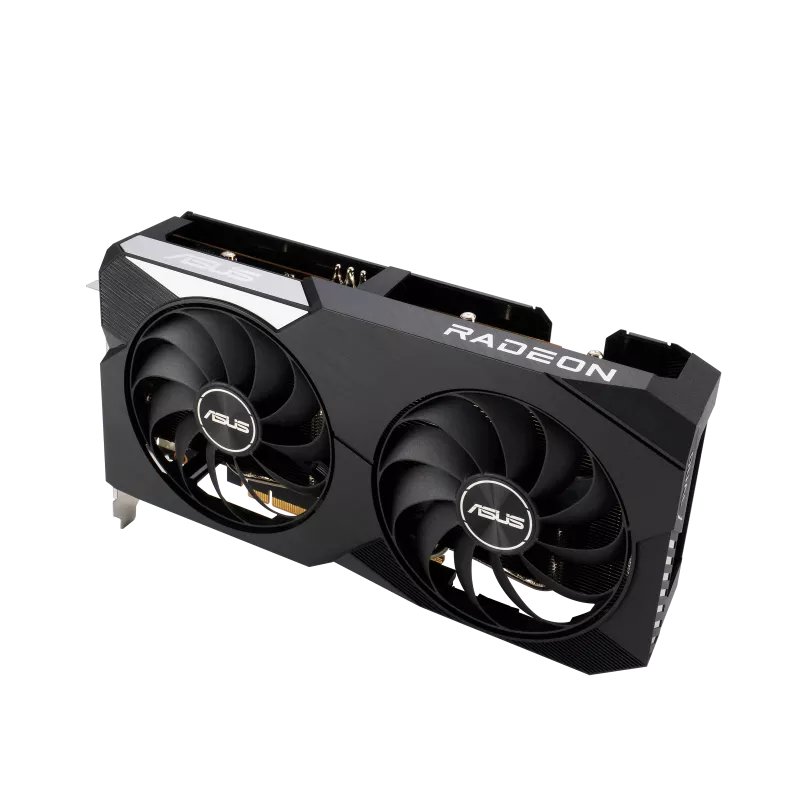

ASUS DUAL RX 6600 product image
ASUS DUAL RX 6600 product image 1ASUS DUAL RX 6600 product image 2ASUS DUAL RX 6600 product image 3ASUS DUAL RX 6600 product image 4

General

SeriesRX 6000
ModelDUAL RX 6600
ChipRX 6600
Launch Year2021
Release Date10/13/2021
Launch MSRP$329
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureRDNA 2.0
GPU DieNavi 23 (Navi 23 XL)
FoundryTSMC · 7 nm
Transistors11.1 billion
Die Size237 mm²

Cores

Shading Units1792
TMUs112
ROPs64
SM / CU28
RT Cores28
L2 Cache2 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1626 MHz
Boost Clock2491 MHz
TDP132 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP328.93 TFLOPS
FP1617.86 TFLOPS
FP640.56 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length243 mm
Width49 mm
Height134 mm
Slot Width2.5 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenCL 2.1
OpenGL 4.6
Shader Model 6.8
Hardware EncoderVCN 3.0
Encoding
H.265
H.264
Decoding
AV1
H.265
H.264
VP9
VC-1
MPEG-2
