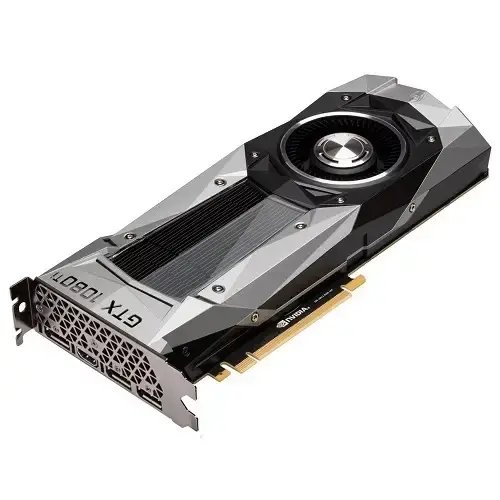

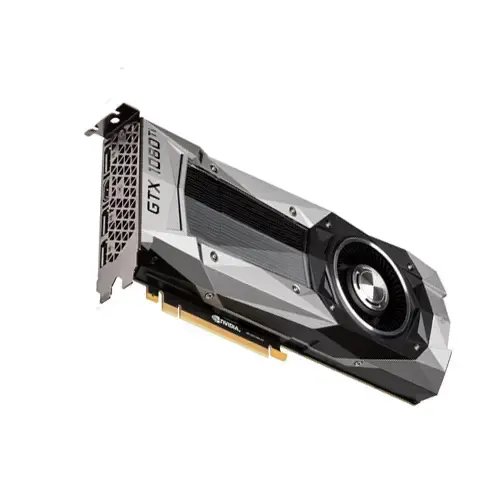

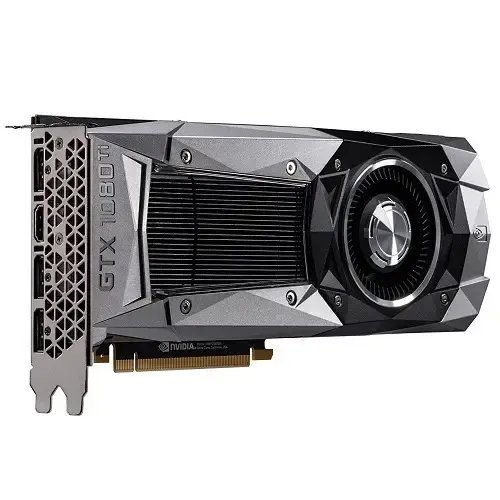

ASUS GTX 1080 Ti Founders Edition
GTX 10 · GTX 1080 Ti Founders Edition · GTX 1080 Ti
General
| Series | GTX 10 |
|---|---|
| Model | GTX 1080 Ti Founders Edition |
| Chip | GTX 1080 Ti |
| Launch Year | 2017 |
| Release Date | 3/10/2017 |
| Launch MSRP | $699 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Pascal |
|---|---|
| GPU Die | GP102 (GP102-350-K1/K2/K3/K4-A1 / GP102-351-K1-A1) |
| Foundry | TSMC · 16 nm |
| Transistors | 11.8 billion |
| Die Size | 471 mm² |
Cores
| Shading Units | 3584 |
|---|---|
| TMUs | 224 |
| ROPs | 88 |
| SM / CU | 28 |
| L2 Cache | 3 MB |
Memory
| VRAM | 11 GB |
|---|---|
| Memory Type | GDDR5X |
| Memory Bus | 352-bit |
| Memory Speed | 11 Gbps |
Clocks and Power
| Base Clock | 1481 MHz |
|---|---|
| Boost Clock | 1582 MHz |
| TDP | 250 W |
| Power Connector | 6-pin + 8-pin |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 11.34 TFLOPS |
|---|---|
| FP16 | 0.18 TFLOPS |
| FP64 | 0.35 TFLOPS |
Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 1 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 267 mm |
|---|---|
| Width | 40 mm |
| Height | 112 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|
