ASUS Prime RTX 5050 OC Edition
RTX 50 · Prime RTX 5050 OC Edition · RTX 5050
General
| Series | RTX 50 |
|---|---|
| Model | Prime RTX 5050 OC Edition |
| Chip | RTX 5050 |
| Launch Year | 2025 |
| Release Date | 6/24/2025 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Blackwell |
|---|---|
| GPU Die | GB207 (GB207-300-A1) |
| Foundry | TSMC · 5 nm |
| Transistors | 16.9 billion |
| Die Size | 149 mm² |
Cores
| Shading Units | 2560 |
|---|---|
| TMUs | 80 |
| ROPs | 32 |
| SM / CU | 20 |
| Tensor Cores | 80 |
| RT Cores | 20 |
| L2 Cache | 32 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 2317 MHz |
|---|---|
| Boost Clock | 2677 MHz |
| TDP | 130 W |
| Power Connector | 8-pin |
| Recommended PSU | 550 W |
Compute (TFLOPS)
| FP32 | 13.31 TFLOPS |
|---|---|
| FP16 | 13.31 TFLOPS |
| FP64 | 0.21 TFLOPS |

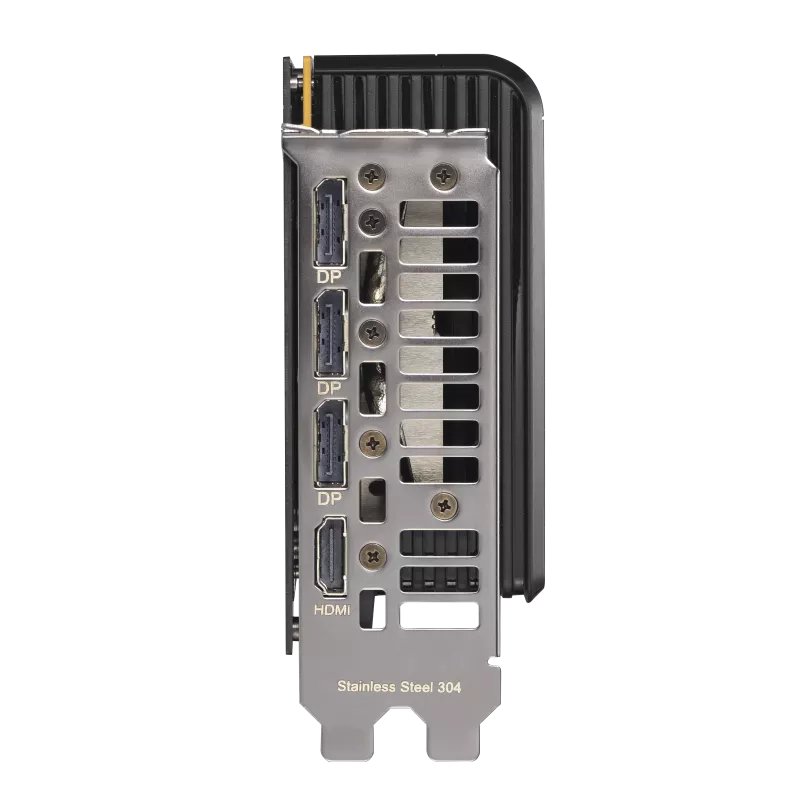

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |

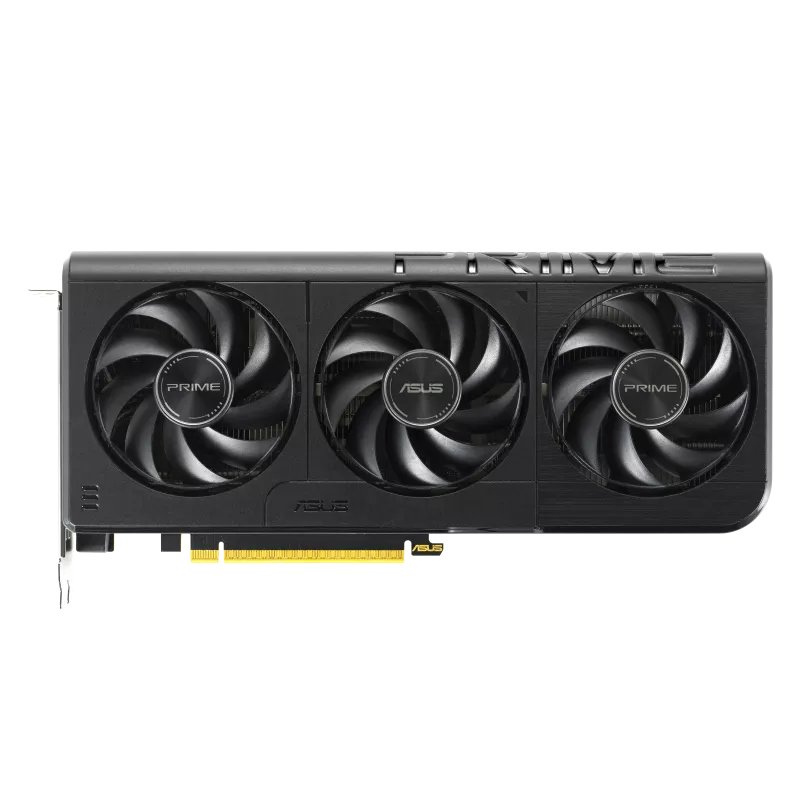

Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 268 mm |
|---|---|
| Width | 50 mm |
| Height | 120 mm |
| Slot Width | 2.5 slot |
Interface
| PCIe Version | 5.0 |
|---|---|
| PCIe Lanes | x8 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) CUDA 12.8 Vulkan 1.3 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | 1x NVENC (9th Gen) 1x NVDEC (6th Gen) |
| Encoding | AV1 (YUV 4:2:0) H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame) H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless) |
| Decoding | AV1 (8bit/10bit) H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4) H.264 (8/10bit 4:2:0, 8/10bit 4:2:2) VP9 (8/10/12bit) VP8 VC-1 MPEG-2 MPEG-1 |
