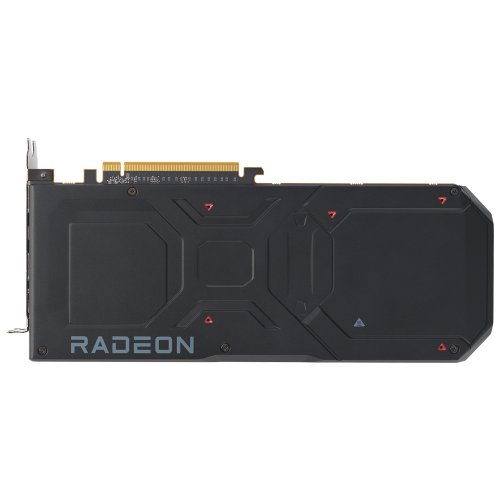

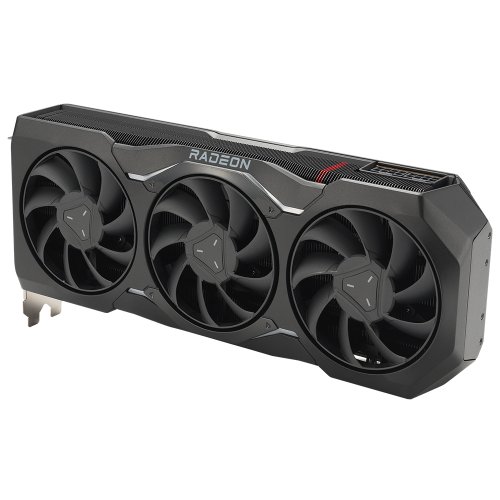

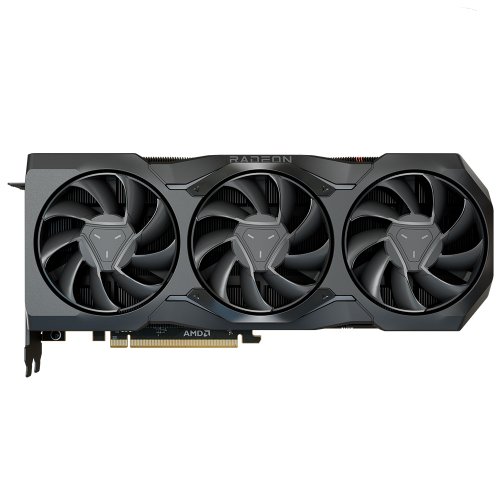

ASUS Radeon RX 7900 XTX
RX 7000 · Radeon RX 7900 XTX · RX 7900 XT
General
| Series | RX 7000 |
|---|---|
| Model | Radeon RX 7900 XTX |
| Chip | RX 7900 XT |
| Launch Year | 2023 |
| Release Date | 11/3/2022 |
| Launch MSRP | $999 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 3.0 |
|---|---|
| GPU Die | Navi 31 (Navi 31 XT) |
| Foundry | TSMC · 5 nm |
| Transistors | 57.7 billion |
| Die Size | 529 mm² |
Cores
| Shading Units | 5376 |
|---|---|
| TMUs | 336 |
| ROPs | 192 |
| SM / CU | 84 |
| Tensor Cores | 168 |
| RT Cores | 84 |
| L2 Cache | 6 MB |
Memory
| VRAM | 20 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 320-bit |
| Memory Speed | 20 Gbps |
Clocks and Power
| Base Clock | 1500 MHz |
|---|---|
| Boost Clock | 2498 MHz |
| TDP | 315 W |
| Power Connector | 8-pin |
| Recommended PSU | 700 W |
Compute (TFLOPS)
| FP32 | 51.48 TFLOPS |
|---|---|
| FP16 | 103 TFLOPS |
| FP64 | 1.61 TFLOPS |

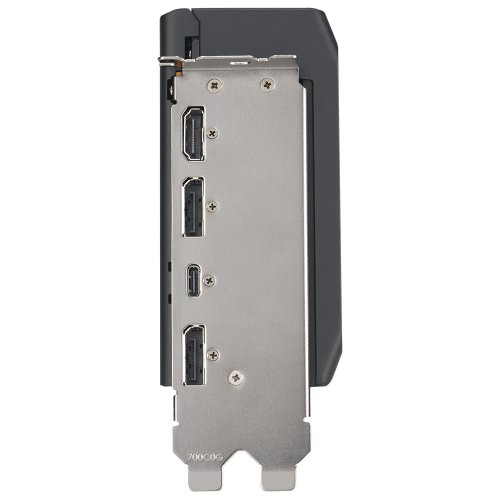

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 2× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 287 mm |
|---|---|
| Width | 51 mm |
| Height | 123 mm |
| Slot Width | 2.5 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 2.2 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | VCN 4.0 |
| Encoding | AV1 H.265 H.264 |
| Decoding | AV1 H.265 H.264 VP9 |
