ASUS ROG Strix RTX 5070 Ti

RTX 50 · ROG Strix RTX 5070 Ti · RTX 5070 Ti

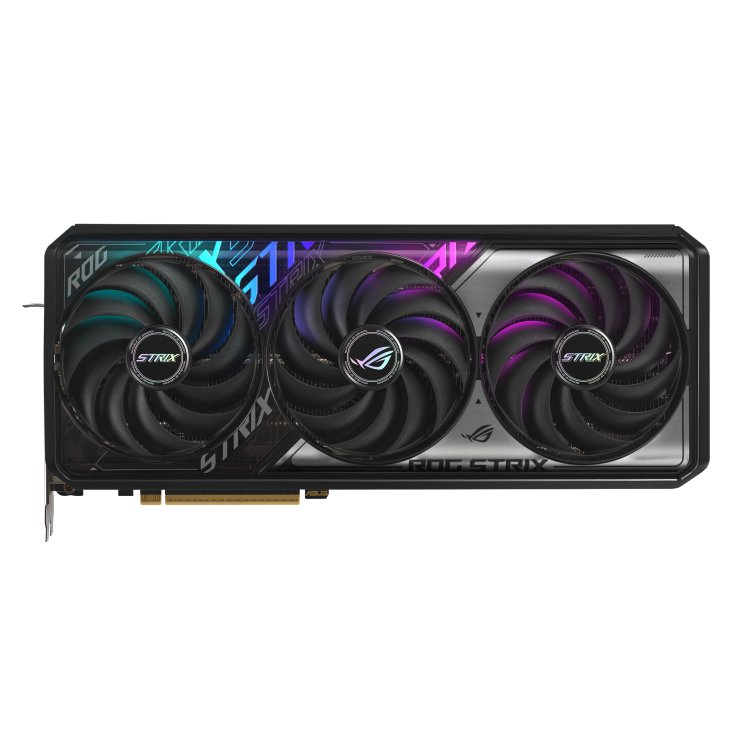

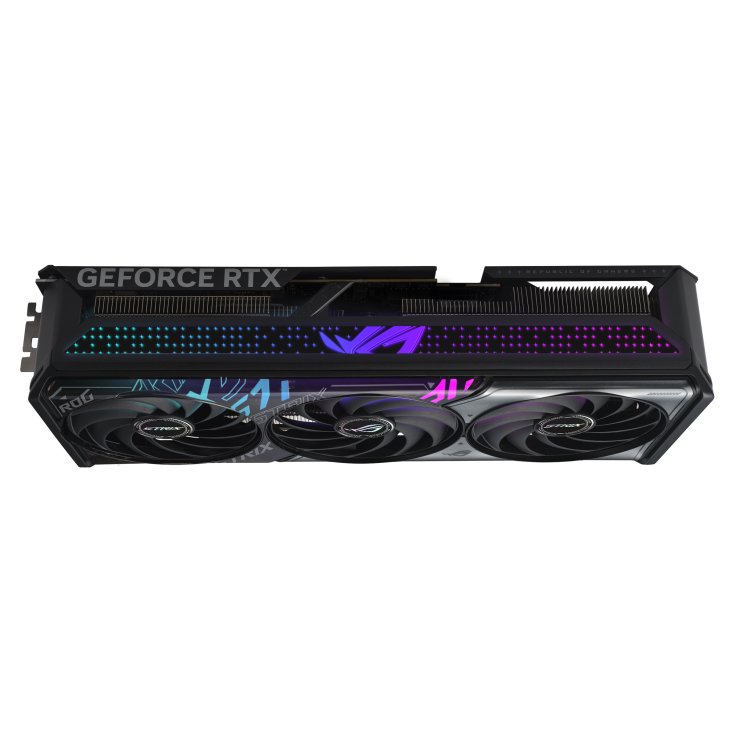

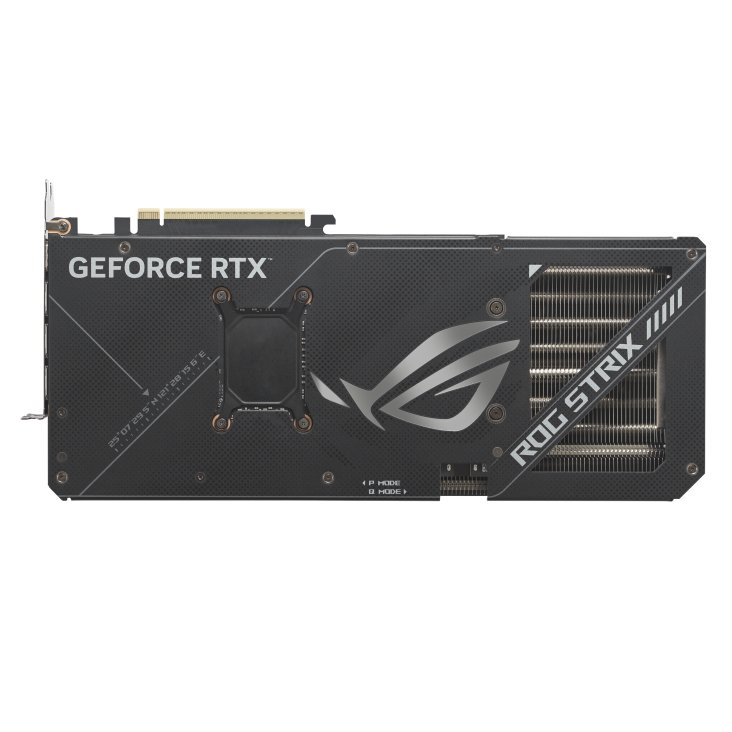

ASUS ROG Strix RTX 5070 Ti product image
ASUS ROG Strix RTX 5070 Ti product image 1ASUS ROG Strix RTX 5070 Ti product image 2ASUS ROG Strix RTX 5070 Ti product image 3ASUS ROG Strix RTX 5070 Ti product image 4

General

SeriesRTX 50
ModelROG Strix RTX 5070 Ti
ChipRTX 5070 Ti
Launch Year2025
Release Date2/20/2025
Launch MSRP$749
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureBlackwell 2.0
GPU DieGB203 (GB203-300-A1)
FoundryTSMC · 5 nm
Transistors45.6 billion
Die Size378 mm²

Cores

Shading Units8960
TMUs280
ROPs96
SM / CU70
Tensor Cores280
RT Cores70
L2 Cache48 MB

Memory

VRAM16 GB
Memory TypeGDDR7
Memory Bus256-bit
Memory Speed28 Gbps

Clocks and Power

Base Clock2300 MHz
Boost Clock2452 MHz
TDP300 W
Power Connector12V-2x6
Recommended PSU700 W

Compute (TFLOPS)

FP3244.8 TFLOPS
FP1644.8 TFLOPS
FP640.7 TFLOPS

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length332 mm
Width64 mm
Height147 mm
Slot Width3.3 slot

Interface

PCIe Version5.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 12.8
Vulkan 1.3
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
Hardware Encoder
2x NVENC (9th Gen, max 8 sessions)
1x NVDEC (6th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4)
H.264 (8/10bit 4:2:0, 8/10bit 4:2:2)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
