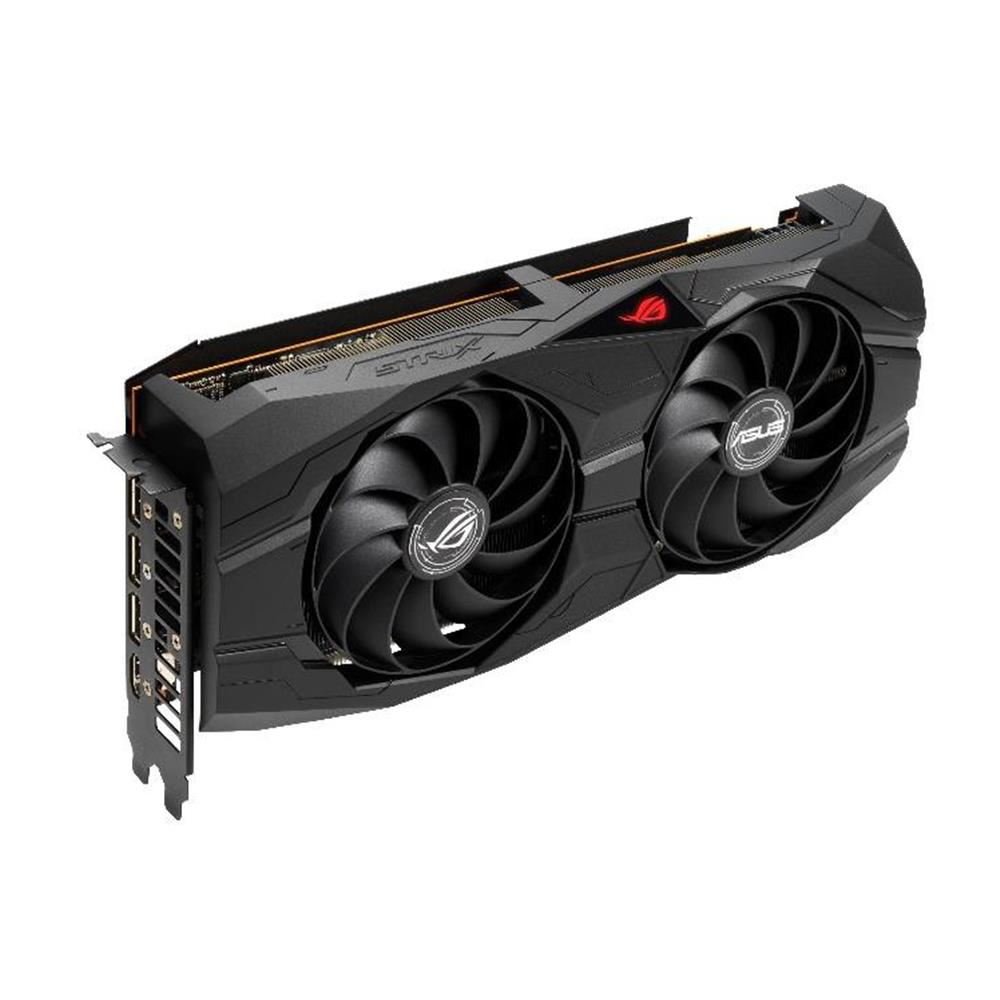

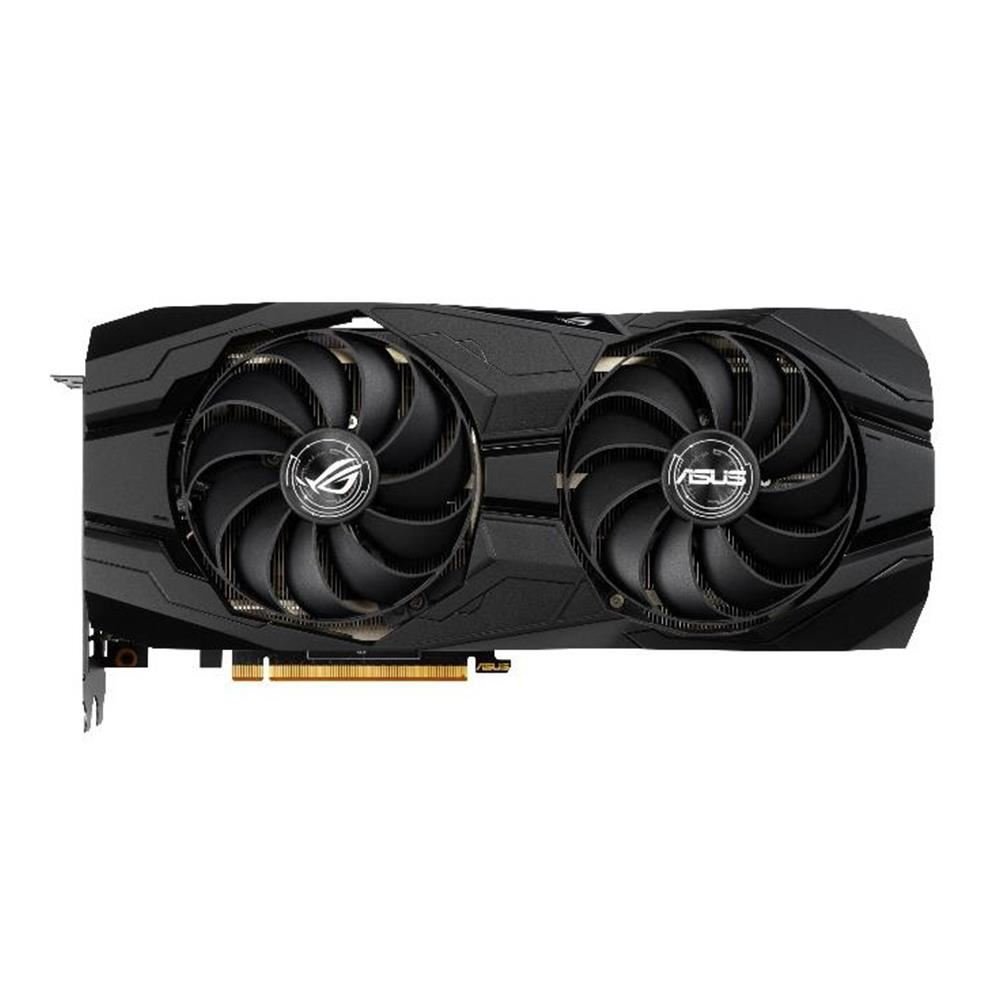

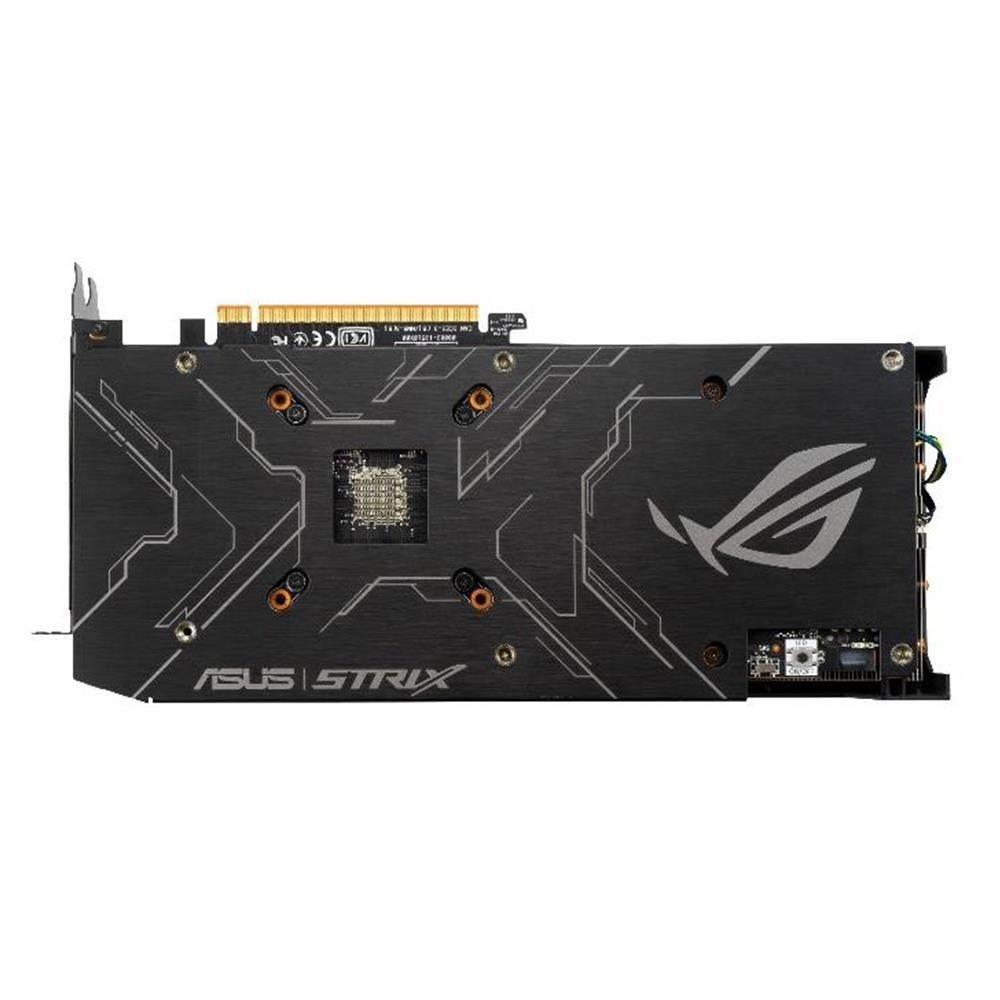

ASUS ROG STRIX RX 5500 XT GAMING OC
RX 5000 · ROG STRIX RX 5500 XT GAMING OC · RX 5500 XT
General
| Series | RX 5000 |
|---|---|
| Model | ROG STRIX RX 5500 XT GAMING OC |
| Chip | RX 5500 XT |
| Launch Year | 2019 |
| Release Date | 12/12/2019 |
| Launch MSRP | $169 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 1.0 |
|---|---|
| GPU Die | Navi 14 (Navi 14 XTX) |
| Foundry | TSMC · 7 nm |
| Transistors | 6.4 billion |
| Die Size | 158 mm² |
Cores
| Shading Units | 1408 |
|---|---|
| TMUs | 88 |
| ROPs | 32 |
| SM / CU | 22 |
| L2 Cache | 2 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 1685 MHz |
|---|---|
| Boost Clock | 1845 MHz |
| TDP | 130 W |
| Power Connector | 8-pin |
| Recommended PSU | 300 W |
Compute (TFLOPS)
| FP32 | 5.2 TFLOPS |
|---|---|
| FP16 | 10.39 TFLOPS |
| FP64 | 0.32 TFLOPS |

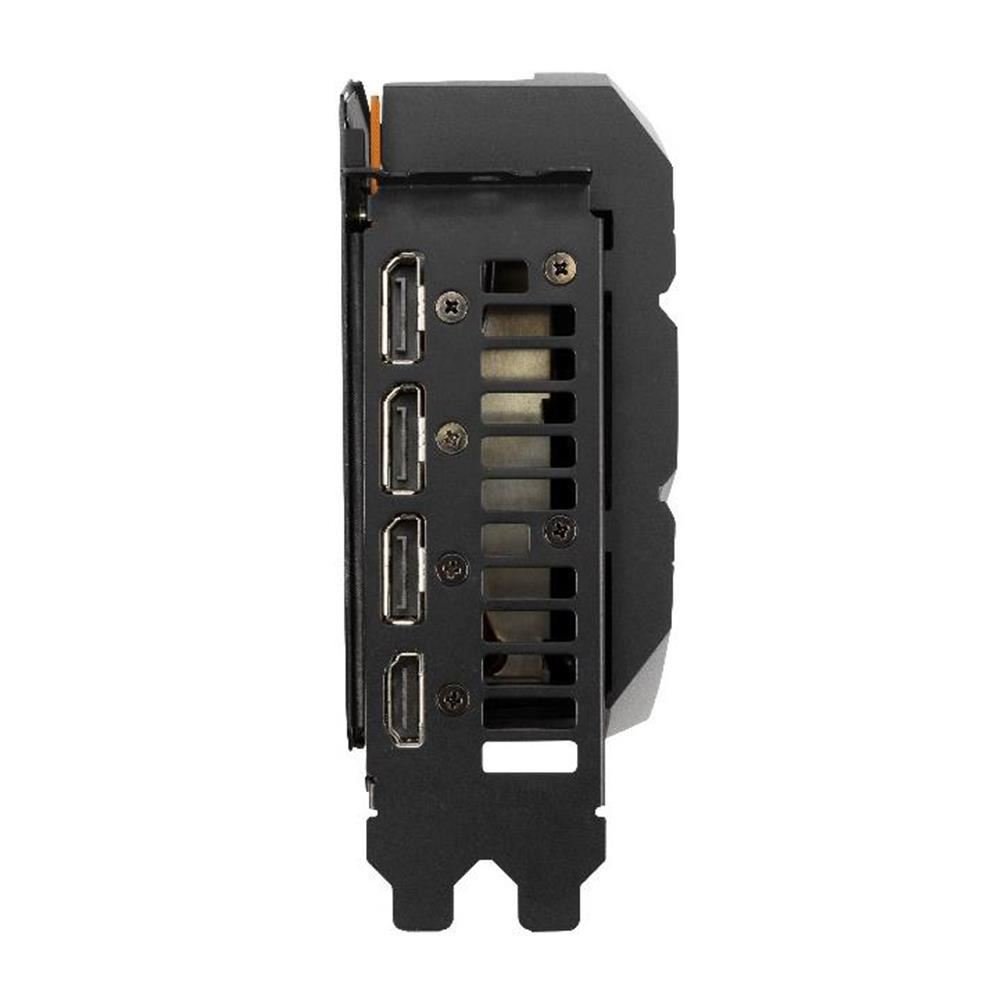

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 280 mm |
|---|---|
| Width | 58 mm |
| Height | 127 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x8 |
