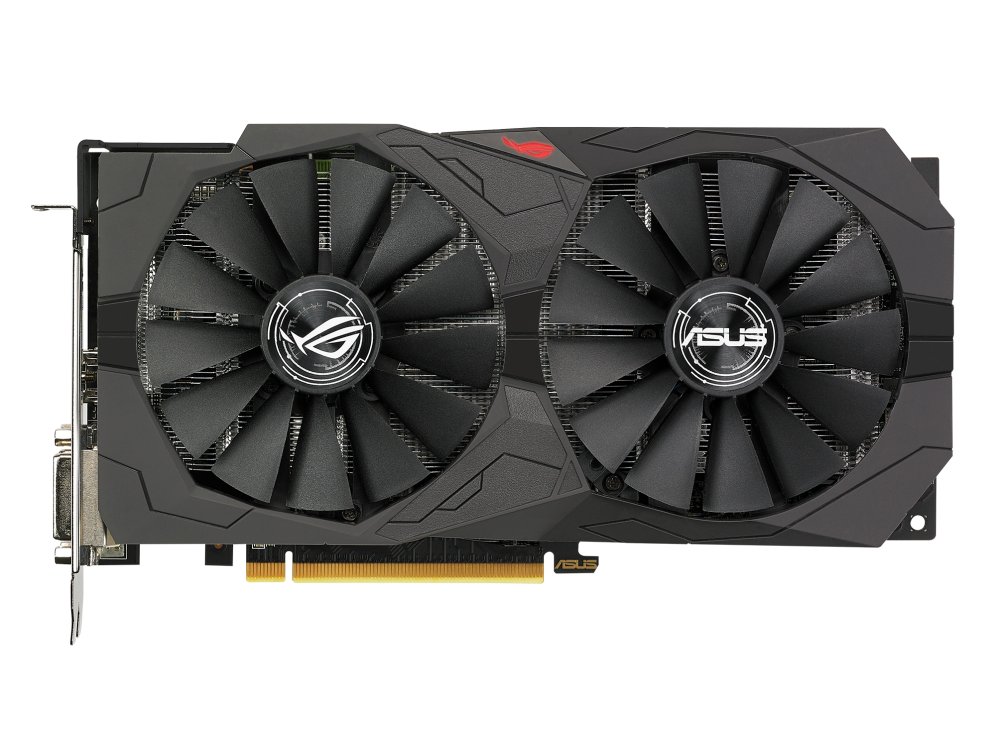

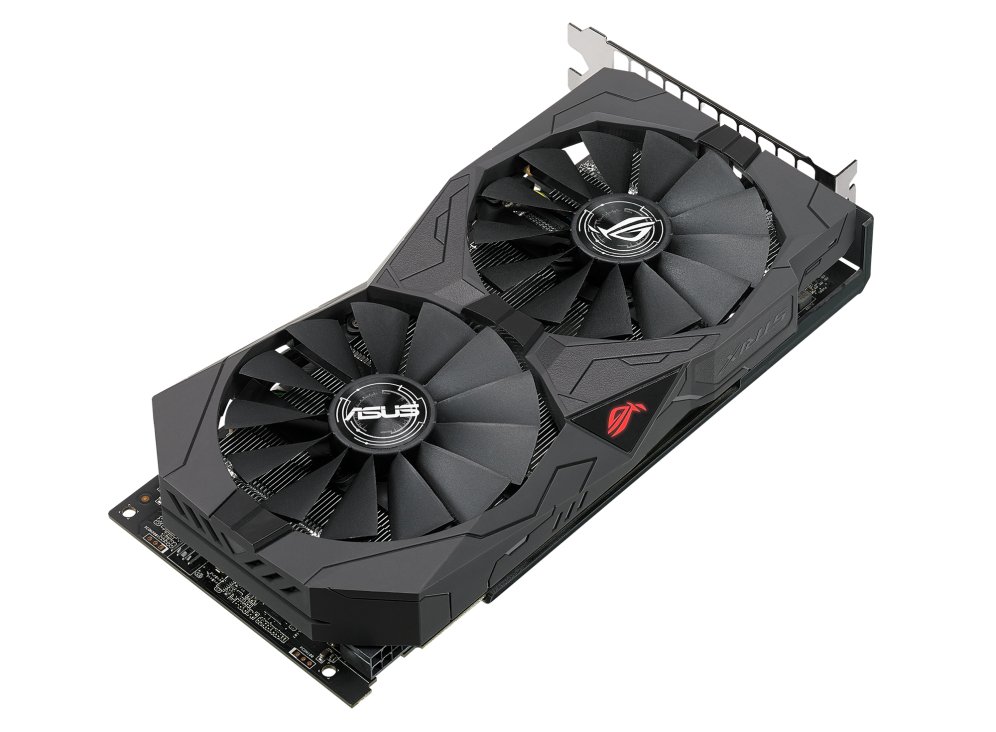

ASUS ROG STRIX RX 560 GAMING
RX 500 · ROG STRIX RX 560 GAMING · RX 560 XT
General
| Series | RX 500 |
|---|---|
| Model | ROG STRIX RX 560 GAMING |
| Chip | RX 560 XT |
| Launch Year | 2017 |
| Release Date | 4/18/2017 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | GCN 4.0 |
|---|---|
| GPU Die | Polaris 21 (Polaris 21 XT) |
| Foundry | GlobalFoundries · 14 nm |
| Transistors | 3.0 billion |
| Die Size | 123 mm² |
Cores
| Shading Units | 1024 |
|---|---|
| TMUs | 64 |
| ROPs | 16 |
| SM / CU | 16 |
| L2 Cache | 1 MB |
Memory
| VRAM | 4 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 128-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 1175 MHz |
|---|---|
| Boost Clock | 1275 MHz |
| TDP | 75 W |
| Power Connector | 6-pin |
| Recommended PSU | 250 W |
Compute (TFLOPS)
| FP32 | 2.61 TFLOPS |
|---|---|
| FP16 | 2.61 TFLOPS |
| FP64 | 0.16 TFLOPS |

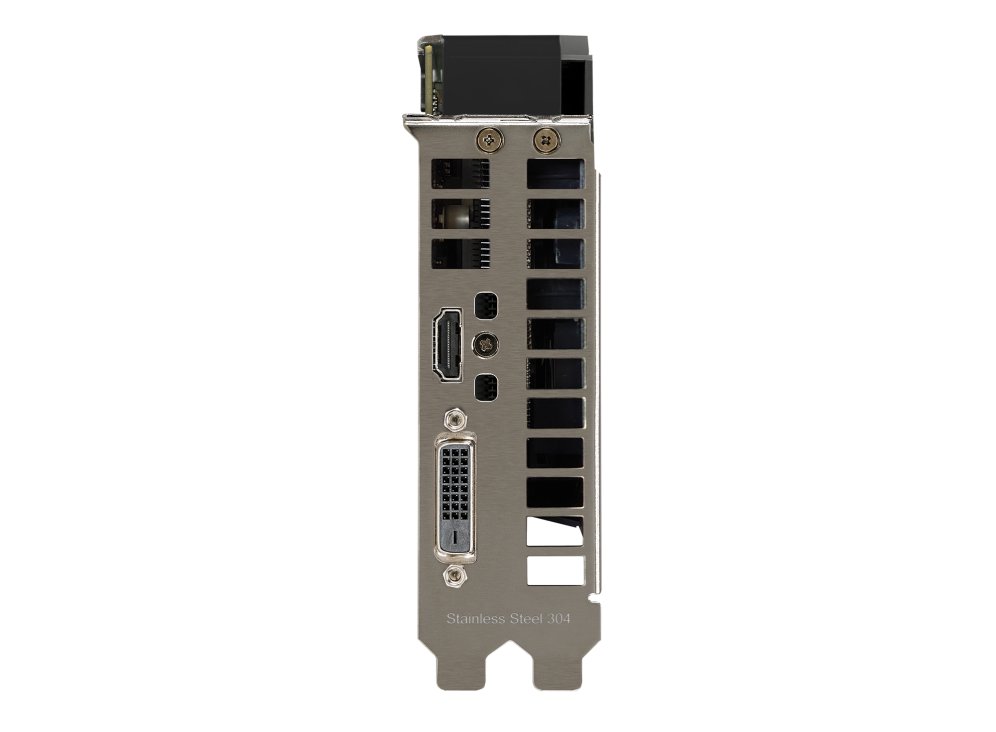

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
| DVI | 1× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 190 mm |
|---|---|
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x8 |
