ASUS RTX 5060 LP BRK OC Edition

RTX 50 · RTX 5060 LP BRK OC Edition · RTX 5060

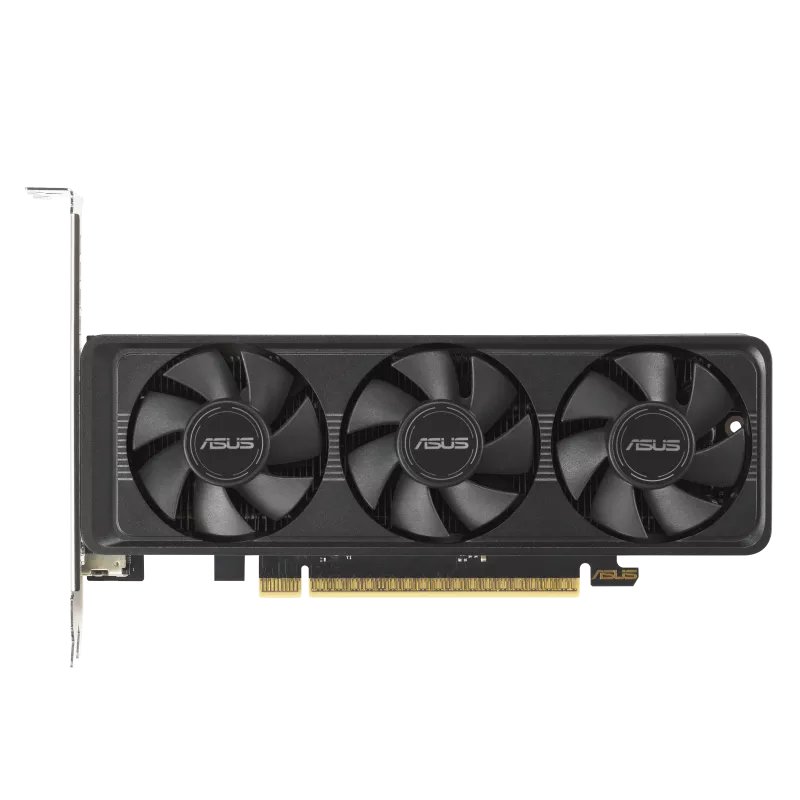

ASUS RTX 5060 LP BRK OC Edition product image

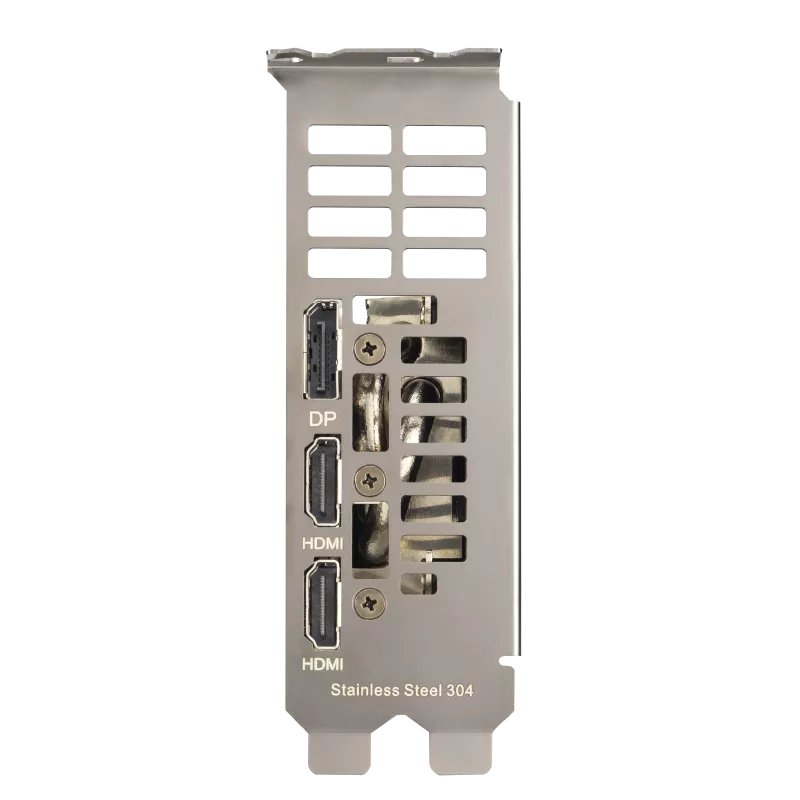

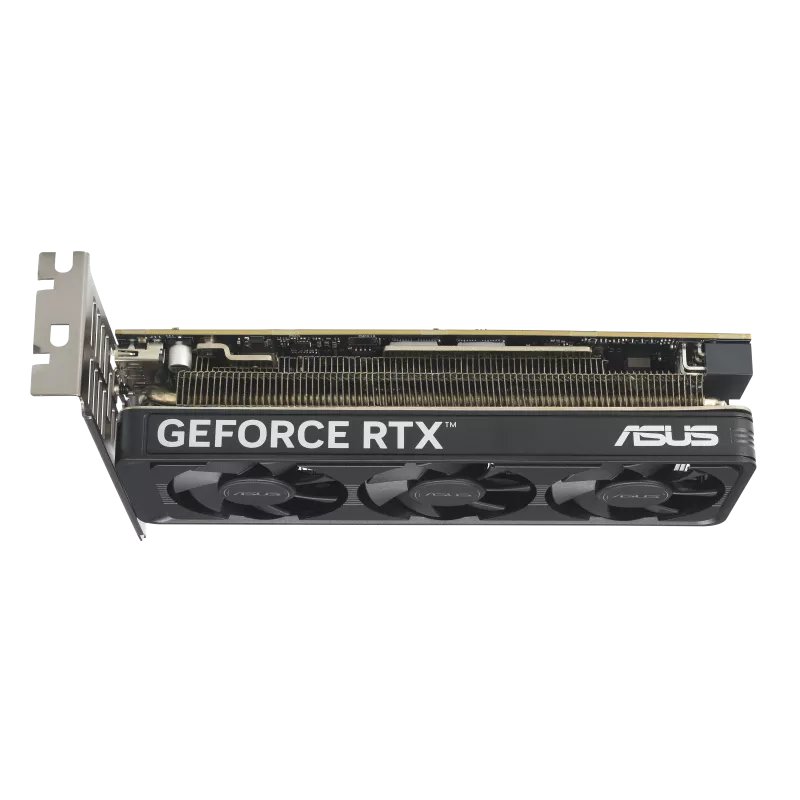

ASUS RTX 5060 LP BRK OC Edition product image 1ASUS RTX 5060 LP BRK OC Edition product image 2ASUS RTX 5060 LP BRK OC Edition product image 3

General

SeriesRTX 50
ModelRTX 5060 LP BRK OC Edition
ChipRTX 5060
Launch Year2025
Release Date5/19/2025
Launch MSRP$299
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureBlackwell 2.0
GPU DieGB206 (GB206-250-A1)
FoundryTSMC · 5 nm
Transistors21.9 billion
Die Size181 mm²

Cores

Shading Units3840
TMUs120
ROPs48
SM / CU30
Tensor Cores120
RT Cores30
L2 Cache32 MB

Memory

VRAM8 GB
Memory TypeGDDR7
Memory Bus128-bit
Memory Speed28 Gbps

Clocks and Power

Base Clock2280 MHz
Boost Clock2550 MHz
TDP145 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP3219.18 TFLOPS
FP1619.18 TFLOPS
FP640.3 TFLOPS

Display Outputs

HDMI2×
DisplayPort1×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length176 mm
Width38 mm
Height69 mm
Slot Width2 slot

Interface

PCIe Version5.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 12.0
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (9th Gen)
1x NVDEC (6th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4)
H.264 (8/10bit 4:2:0, 8/10bit 4:2:2)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
