ASUS TUF RTX 3080 GAMING 12GB
RTX 30 · TUF RTX 3080 GAMING · RTX 3080 12GB
General
| Series | RTX 30 |
|---|---|
| Model | TUF RTX 3080 GAMING |
| Chip | RTX 3080 12GB |
| Launch Year | 2022 |
| Release Date | 1/11/2022 |
| Launch MSRP | $799 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Ampere |
|---|---|
| GPU Die | GA102 (GA102-220-A1) |
| Foundry | Samsung · 8 nm |
| Transistors | 28.3 billion |
| Die Size | 628 mm² |
Cores
| Shading Units | 8960 |
|---|---|
| TMUs | 280 |
| ROPs | 96 |
| SM / CU | 70 |
| Tensor Cores | 280 |
| RT Cores | 70 |
| L2 Cache | 6 MB |
Memory
| VRAM | 12 GB |
|---|---|
| Memory Type | GDDR6X |
| Memory Bus | 384-bit |
| Memory Speed | 19 Gbps |
Clocks and Power
| Base Clock | 1260 MHz |
|---|---|
| Boost Clock | 1710 MHz |
| TDP | 350 W |
| Power Connector | 8-pin |
| Recommended PSU | 750 W |
Compute (TFLOPS)
| FP32 | 30.64 TFLOPS |
|---|---|
| FP16 | 30.64 TFLOPS |
| FP64 | 0.48 TFLOPS |

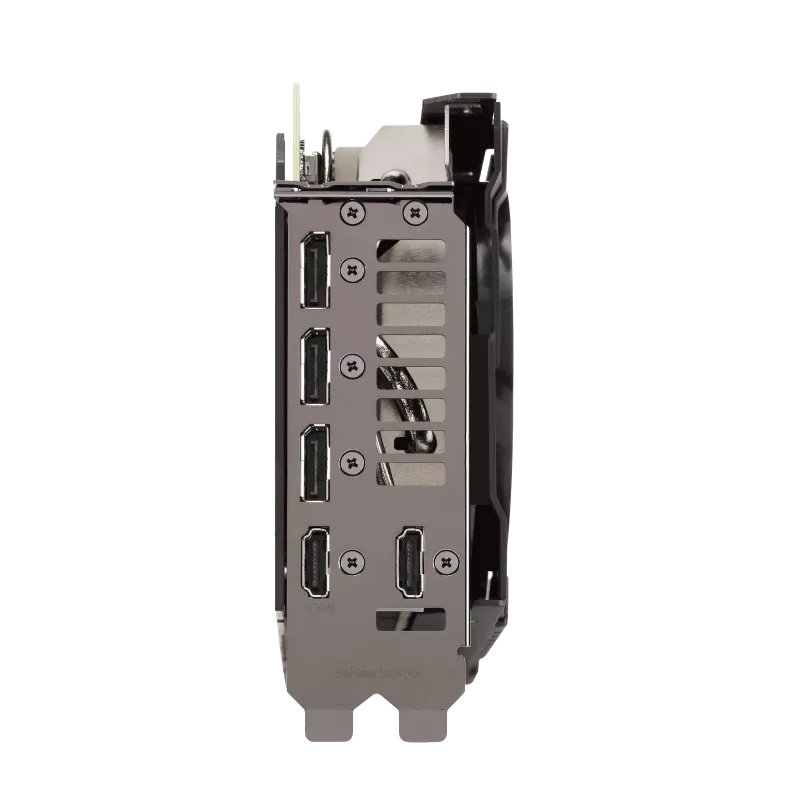

Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 300 mm |
|---|---|
| Width | 52 mm |
| Height | 127 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) CUDA 8.6 Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.9 |
|---|---|
| Hardware Encoder | 1x NVENC (7th Gen, max. Sessions: 8) 1x NVDEC (5th Gen) |
| Encoding | H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support) H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless) |
| Decoding | AV1 (8bit / 10bit) H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4) H.264 (8bit 4:2:0) VP9 (8bit / 10bit / 12bit) VP8 VC-1 MPEG-2 MPEG-1 |
