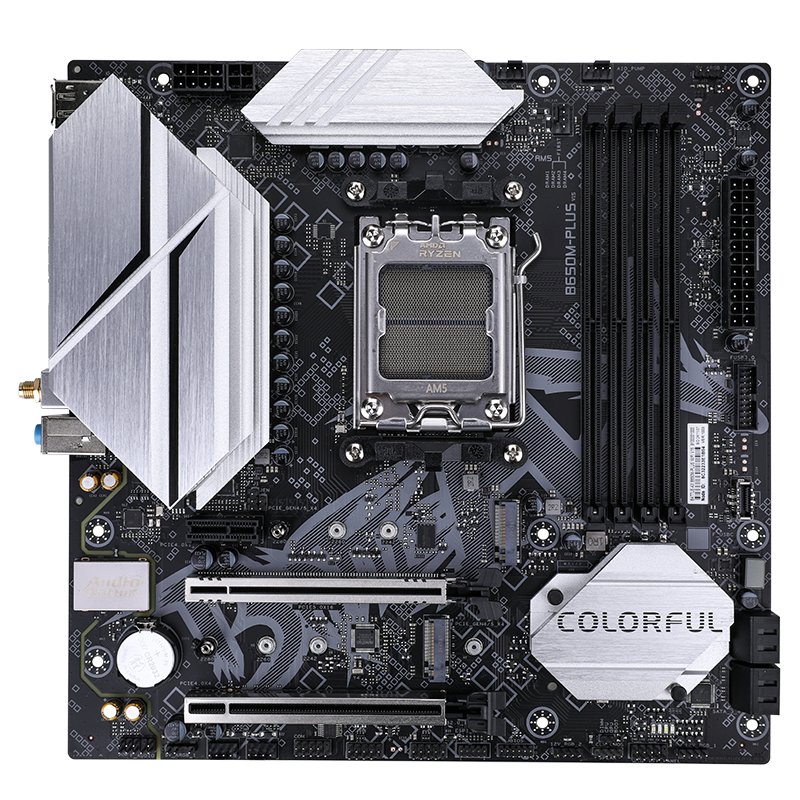

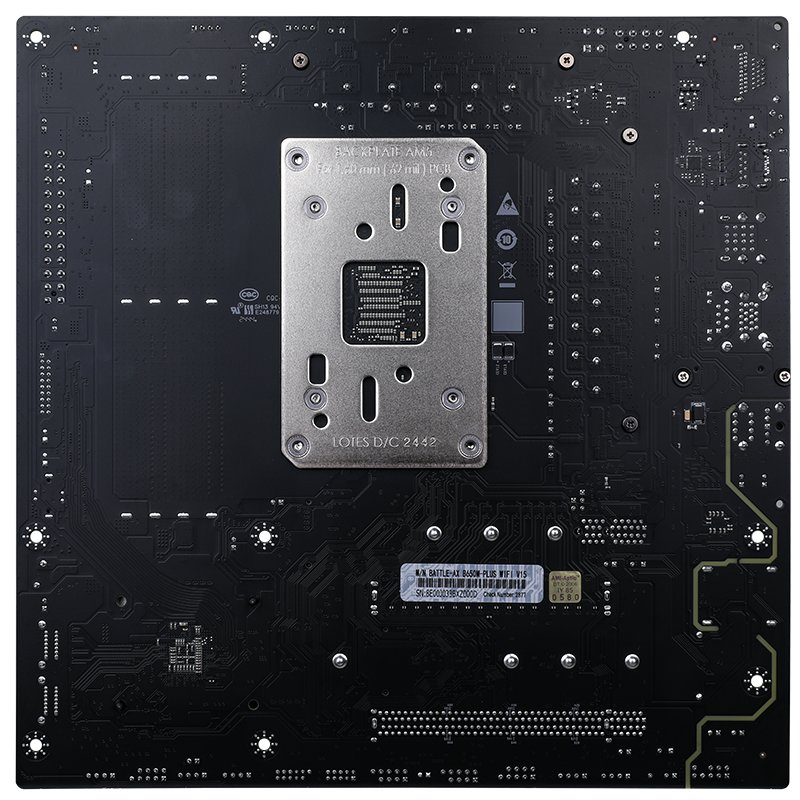

Colorful BATTLE-AX B650M-PLUS WIFI V15
B650 · AM5 · Micro-ATX
General
| Chipset | B650 |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
Highlights
Memory4× DDR5 · max 192 GB · 6800 MT/s
M.2 Slots2× (2× PCIe 5.0)
GPU Slots2× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Power Stages10+2+1 phases · 55 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 6800 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 10 Gbps |
| RAID | 0 |
Power Delivery (VRM)
| Phase Layout | 10+2+1 |
|---|---|
| CPU Phases | 10 |
| SoC Phases | 2 |
| Misc Phases | 1 |
| Amps per Phase | 55 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

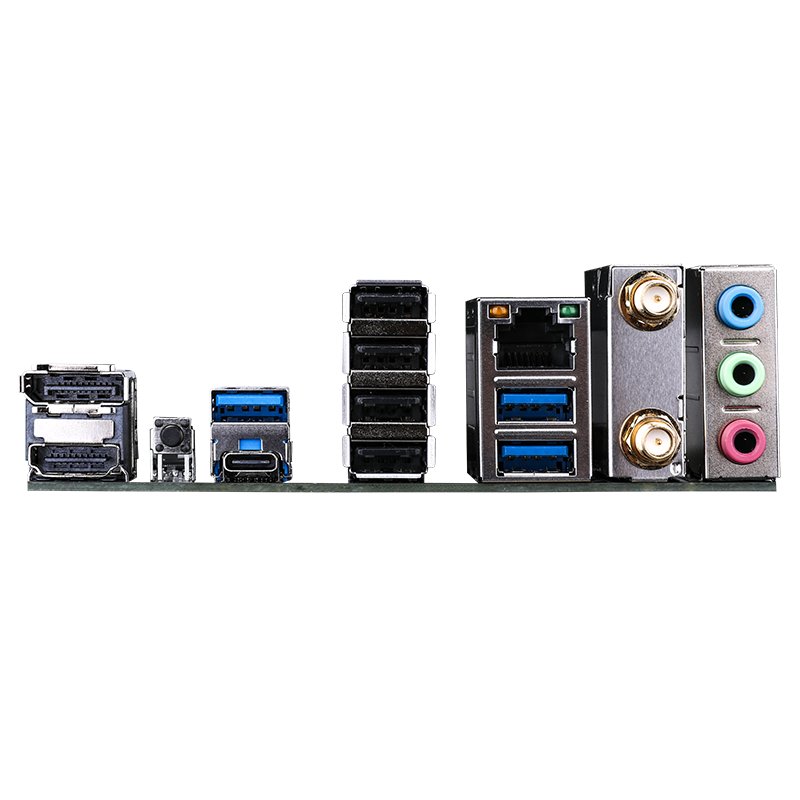

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 5Gbps Type-C 1× USB 10Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps 1× USB-C 5Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) 2× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: Adopting a 10+2+1 phase enhanced power supply design F.C.C ferrite inductor (Dr MOS 55A) Provide 2 PCIe 5.0 x4 M.2 SSD slots Provide 1 USB 3.2 Gen 1 5Gbps Type-C and 1 USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface Equipped with Realtek 2.5G high-speed wired network card and AX200 WiFi 6 wireless network card supporting Bluetooth 5.2 Support iGame Center lighting effect control software which can synchronously adjust the lighting effects of heat sinks cooling fans and memory I/O backplane supports one click BIOS upgrade function Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded |
