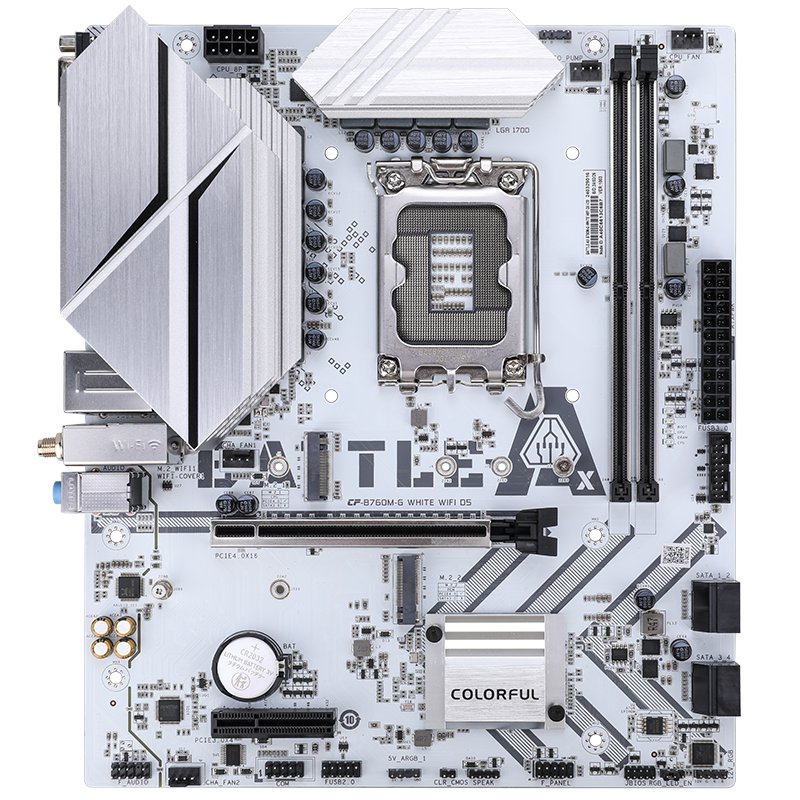

Colorful BATTLE-AX B760M-G WHITE WIFI D5 V20
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR5 · max 96 GB · 7200 MT/s
M.2 Slots2×
GPU Slots1× x16 · PCIe 4.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7200 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

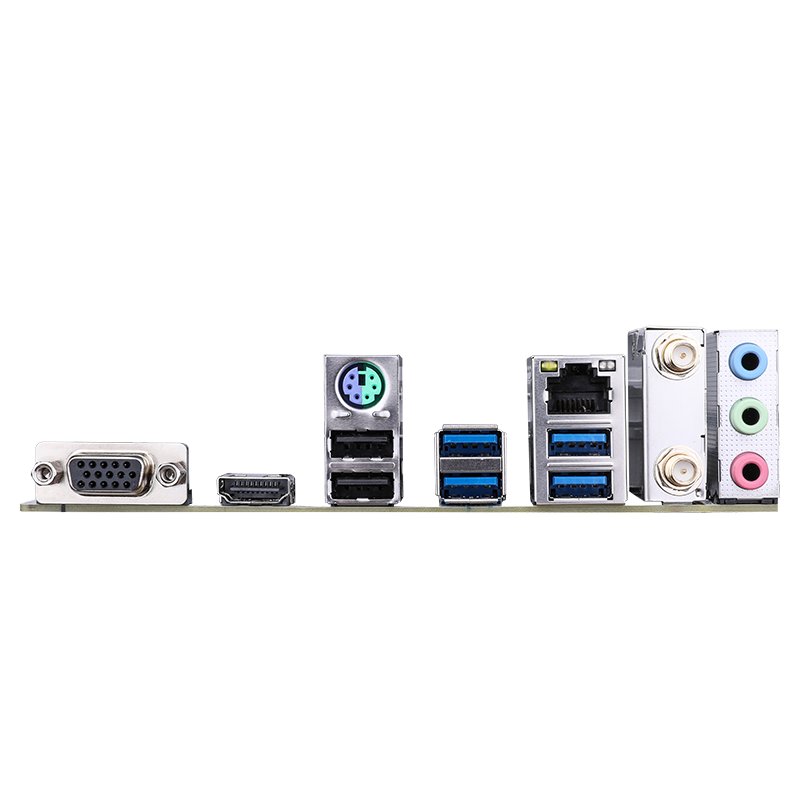

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 1× HDMI 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) 1× PS/2 |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: BATTLE-AX series exclusive customized white motherboard Provide 2 PCIe 4.0 x4 M.2 SSD slots Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card supporting Bluetooth 5.2 Support the iGame Center light efficiency control software which can synchronously adjust the light efficiency of the radiator cooling fan and memory Six protection technologies more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgrade |
