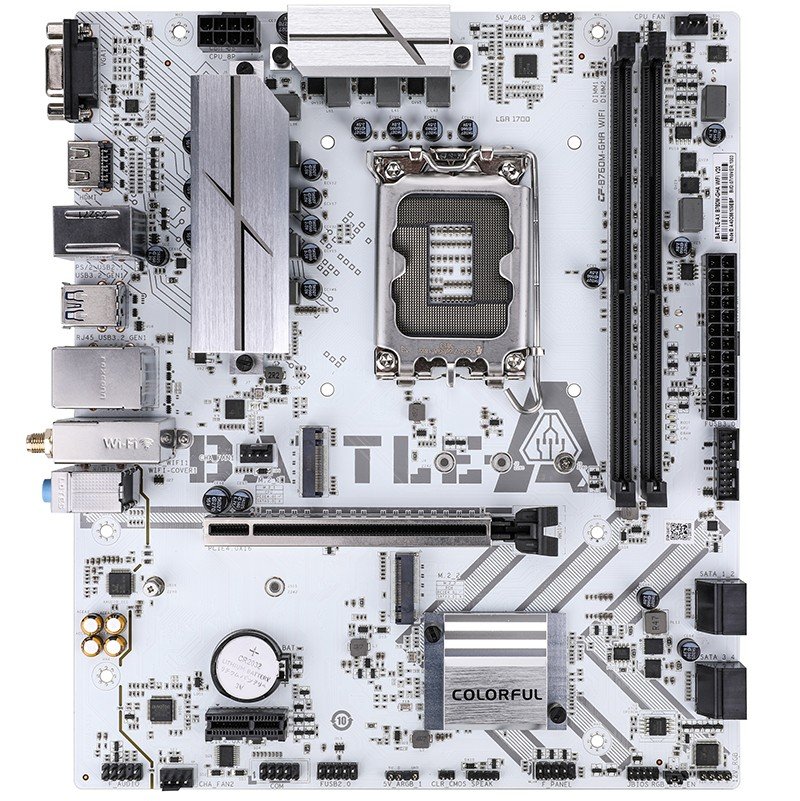

Colorful BATTLE-AX B760M-GHA WIFI V20
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR4 · max 64 GB · 4800 MT/s
M.2 Slots2×
GPU Slots1× x16 · PCIe 4.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4800 MT/s |
| Max RAM | 64 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1×PCIe 4.0 x16 slot 1×PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125 |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

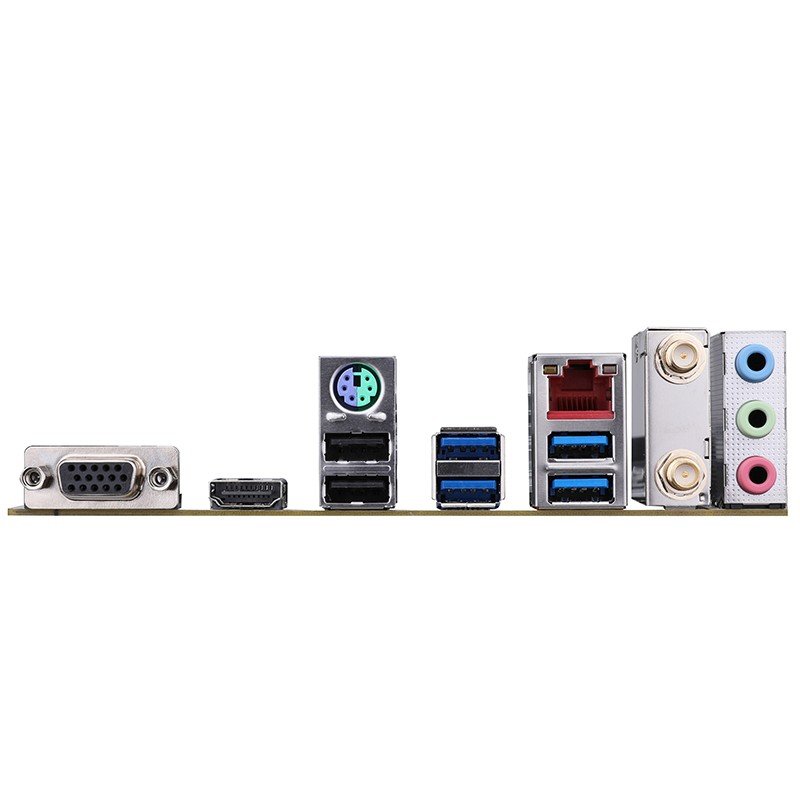

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 1× HDMI 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) 1× PS/2 |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan |
| RGB Header | 2× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: Tomahawk series white motherboard Provide 2 PCIe 4.0 x4 M.2 SSD slots Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card supporting Bluetooth 5.2 Support iGame Center lighting effect control software which can synchronously adjust the lighting effects of heat sinks cooling fans and memory Provide HDMI+VGA interface Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded |
