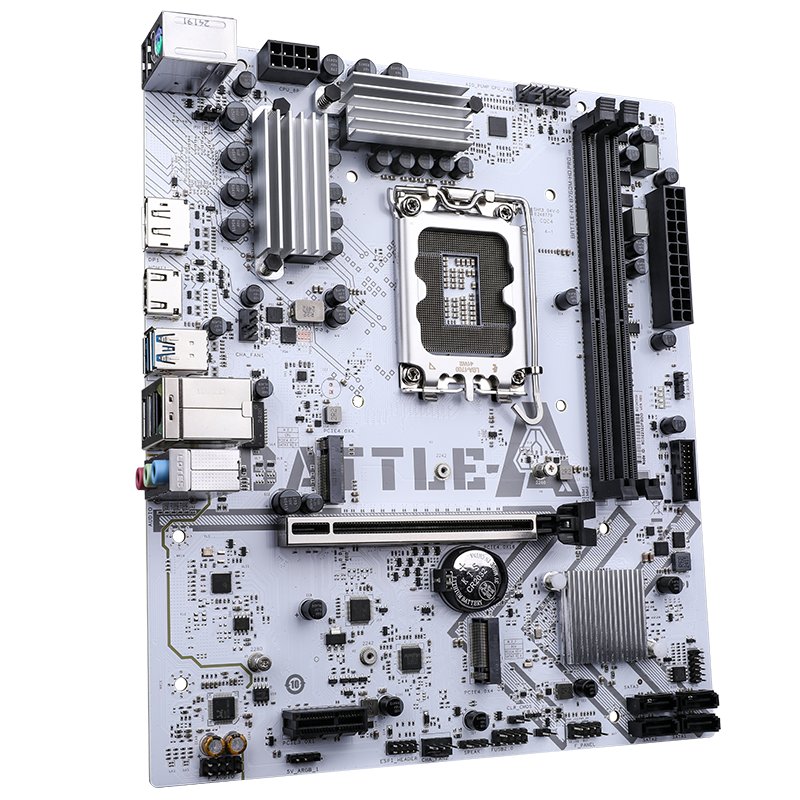

Colorful BATTLE-AX B760M-HD PRO V20
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR4 · max 64 GB · 4800 MT/s
M.2 Slots2×
GPU Slots1× x16 · PCIe 4.0
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4800 MT/s |
| Max RAM | 64 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG 2.5G network card |

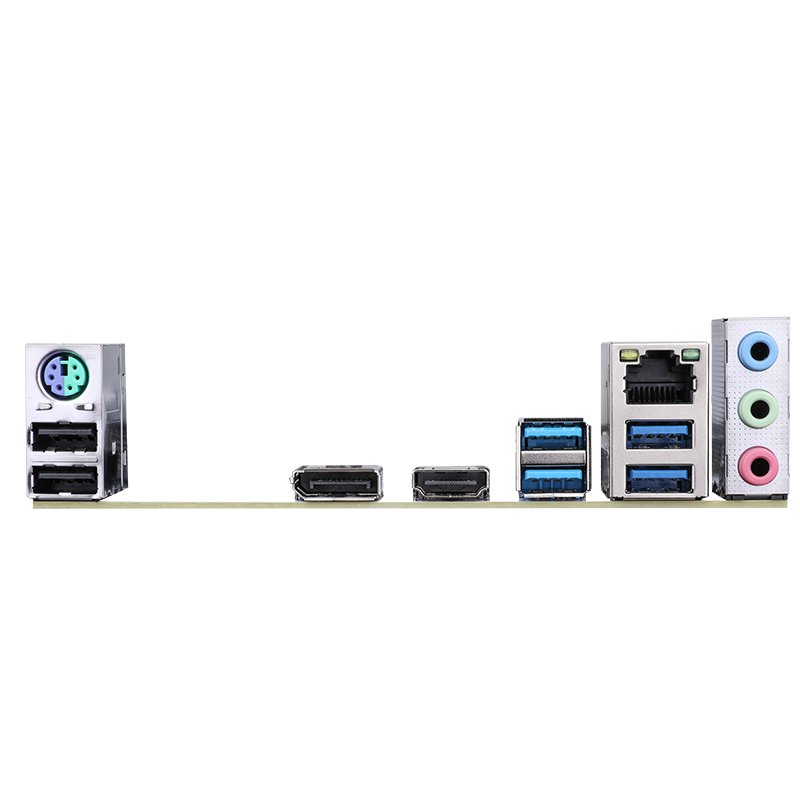

| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: Exclusive custom frost motherboard for the Tomahawk series Equipped with 2.5G high-speed network card Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces Provide 2 USB 2.0 interfaces Provide 2 PCIe 4.0 x4 M.2 SSD slots Provide 2 5V 3-pin ARGB pins supporting iGame Center light effect control software Provide HDMI+DP display interface Support iGame Center lighting effect control software which can synchronously adjust the lighting effects of heat sinks cooling fans and memory Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded |
