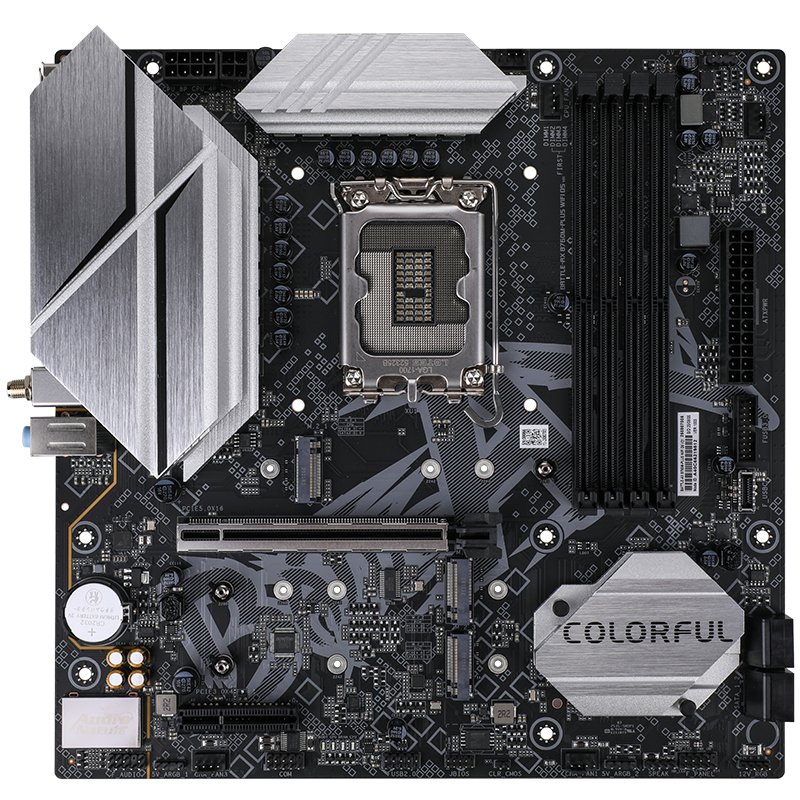

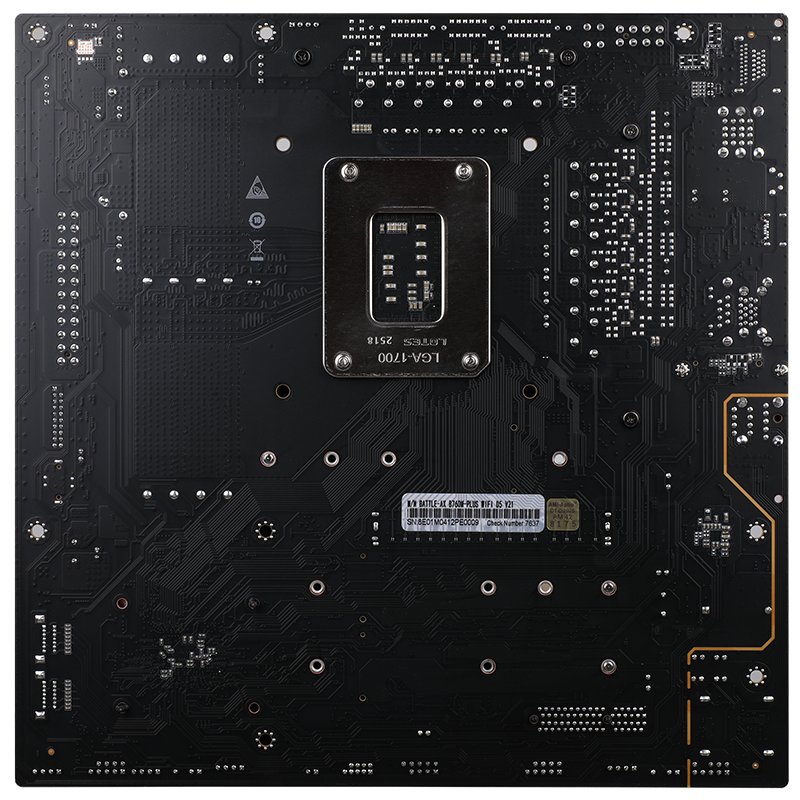

Colorful BATTLE-AX B760M-PLUS WIFI D5 V21
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory4× DDR5 · max 192 GB · 7200 MT/s
M.2 Slots3×
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Power Stages12+1+1 phases · 60 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7200 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 10 Gbps |
Power Delivery (VRM)
| Phase Layout | 12+1+1 |
|---|---|
| CPU Phases | 12 |
| SoC Phases | 1 |
| Misc Phases | 1 |
| Amps per Phase | 60 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

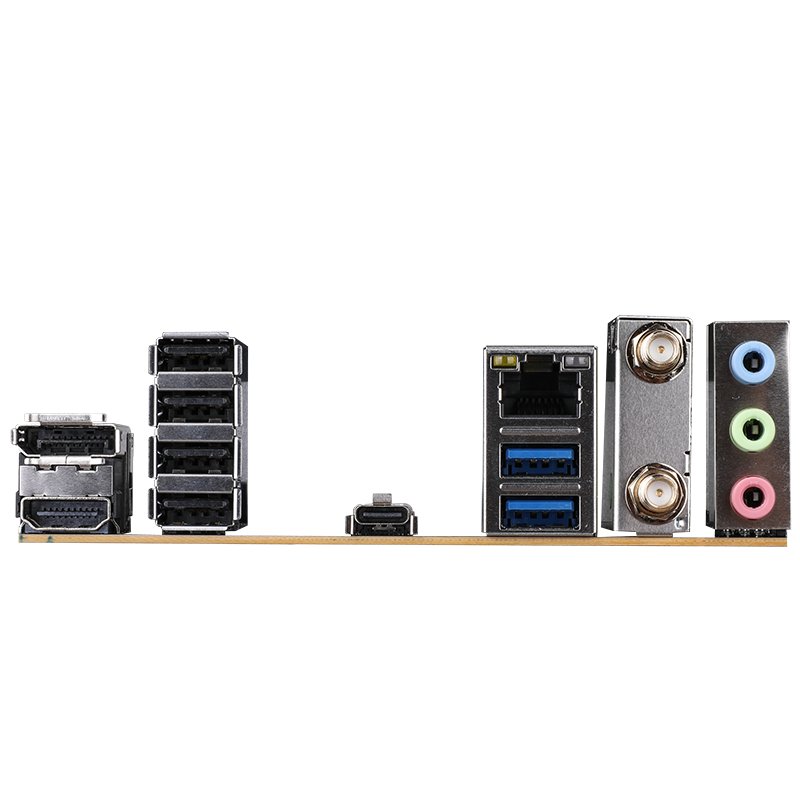

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 10Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps 1× USB-C 5Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: BATTLE-AX series features custom frost cooling armor with a full-cover condenser for enhanced heat dissipation. Enhanced 12+1+1 phase power supply (Dr MOS 60A) Three PCIe 4.0 x4 M.2 SSD slots One USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear ports Equipped with a Realtek 2.5G high-speed wired network card and an AX101 WiFi 6 wireless card supporting Bluetooth 5.2 Three 5V 3-pin ARGB headers compatible with iGame Center lighting control software for simultaneous adjustment of the radiator cooling fan and memory lighting effects Six major protection technologies ensure more stable operation 200 rigorous testing steps for guaranteed quality Fully upgraded PCB atomization technology |
