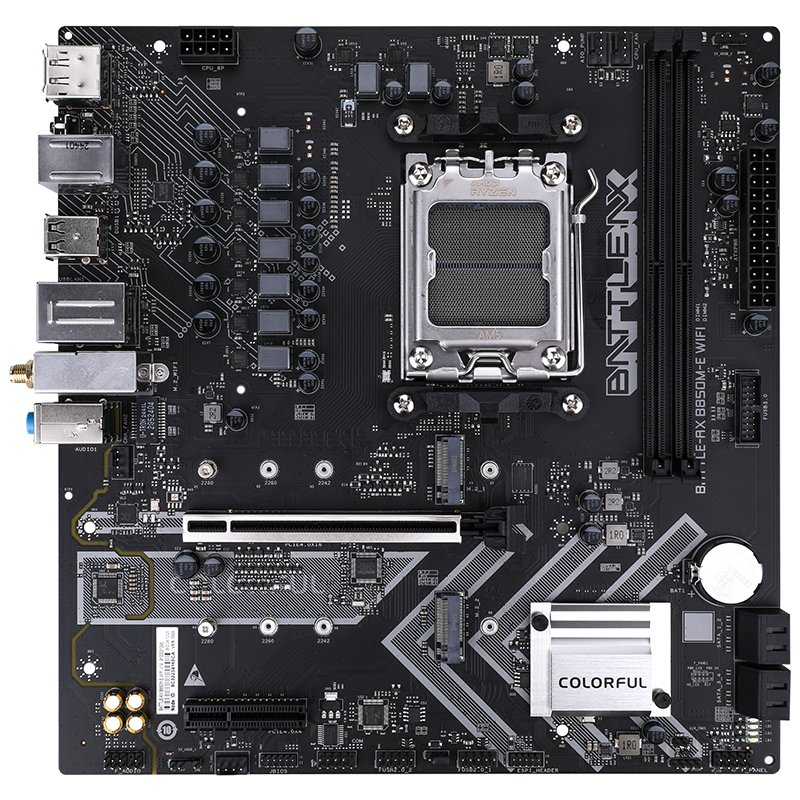

Colorful BATTLE-AX B850M-E WIFI V14
B850 · AM5 · mATX
General
| Chipset | B850 |
|---|---|
| Socket | AM5 |
| Form Factor | mATX |
Highlights
Memory2× DDR5 · max 96 GB · 7600 MT/s
M.2 Slots2× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 4.0
Fastest USBUSB 5 Gbps
NetworkLAN 1 Gbps · Wi-Fi 6 · Bluetooth 5.2
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7600 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
|---|---|
| LAN Chip | RTL8111K 1000M LAN, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |
| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× HDMI 1× DisplayPort 1× 1 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: Provides 2 M.2 SSD slots Equipped with Gigabit wired network card and AX200 WiFi 6 wireless network card supports Bluetooth 5.2 Supports iGame Center lighting control software which can adjust the lighting effects of radiator cooling fan and memory synchronously I/O backplane supports one-click BIOS upgrade function Six major protection technologies more stable product operation 200 process strict testing quality guaranteed PCB atomization process fully upgraded |
