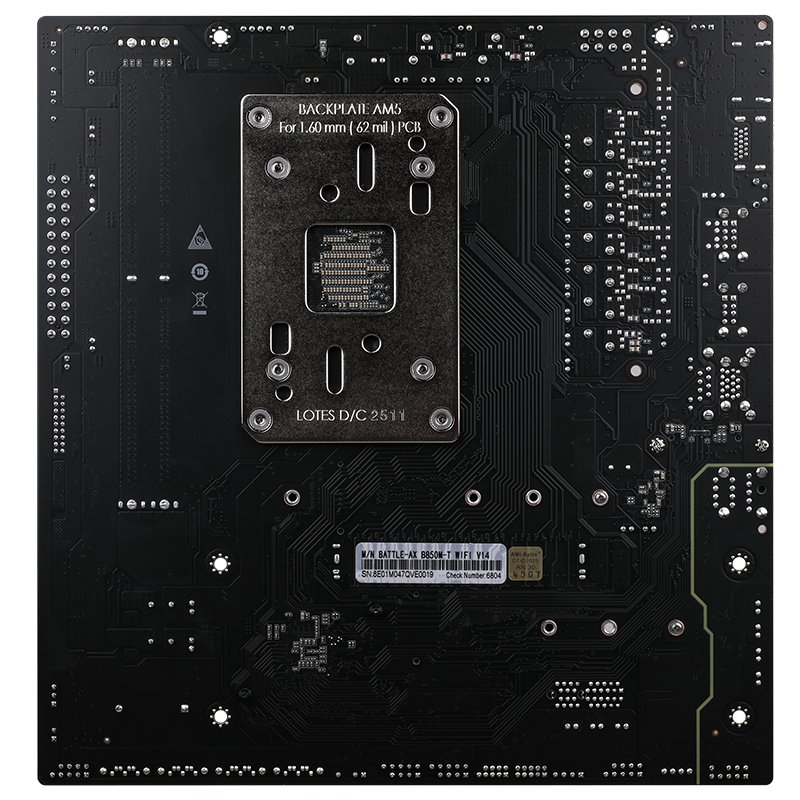

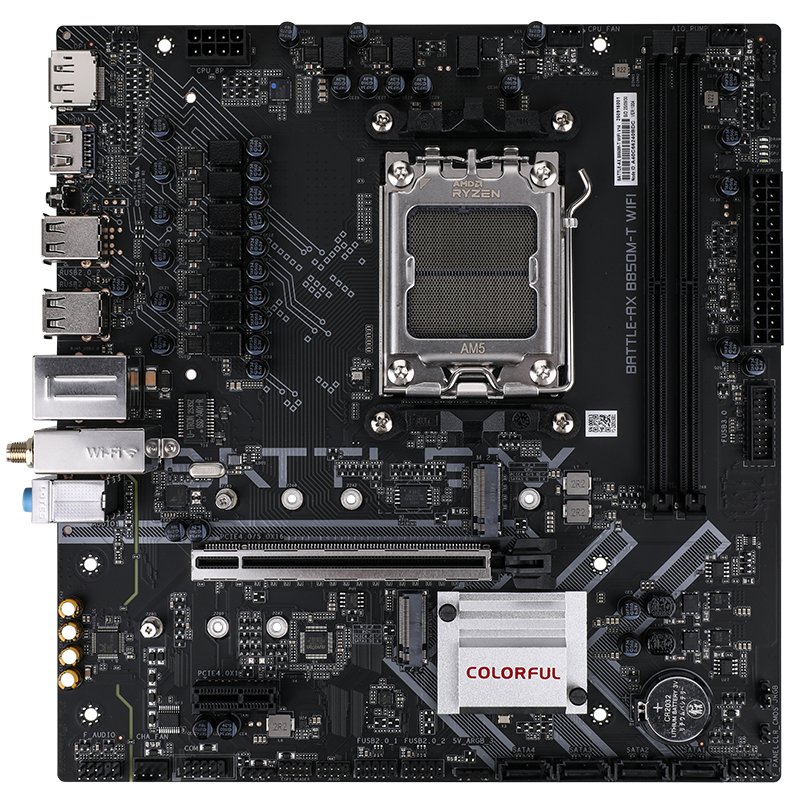

Colorful BATTLE-AX B850M-T WIFI Ver1.4
B850 · AM5 · Micro-ATX
General
| Chipset | B850 |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR5 · max 96 GB · 7200 MT/s
M.2 Slots2× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6E · Bluetooth 5.3
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7200 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 5.0 x16 slot 1 PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6E · Bluetooth 5.3 |

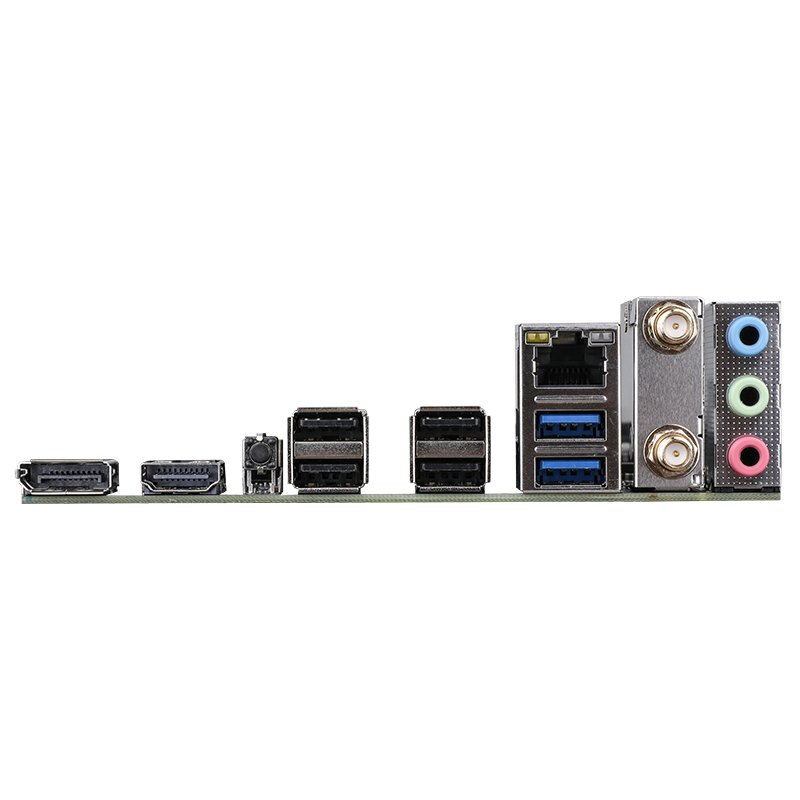

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 2× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: Provides two M.2 SSD slots. Equipped with a 2.5G wired network card and WiFi 6E wireless network card and supports Bluetooth 5.3. Supports iGame Center lighting control software allowing synchronized adjustment of the lighting effects of the heatsink cooling fans and memory. I/O backplate supports one-click BIOS upgrade. Six protection technologies ensure more stable product operation. |
