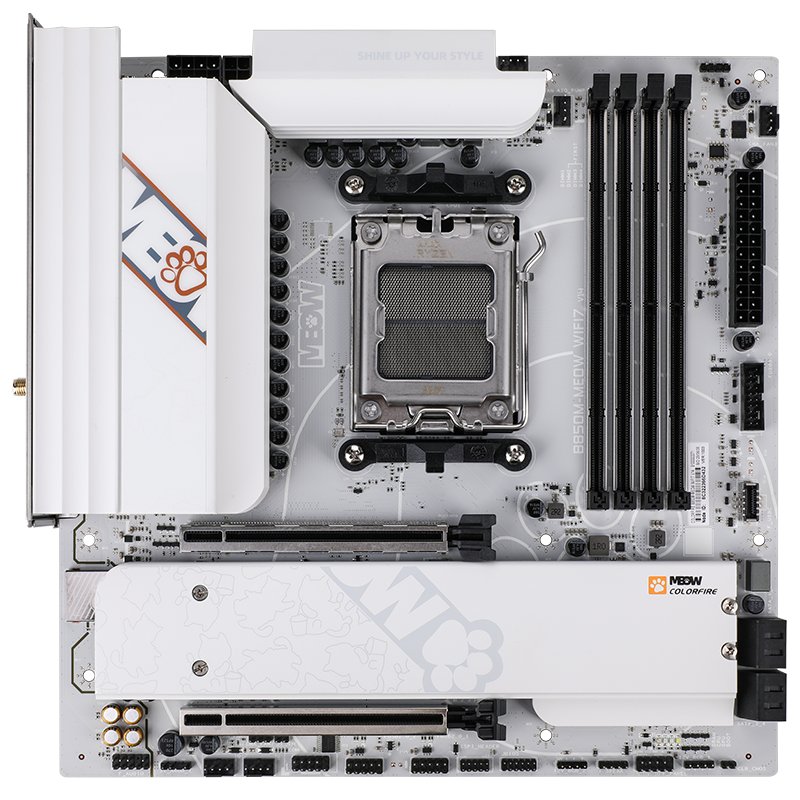

Colorful COLORFIRE B850M-MEOW WIFI7 V14

B850 · AM5 · Micro-ATX

General

Memory4× DDR5 · max 192 GB · 8000 MT/s

M.2 Slots2× (1× PCIe 5.0)

GPU Slots2× x16 · PCIe 5.0

Fastest USBUSB 10 Gbps

NetworkLAN 5 Gbps · Wi-Fi 7 · Bluetooth 5.4

Power Stages10+2+1 phases · 55 A

Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

PCIe Version	5.0
PCIe x16 Slots	2
PCIe x1 Slots	0
PCIe Slot Modes	1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification)
M.2 Slots	M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4
SATA Ports	4
Highest USB	USB 10 Gbps

Audio Codec	Realtek ALC897
LAN Chip	RTL8126-CG
Wireless	Wi-Fi 7 · Bluetooth 5.4

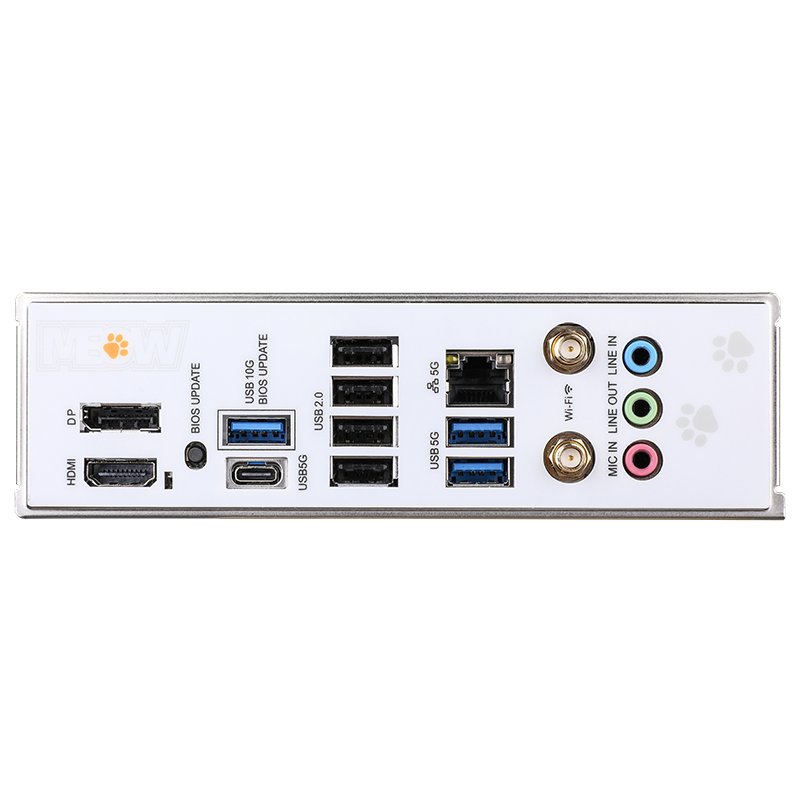

Rear I/O	4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 5Gbps Type-C 1× USB 10Gbps Type-A 1× HDMI 1× DisplayPort 1× 5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button
Front Panel Headers	4× USB 2.0 2× USB-A 5Gbps 1× USB-C 5Gbps HD Audio (front audio)
Case Fan Headers	4× 4-pin PWM fan 1× Pump (liquid cooling)
RGB Header	2× ARGB (5V 3-pin) 2× RGB (12V 4-pin)
BIOS Chip	256 MB
Special Features	Feature Highlights: COLORFIRE series features a custom frost heatsink with a full-cover condenser for enhanced heat dissipation. Adopts a 10+2+1 phase enhanced power design and features F.C.C ferrite chokes (Dr MOS 55A). Provides one PCIe 5.0 x4 M.2 SSD and one PCIe 4.0 x4 M.2 SSD slot. Provides one USB 3.2 Gen 1 5Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear port. Equipped with a Realtek 5G high-speed wired network card and WiFi 7 wireless network card and supports Bluetooth 5.4. Supports iGame Center lighting control software for simultaneous adjustment of the radiator cooling fan and memory lighting. The I/O backplane supports one-click BIOS upgrades.
