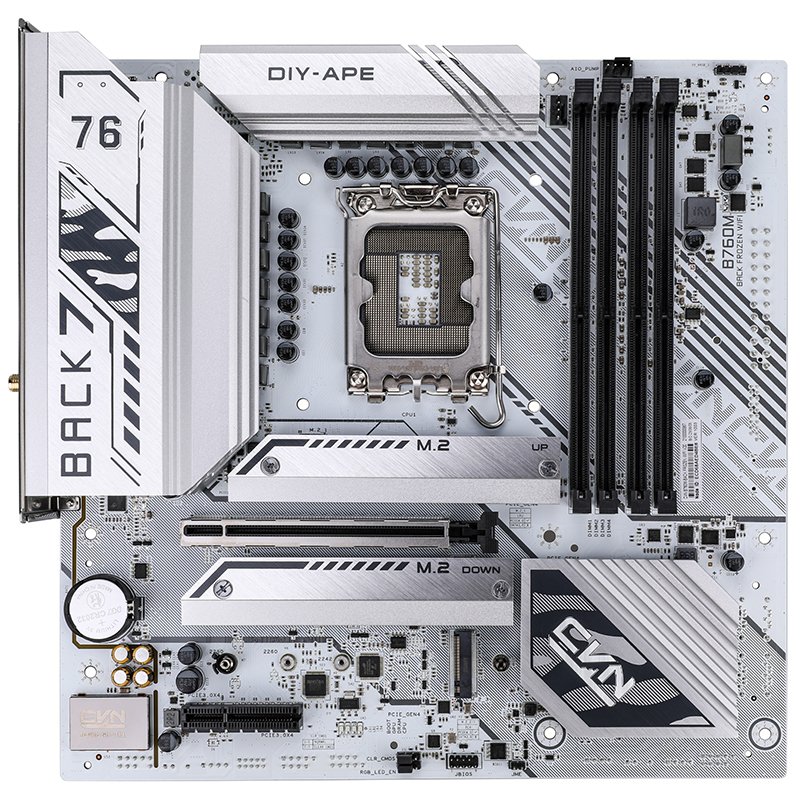

Colorful CVN B760M-BACK FROZEN WIFI V20
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory4× DDR4 · max 128 GB · 4800 MT/s
M.2 Slots3×
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Power Stages12+1+1 phases · 55 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4800 MT/s |
| Max RAM | 128 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (gen estimated) M.2_2: PCIe 4.0 x4 (gen estimated) M.2_3: PCIe 4.0 x4 (gen estimated) |
| SATA Ports | 4 |
| Highest USB | USB 10 Gbps |
Power Delivery (VRM)
| Phase Layout | 12+1+1 |
|---|---|
| CPU Phases | 12 |
| SoC Phases | 1 |
| Misc Phases | 1 |
| Amps per Phase | 55 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125 |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

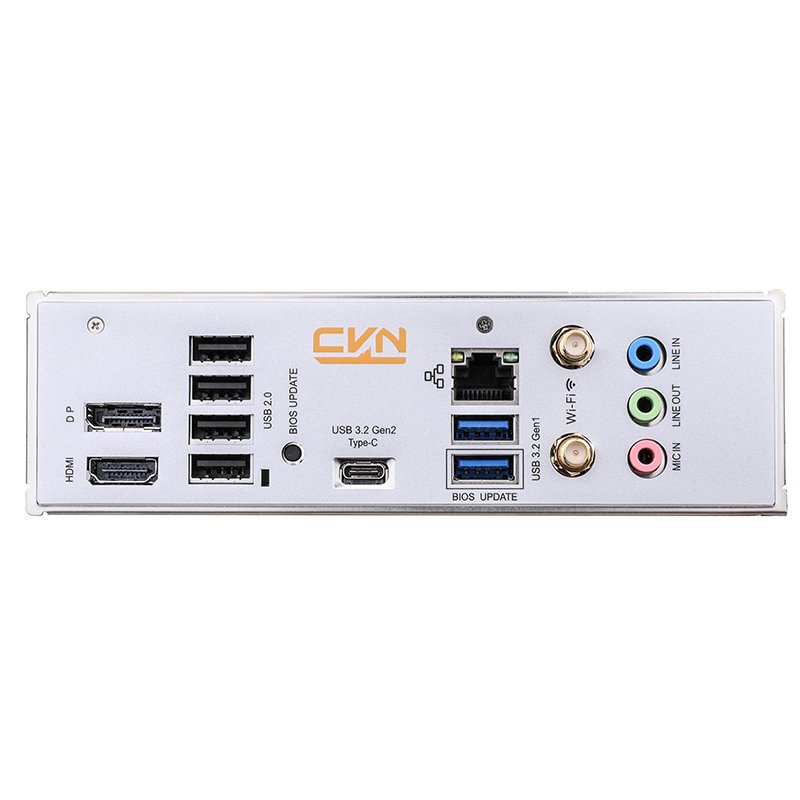

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 10Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps 1× USB-C 5Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 128 MB |

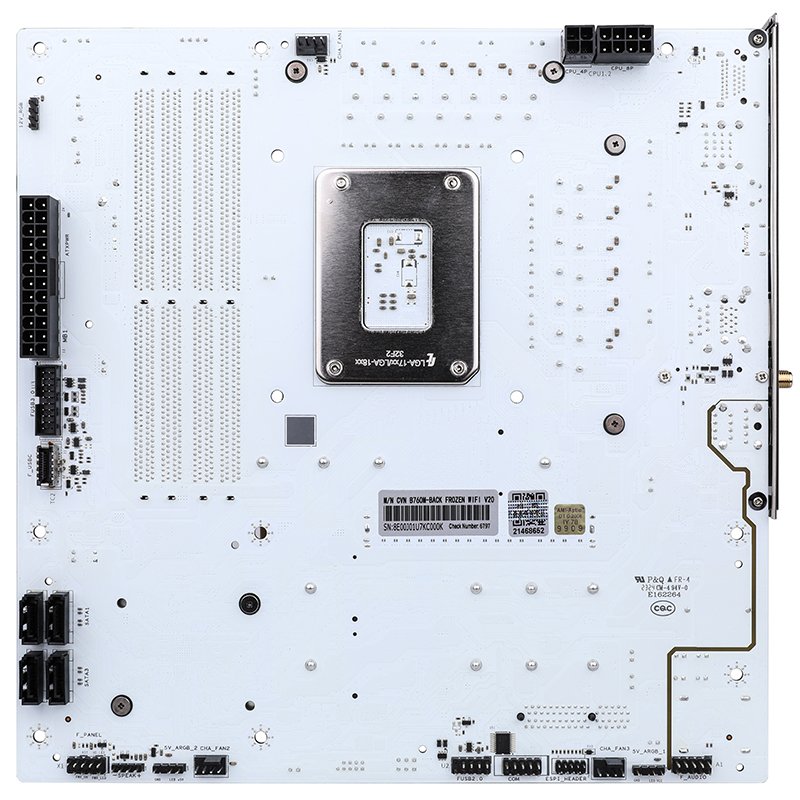

| Special Features | Feature Highlights: CVN series exclusive customized white motherboard Backplug interface design CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation 12+1+1 phase reinforced power supply F.C.C ferrite inductor (Dr MOS 55A) Provide 3 PCIe 4.0 x4 M.2 SSD slots Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card supporting Bluetooth 5.2 Support the iGame Center light efficiency control software which can synchronously adjust the light efficiency of the radiator cooling fan and memory The I/O backplane supports one click BIOS upgrade Six protection technologies more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded |
