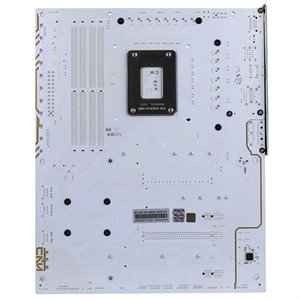

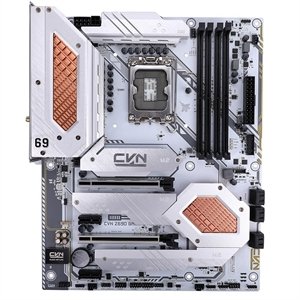

Colorful CVN Z690 GAMING FROZEN V21
Z690 · LGA1700 · 305 X 245 MM，ATX
General
| Chipset | Z690 |
|---|---|
| Socket | LGA1700 |
| Form Factor | 305 X 245 MM，ATX |
Highlights
Memory4× DDR4 · max 128 GB · 4800 MT/s
M.2 Slots3×
GPU Slots1× x16 · PCIe 5.0
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4800 MT/s |
| Max RAM | 128 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 2 |
| PCIe Slot Modes | 1*PCI Express 5.0X16 slot 1*PCI Express3.0X4 slot 2*PCI Express3.0X1 slost 3*M.2 SSD slots(*silk-screen"M2_1" support PCIE Gen4 x4 SSD,silk-screen"M2_2" support PCIE Gen3 x4/SATA,silk-screen"M2_3" support PCIE Gen4 x4 SSD,all support 2242/2260/2280 size SSD) |
| M.2 Slots | M.2_M2_1: PCIe 4.0 x4 M.2_M2_2: PCIe 3.0 x4 · SATA supported M.2_M2_3: PCIe 4.0 x4 |
| SATA Ports | 6 |
| RAID | 0,1,5,10 |
Connectivity and Audio
| Audio Codec | 8-Channel High Definition audio CODEC |
|---|---|
| LAN Chip | Intel 2.5Gbit LAN |
| BIOS Chip | 128 MB |

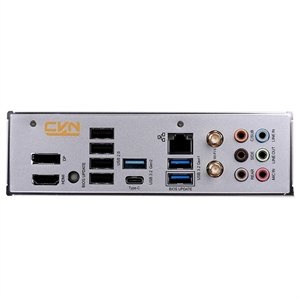

| Special Features | Feature Highlights: Supports 12th Gen Intel® Core Processors (Socket 1700) 4* DIMMS ，DDR4-4800(OC)/4600(OC)/4266(OC)/4000(OC))/3733(OC)/3600(OC)/3200/3000/2800/2666/2400 MHz (OC support) 1*PCI Express 5.0x16 slot 6*SATA3.0 ports 3*M.2 slots Intel 2.5Gbit LAN AX201 WiFi 6 wireless network card support Bluetooth 5.1 8-Channel High Definition audio CODEC DP+HDMI ports Rear USB -1*USB 3.2 Gen 2x2 Type-C port -1*USB 3.2 Gen 2 Type-A port -2*USB 3.2 Gen 1 Type-A ports -4*USB 2.0 ports Front USB -1*USB 3.2 Gen 2 Type-C port (one header) -2*USB 3.2 Gen 1 Type-A ports (one header) -4*USB 2.0 ports (two headers) 2*5V 3-pin ARGB headers，2*12V 4-pin RGB headers |
