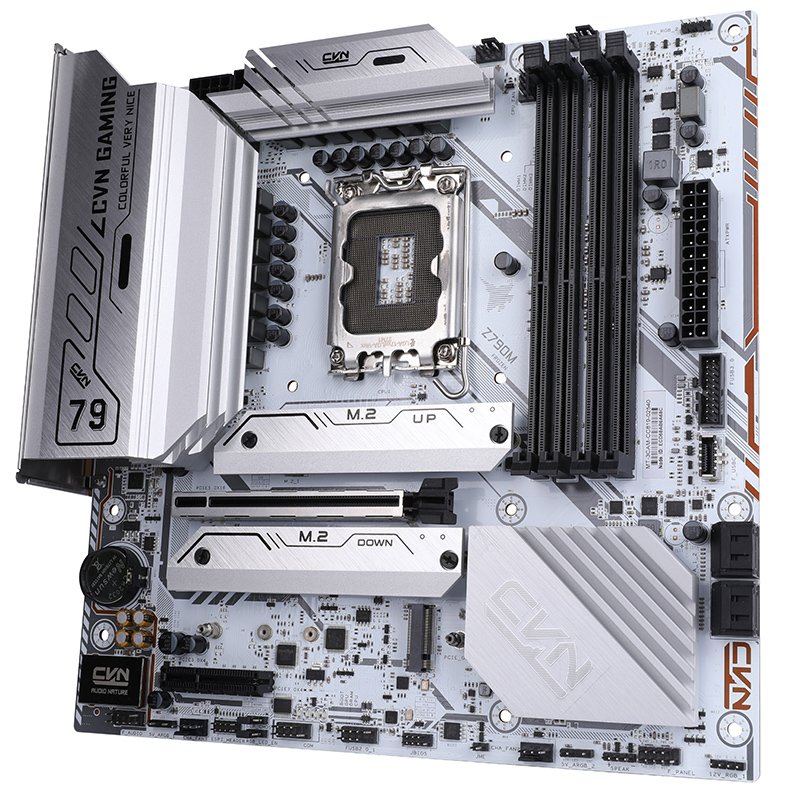

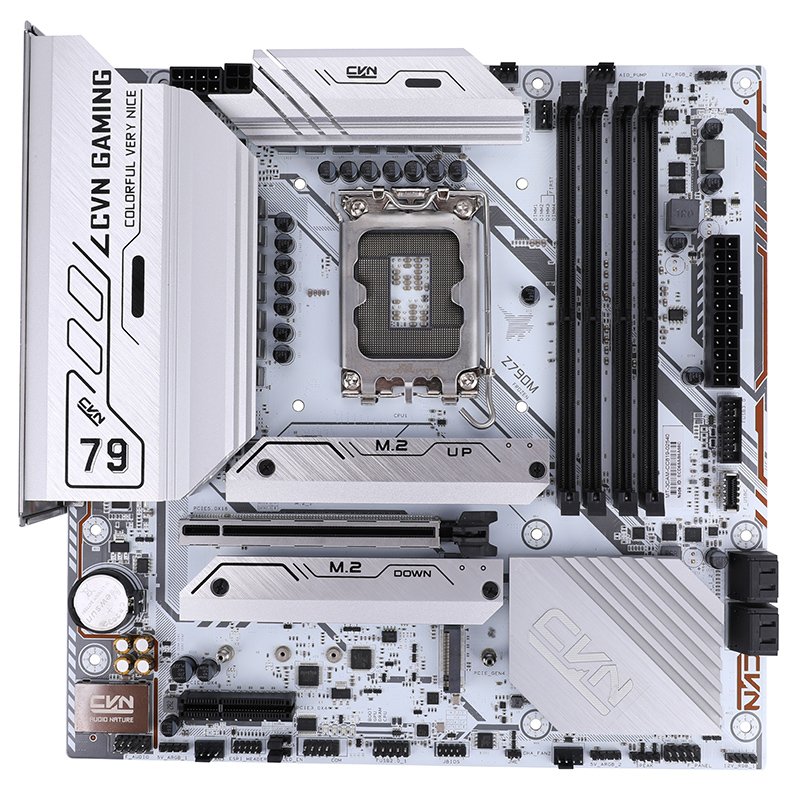

Colorful CVN Z790M FROZEN V20

Z790 · LGA1700 · Micro-ATX

General

Memory4× DDR4 · max 128 GB · 4800 MT/s

M.2 Slots3×

GPU Slots1× x16 · PCIe 5.0

Fastest USBUSB 10 Gbps

NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2

Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

PCIe Version	5.0
PCIe x16 Slots	1
PCIe x1 Slots	0
PCIe Slot Modes	1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
M.2 Slots	M.2_1: PCIe 4.0 x4 (gen estimated) M.2_2: PCIe 4.0 x4 (gen estimated) M.2_3: PCIe 4.0 x4 (gen estimated)
SATA Ports	4
Highest USB	USB 10 Gbps

Audio Codec	5.1-Channel High Definition audio CODEC
LAN Chip	RTL8125
Wireless	Wi-Fi 6 · Bluetooth 5.2

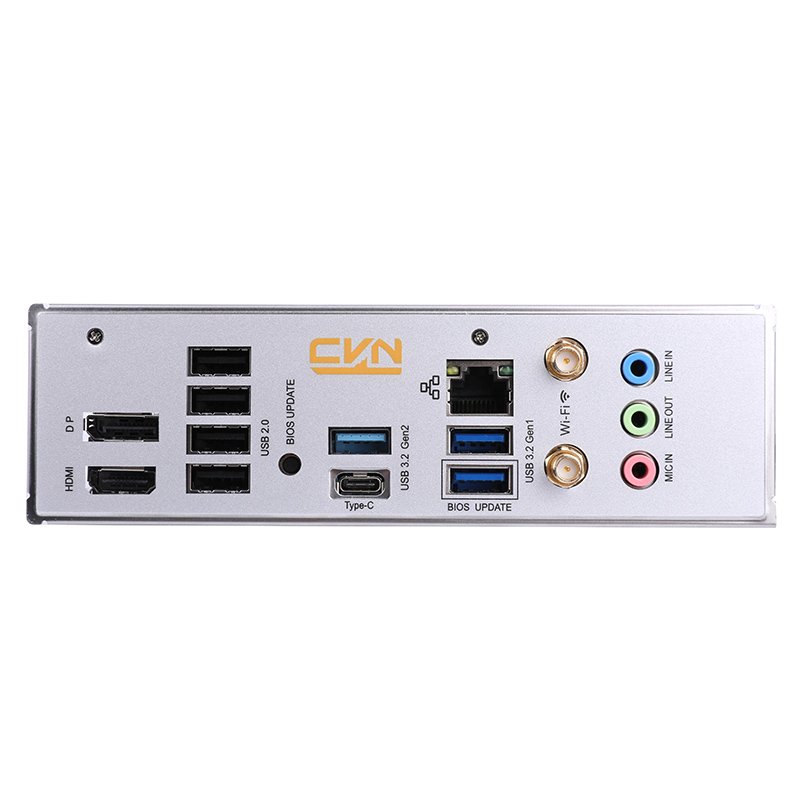

Rear I/O	4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 10Gbps Type-A 1× USB 10Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm)
Front Panel Headers	HD Audio (front audio)
Case Fan Headers	4× 4-pin PWM fan 1× Pump (liquid cooling)
RGB Header	2× ARGB (5V 3-pin) 2× RGB (12V 4-pin)
BIOS Chip	128 MB
Special Features	Feature Highlights: CVN series customized white motherboard CVN series customized frost cooling armor 12+1 phase digital power supply design (Dr MOS 55A) Provides 3 PCIe 4.0 x4 M.2 SSD slots Provide one USB 3.2 Gen 2 10Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card supporting Bluetooth 5.2 Support the iGame Center light efficiency control software which can synchronously adjust the light efficiency of the radiator cooling fan and memory The I/O panel supports one click BIOS upgrade Six protection technologies more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded
