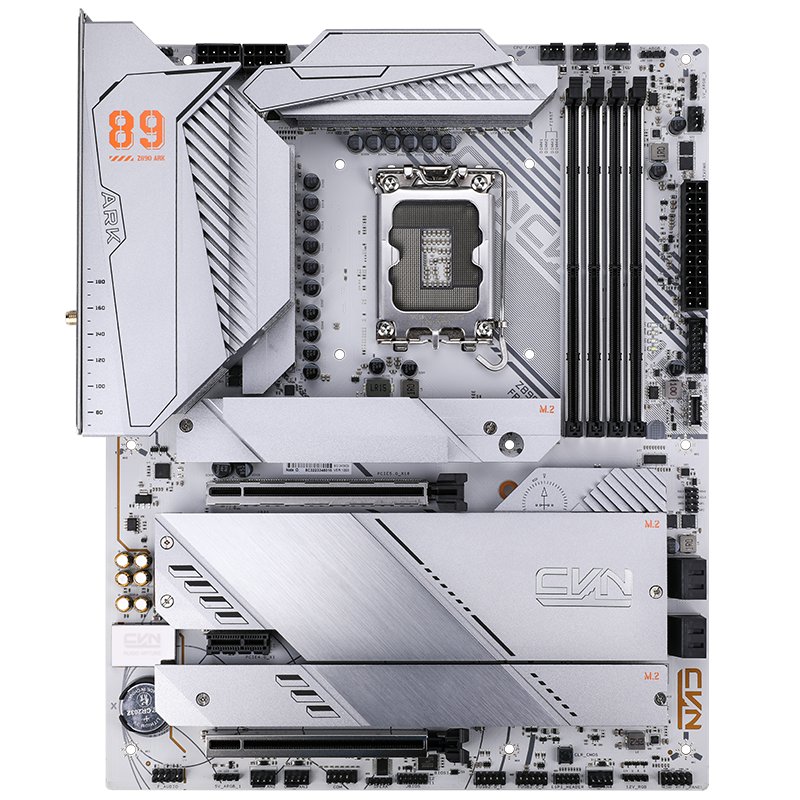

Colorful CVN Z890 ARK FROZEN V20
Z890 · LGA1851 · ATX
General
| Chipset | Z890 |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
Highlights
Memory4× DDR5 · max 192 GB · 8400 MT/s
M.2 Slots5× (1× PCIe 5.0)
GPU Slots2× x16 · PCIe 5.0
Fastest USBUSB4 (40 Gbps)
NetworkLAN 2.5 Gbps · Wi-Fi 7 · Bluetooth 5.4
Power Stages18+1+2 phases · 90 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 8400 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification) 1×PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 M.2_5: PCIe 4.0 x4 · SATA supported |
| SATA Ports | 4 |
| Highest USB | USB4 (40 Gbps) |
Power Delivery (VRM)
| Phase Layout | 18+1+2 |
|---|---|
| CPU Phases | 18 |
| SoC Phases | 1 |
| Misc Phases | 2 |
| Amps per Phase | 90 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 7 · Bluetooth 5.4 |

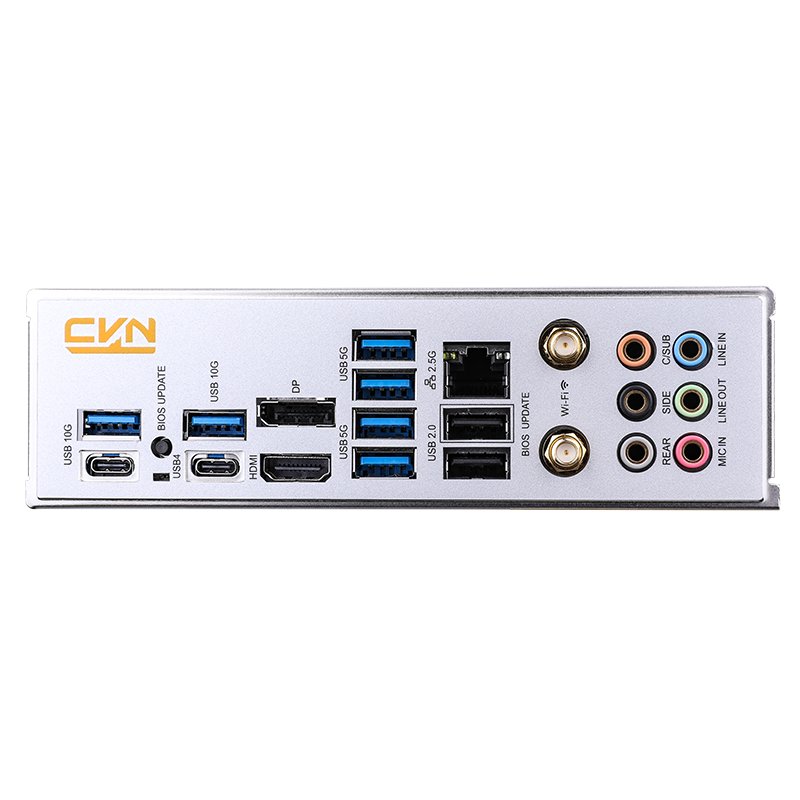

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 2× USB 10Gbps Type-A 1× USB 10Gbps Type-C 1× USB4 40Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 6× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps 1× USB-C 20Gbps HD Audio (front audio) |
| Case Fan Headers | 6× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: CVN series exclusive customized white motherboard CVN series customized frost heat dissipation armor with full-cover condenser to enhance heat dissipation Support dual-channel DDR5-8400 (OC) MHz memory Adopt 18+1+1+1 phase enhanced power supply design (Dr MOS 90A) Provide 1 PCIe 5.0 x4 M.2 SSD slot and 4 PCIe 4.0 x4 M.2 SSD slots Provide 1 rear USB4 40Gbps Type-C high-speed interface (support video output, up to 4K 60Hz resolution) Provide 1 front USB 3.2 Gen 2x2 20Gbps Type-C high-speed interface (support PD3.0 @30W) Equipped with Realtek 2.5G high-speed wired network card and BE200 WiFi 7 wireless network card support Bluetooth 5.4 Support iGame Center lighting control software which can adjust the lighting effects of the radiator cooling fan and memory synchronously I/O backplane supports one-click BIOS upgrade function Six major protection technologies more stable product operation 200 processes strictly tested quality guaranteed PCB atomization process fully upgraded |
