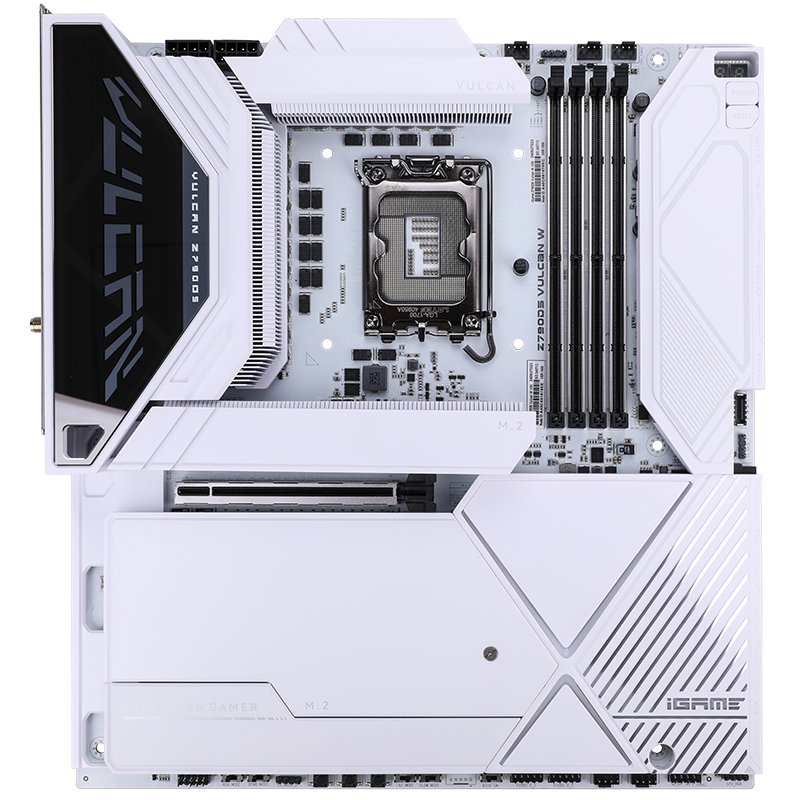

Colorful iGame Z790D5 VULCAN W V20
Z790 · LGA1700 · E-ATX
General
| Chipset | Z790 |
|---|---|
| Socket | LGA1700 |
| Form Factor | E-ATX |
Highlights
Memory4× DDR5 · max 192 GB · 7800 MT/s
M.2 Slots4× (1× PCIe 5.0)
GPU Slots2× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 5 Gbps + 2.5 Gbps · Wi-Fi 7 · Bluetooth 5.4
Power Stages19+1+1 phases · 105 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7800 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot (supports x16 mode or x8/x8 mode) 1×PCIe x16 slot (supporting PCIe 4.0 x4 specification) 1×PCIe 4.0 x4 slot (When the M.2_1 slot is using an M.2 hard drive, the PCIe 5.0 x16 slot will run at x8 mode) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 · SATA supported |
| SATA Ports | 6 |
| Highest USB | USB 10 Gbps |
Power Delivery (VRM)
| Phase Layout | 19+1+1 |
|---|---|
| CPU Phases | 19 |
| SoC Phases | 1 |
| Misc Phases | 1 |
| Amps per Phase | 105 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC1220 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 7 · Bluetooth 5.4 |

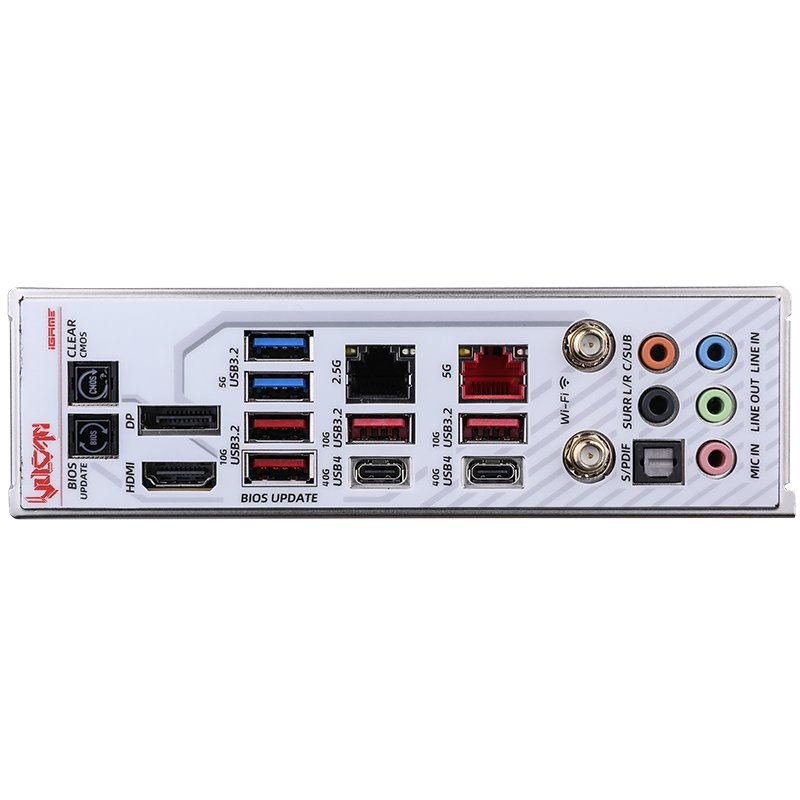

| Rear I/O | 2× USB 5Gbps Type-A 4× USB 10Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 1× 5 Gbps LAN 2× Wi-Fi antenna connector 5× Audio jacks (3.5 mm) 1× S/PDIF optical out BIOS Flashback button Clear CMOS button |
| Front Panel Headers | 4× USB 2.0 4× USB-A 5Gbps 1× USB-C 20Gbps HD Audio (front audio) |
| Case Fan Headers | 6× 4-pin PWM fan 2× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: iGame series exclusive customized Cyber God Suit Super Dimension Vulcan series motherboard iGame series customized Vulcan heat dissipation armor with full-coverage condenser to enhance heat dissipation Support dual-channel DDR5-7800 (OC) MHz memory Adopt 19+1+1 phase enhanced power supply design (Dr MOS 105A) Provide 1 PCIe 5.0 x4 M.2 SSD slot and 3 PCIe 4.0 x4 M.2 SSD slots Provide 1 front USB 3.2 Gen 2x2 20Gbps Type-C high-speed interface (support PD3.0 @60W) Provide 2 rear USB4 40Gbps Type-C interfaces (support video output, up to 4K 60Hz resolution) Equipped with Realtek 2.5G and 5G dual-speed wired network cards and BE200 WiFi 7 wireless network cards support Bluetooth 5.4 Support iGame Center lighting control software which can adjust the lighting effects of the radiator cooling fan and memory synchronously I/O backplane supports one-click BIOS upgrade function Six major protection technologies more stable product operation 200 processes strictly tested quality guaranteed PCB atomization process fully upgraded |
