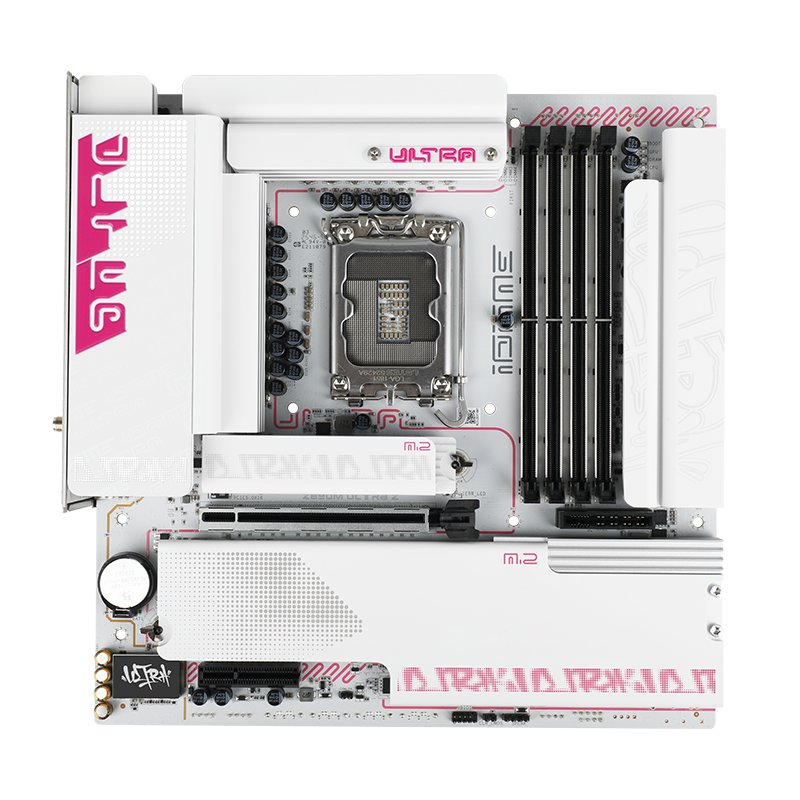

Colorful iGame Z890M ULTRA-Z V20
Z890 · LGA1851 · Micro-ATX
General
| Chipset | Z890 |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Supported CPU Families | Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard |
Highlights
Memory4× DDR5 · max 192 GB · 8400 MT/s
M.2 Slots4× (1× PCIe 5.0)
GPU Slots1× x16
Fastest USBUSB 20 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 7 · Bluetooth 5.4
Power Stages14+1+2 phases · 60 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 8400 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe x16 Slots | 1 |
|---|---|
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x4 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 20 Gbps |
Power Delivery (VRM)
| Phase Layout | 14+1+2 |
|---|---|
| CPU Phases | 14 |
| SoC Phases | 1 |
| Misc Phases | 2 |
| Amps per Phase | 60 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 7 · Bluetooth 5.4 |

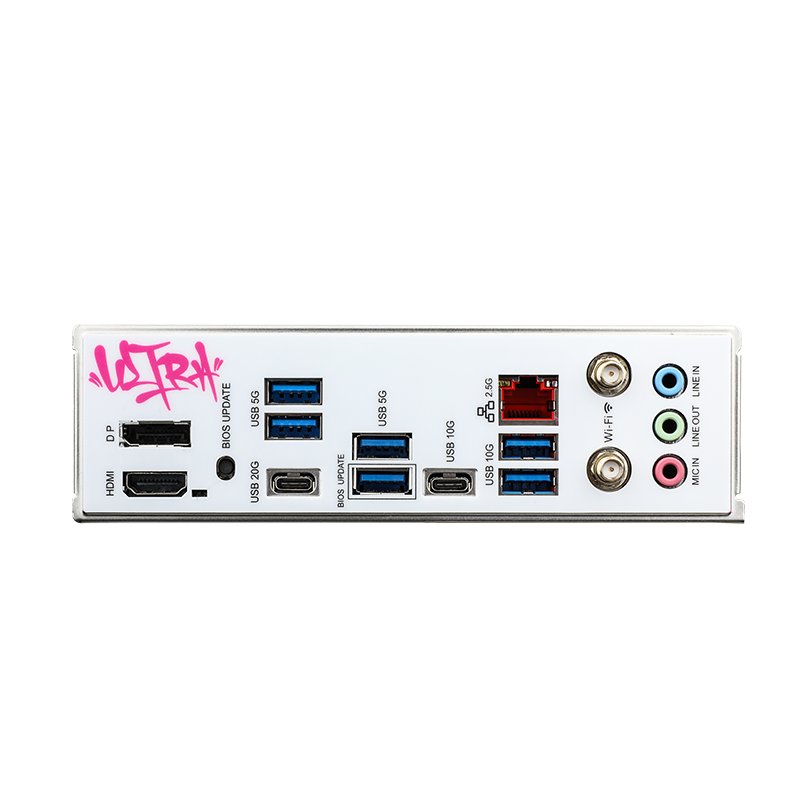

| Rear I/O | 4× USB 5Gbps Type-A 2× USB 10Gbps Type-A 1× USB 10Gbps Type-C 1× USB 20Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps 1× USB-C 10Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Dual BIOS | No |
