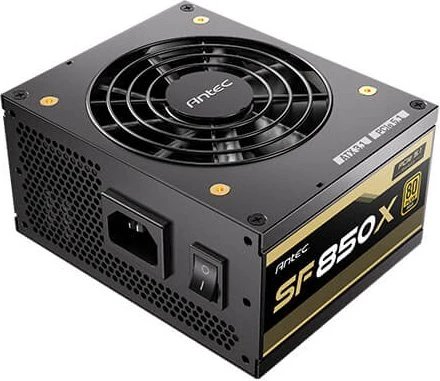

Antec SF 850X
850 W · 80 PLUS Gold · SFX 4.1
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | SFX 4.1 |
| Cable design | Fully modular |
| Form Factor | SFX |
| Warranty | 7 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Other Features | ErP Lot 6 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 125 mm |
|---|---|
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 1.79 kg |
| Color | Black |

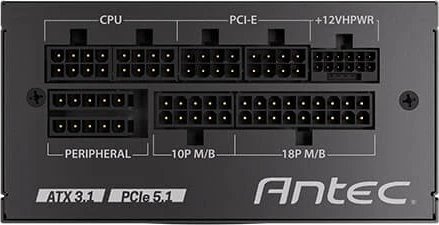

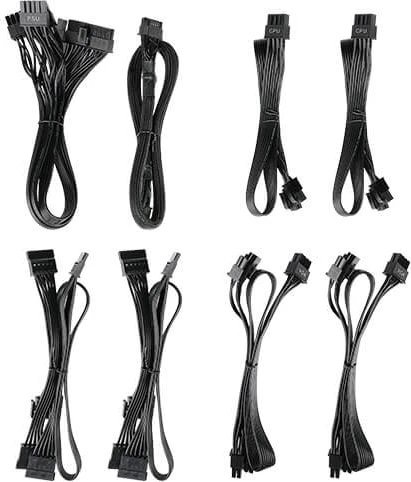

Cables and Connectors
| IDE / Molex | 2× |
|---|---|
| SATA | 6× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 90.5% |
|---|
Fan
| Fan size | 92 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
