ASRock Taichi TC-1300T
1300 W · 80 PLUS Titanium · ATX 3.1
Specifications
| Wattage | 1300 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Titanium |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 10 years |
| Graphics card connector | 2× 12V-2x6 (native) · 600 W |
| Other Features | 5V Boost Mode Semi-passive mode switchable |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 180 mm |
| Height | 86 mm |
| Color | Black |

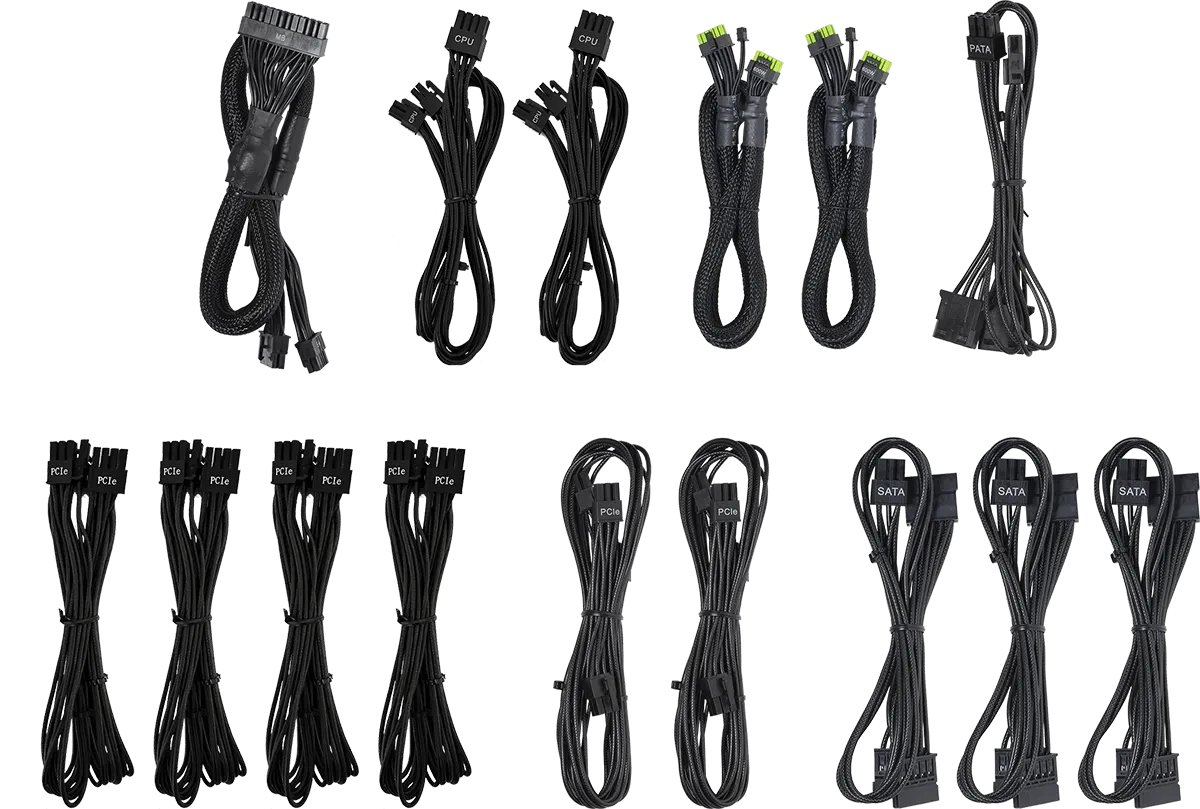

Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 9× |
| PCIe 6+2-pin | 8× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · cybenetics | 91.64% |
|---|---|
| 230V · cybenetics | 93.15% |
Noise
| 115V · cybenetics | 14.23 dB(A) |
|---|---|
| 230V · cybenetics | 12.74 dB(A) |
Fan
| Fan size | 135 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
