Asus ROG Thor Titanium III EVO 1600T3

1600 W · 80 PLUS Titanium · ATX 3.1

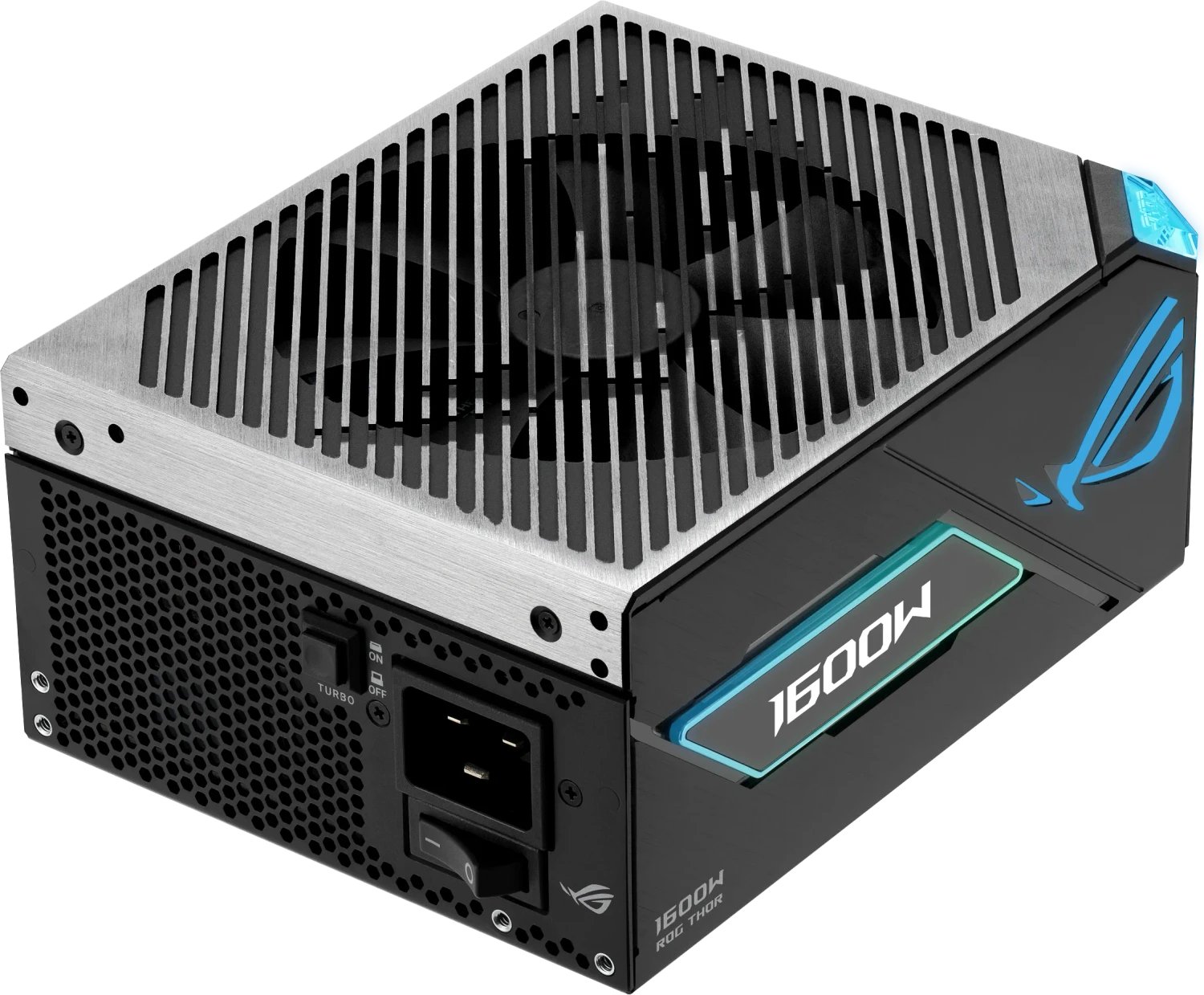

Asus ROG Thor Titanium III EVO 1600T3 product image

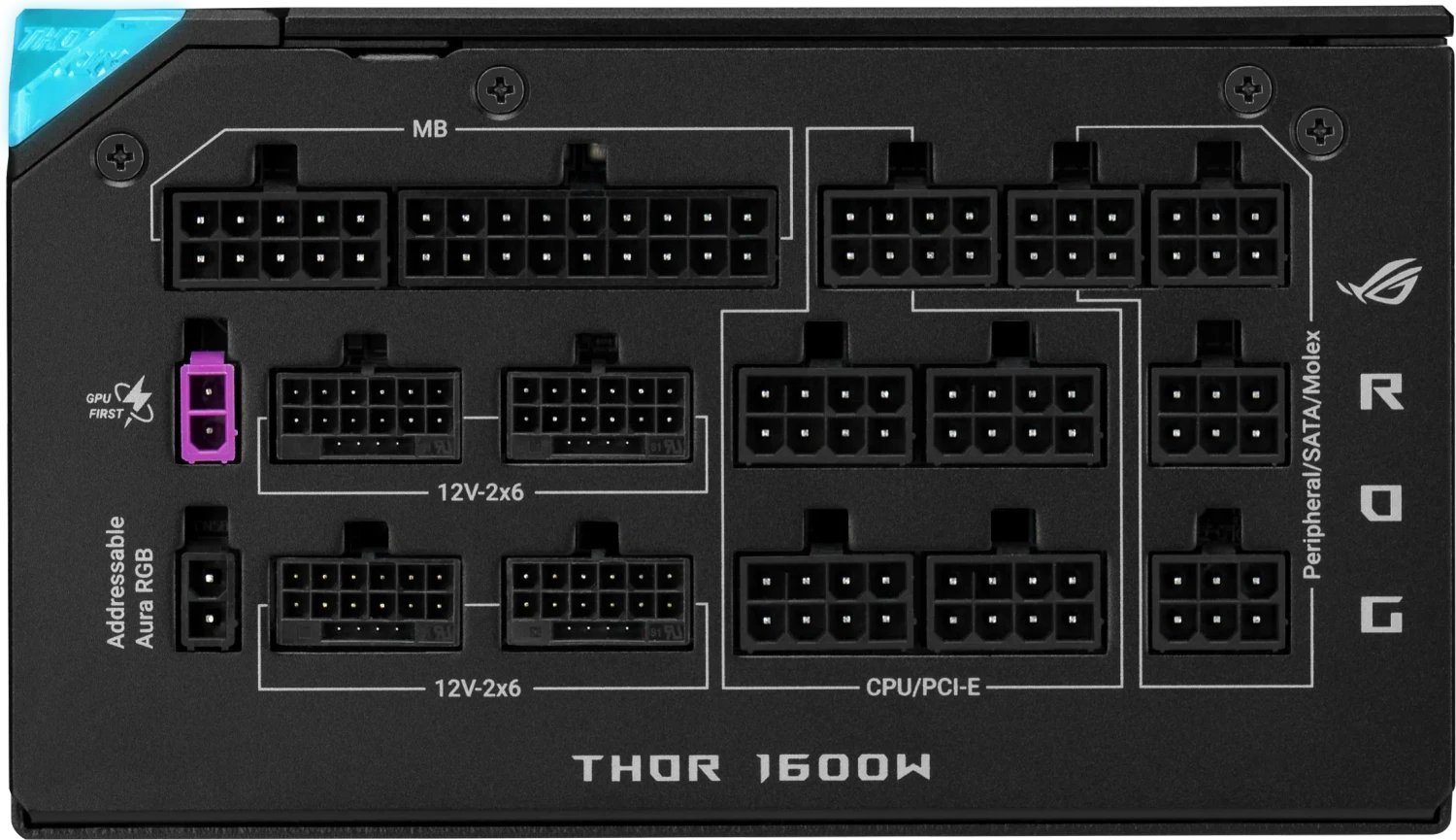

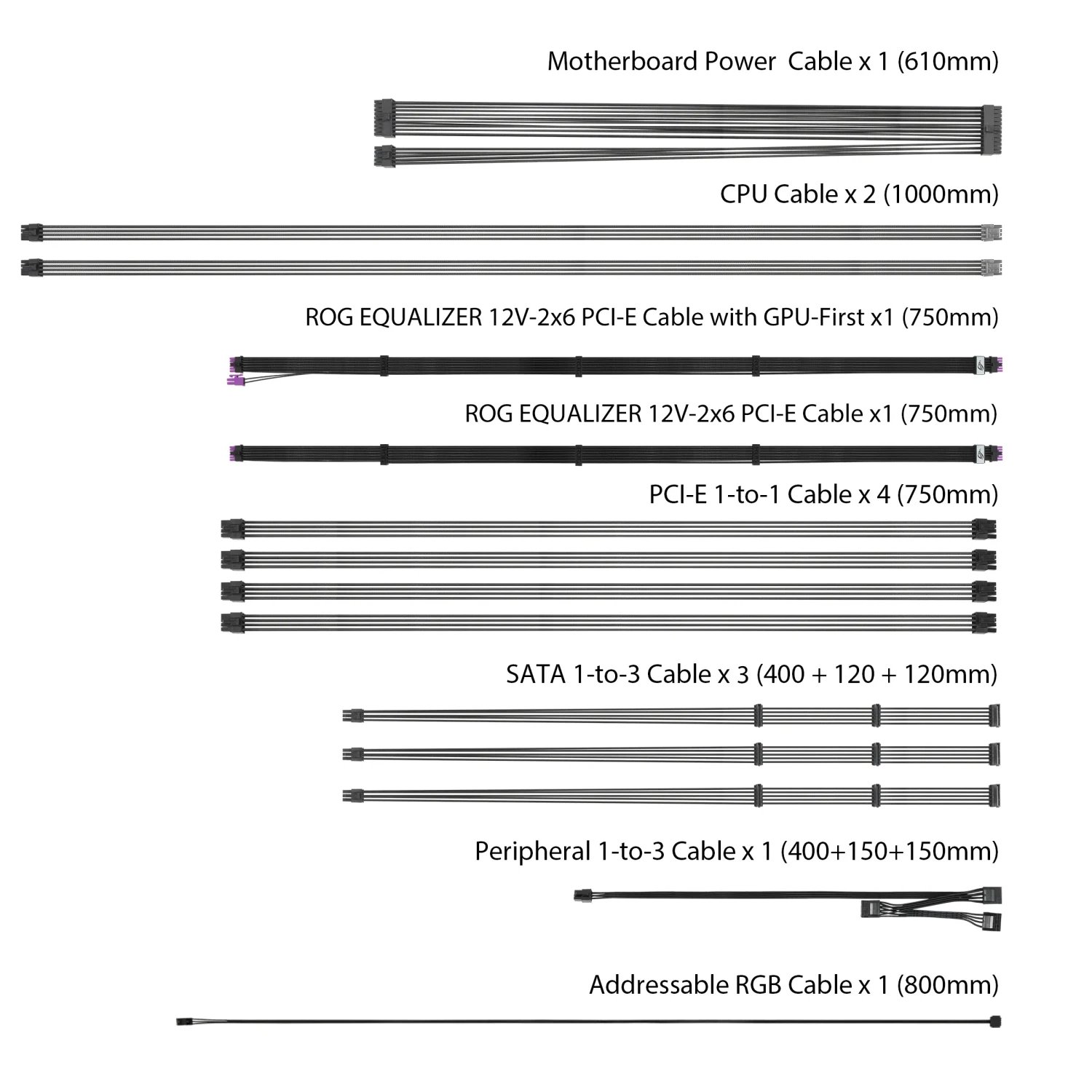

Asus ROG Thor Titanium III EVO 1600T3 product image 1Asus ROG Thor Titanium III EVO 1600T3 product image 2Asus ROG Thor Titanium III EVO 1600T3 product image 3

Specifications

Wattage1600 W
80 PLUS Certification80 PLUS Titanium
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
Warranty10 years
Graphics card connector2× 12V-2x6 (native) · 600 W
Other Features
3-pin RGB interface (+5V/DATA/GND)
RGB-illuminated housing
Display (OLED)
Includes ROG Equalizer 12V-2x6 PCIe power cable
Semi-passive mode switchable
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth200 mm
Height86 mm
Weight2.5 kg
ColorBlack

Cables and Connectors

IDE / Molex3×
SATA9×
PCIe 6+2-pin3×
CPU 4+4-pin (ATX12V)3×
RGB header (3-pin)1×
Motherboard 24-pin1×

Efficiency

· manufacturer92%
115V · 80plus_official88.26%

Fan

Fan size135 mm
Operating modeSemi-passive (stops at low load)
