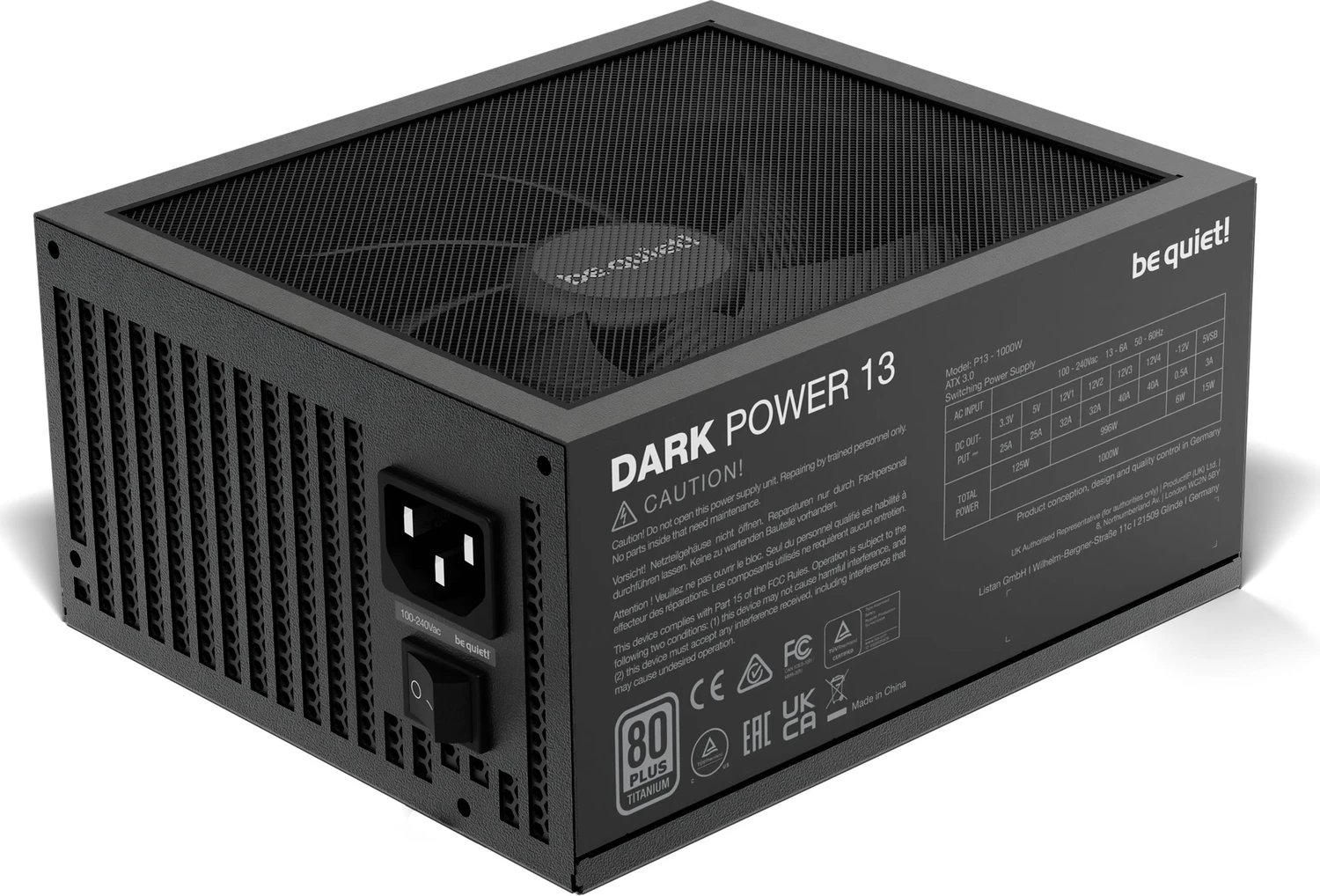

be quiet! Dark Power 13
1000 W · 80 PLUS Titanium · ATX 3.0
Specifications
| Wattage | 1000 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Titanium |
| ATX Standard | ATX 3.0 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 10 years |
| Graphics card connector | 1× 12VHPWR (via adapter) · 600 W |
| Other Features | ErP Lot 6 Supports Haswell C6/C7 low-power states Switchable multi-12V-rail mode |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 175 mm |
| Height | 86 mm |
| Weight | 2.03 kg |
| Color | Black |

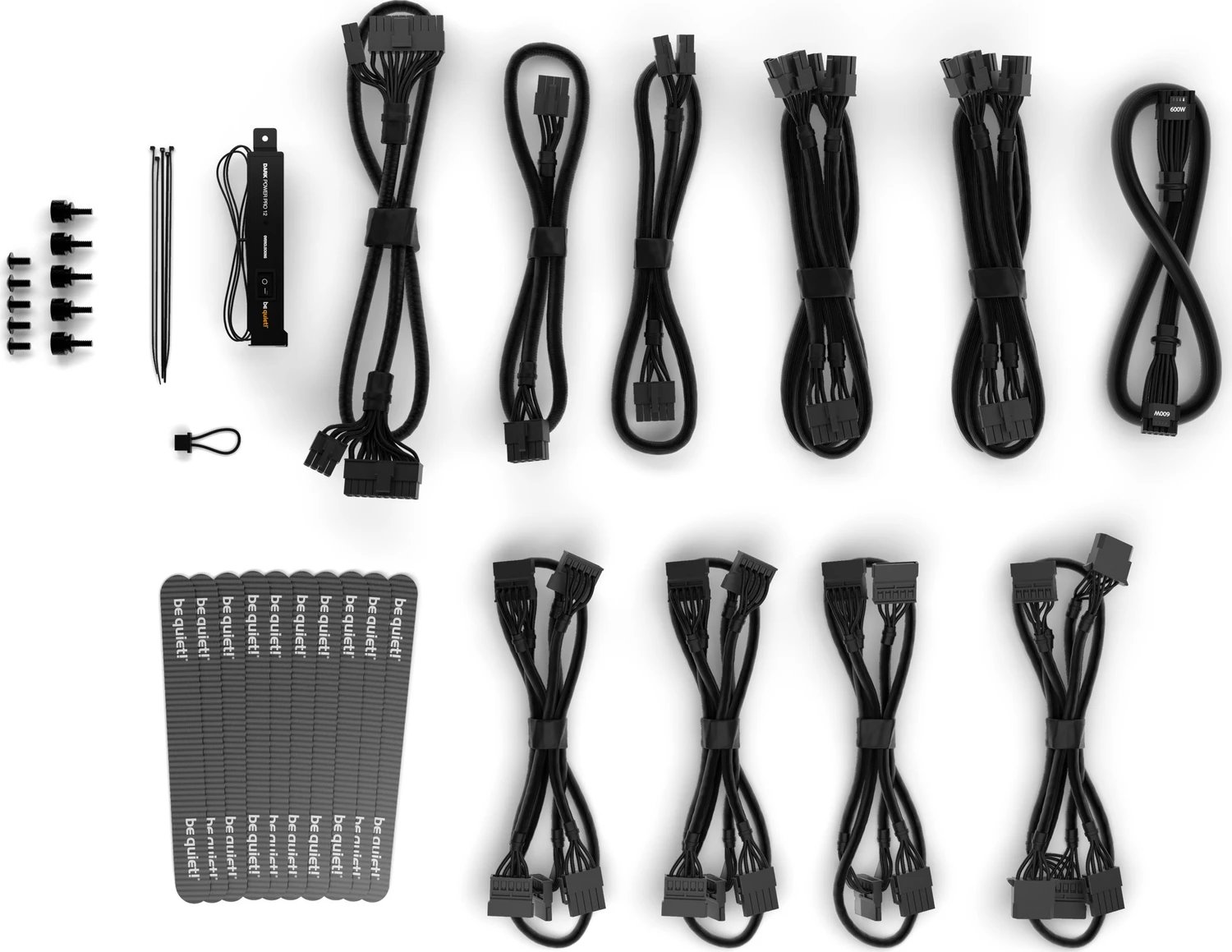

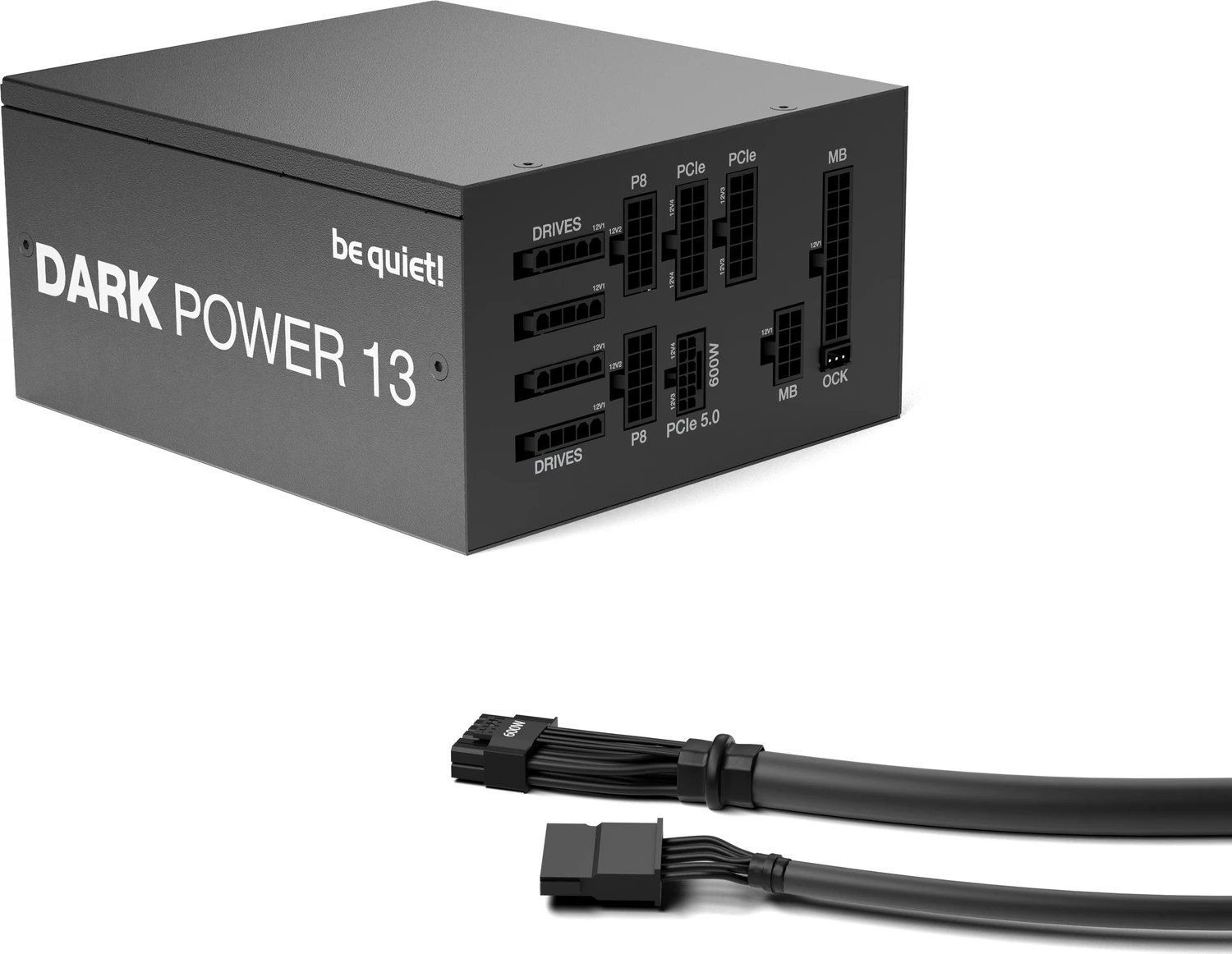

Cables and Connectors
| IDE / Molex | 2× |
|---|---|
| SATA | 13× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 93.14% |
|---|---|
| 115V · cybenetics | 91.34% |
| 230V · cybenetics | 93.44% |
Noise
| 115V · cybenetics | 17.93 dB(A) |
|---|---|
| 230V · cybenetics | 18.03 dB(A) |
Fan
| Fan size | 135 mm |
|---|---|
| Operating mode | Always on |
