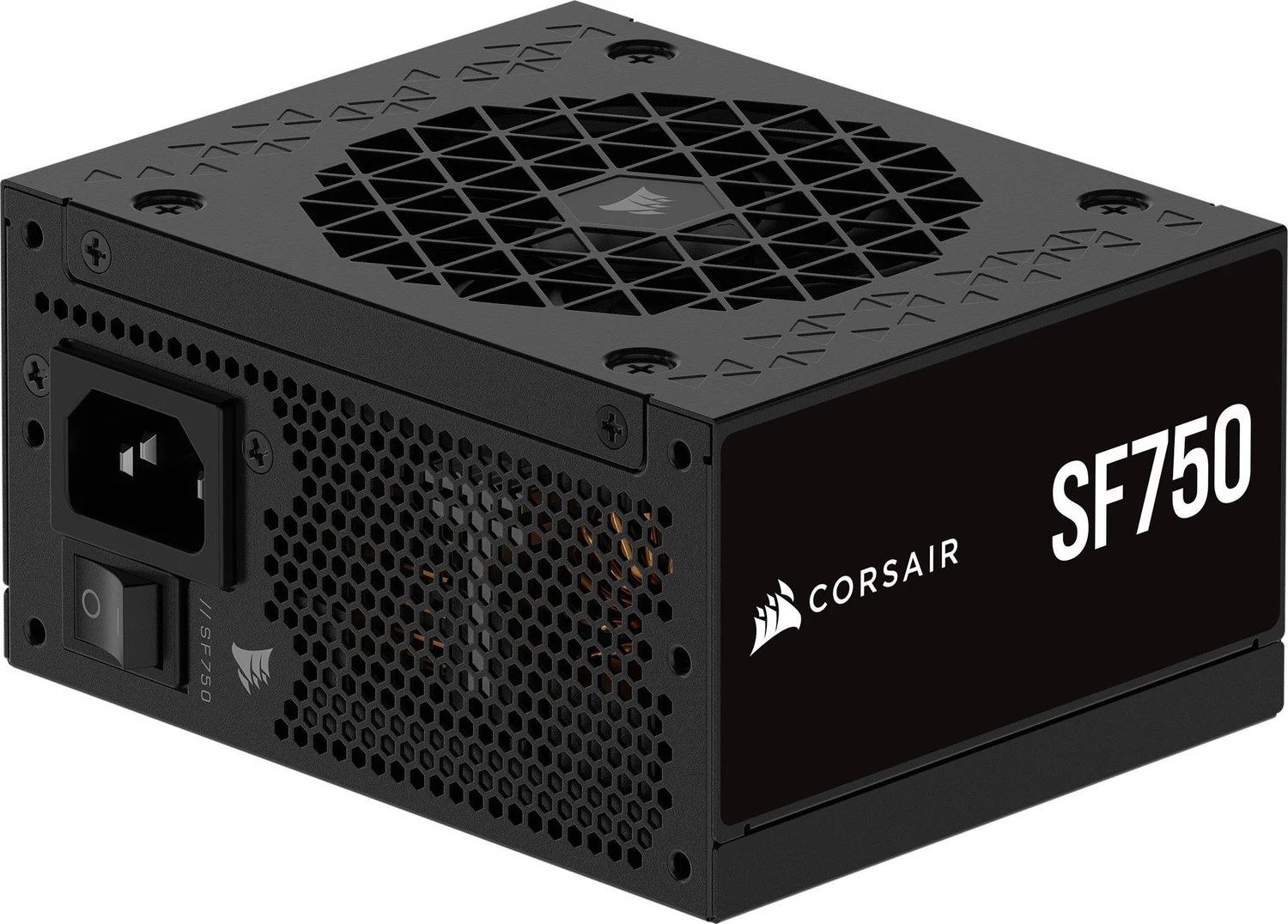

Corsair SF Series Platinum SF750
750 W · 80 PLUS Platinum · SFX, ATX 3.1
Specifications
| Wattage | 750 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | SFX, ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | SFX |
| Warranty | 7 years |
| Other Features | ErP Lot 6 Supports Haswell C6/C7 low-power states Includes SFX to ATX PSU adapter |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 125 mm |
|---|---|
| Depth | 100 mm |
| Height | 64 mm |
| Color | Black |

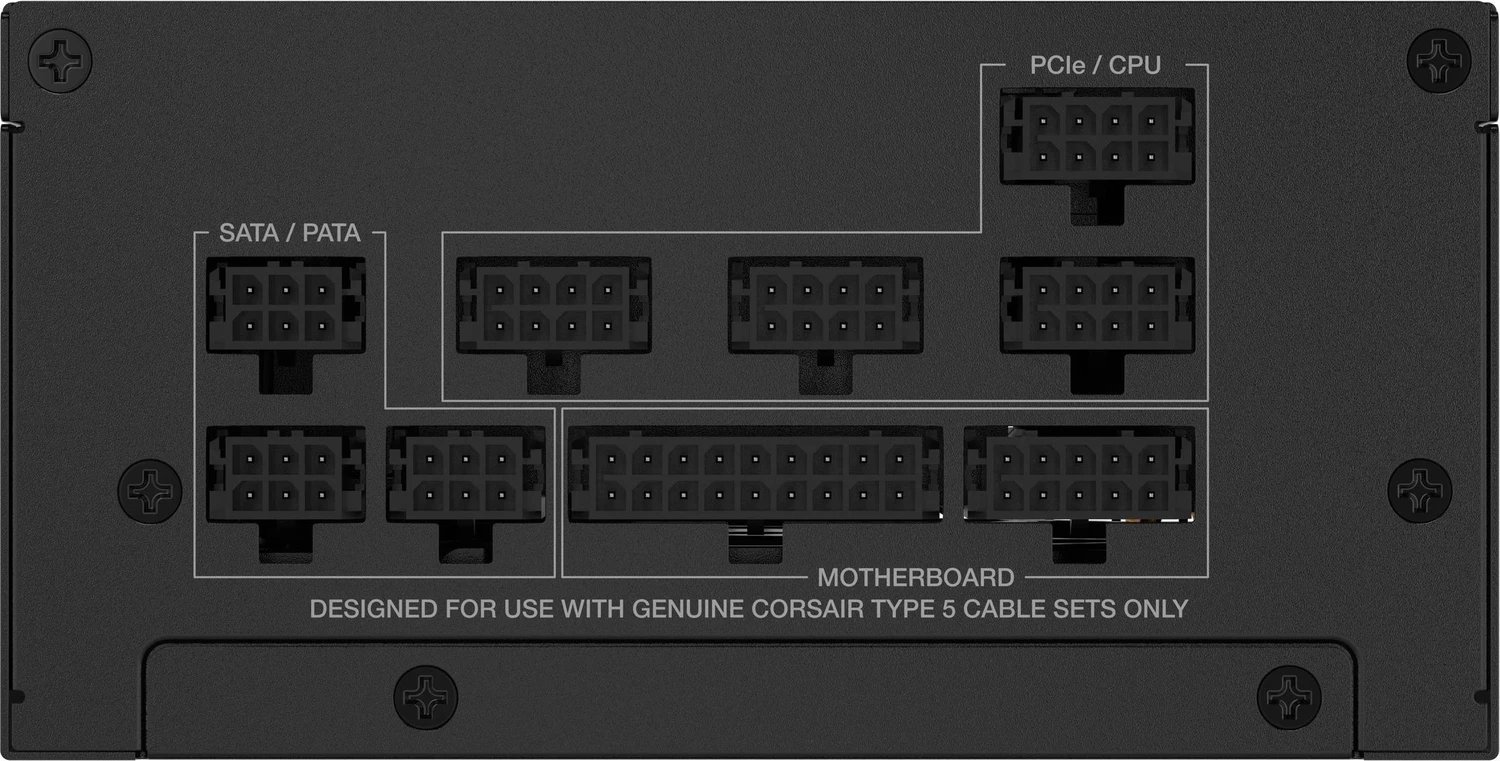

Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 8× |
| PCIe 6+2-pin | 2× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 89.35% |
|---|---|
| 115V · cybenetics | 90.86% |
| 230V · cybenetics | 92.59% |
Noise
| 115V · cybenetics | 27.54 dB(A) |
|---|---|
| 230V · cybenetics | 26.17 dB(A) |

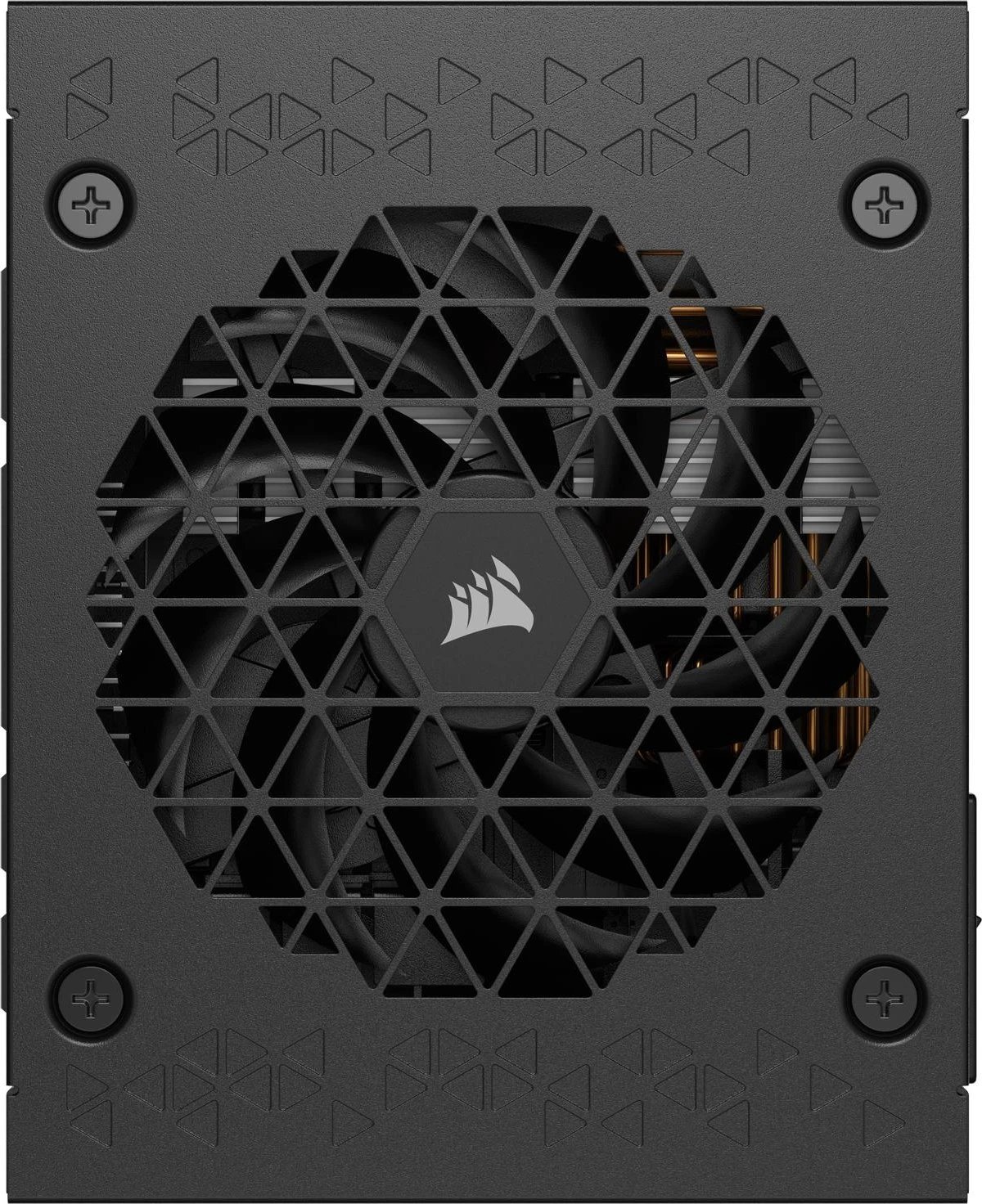

Fan
| Fan size | 92 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
