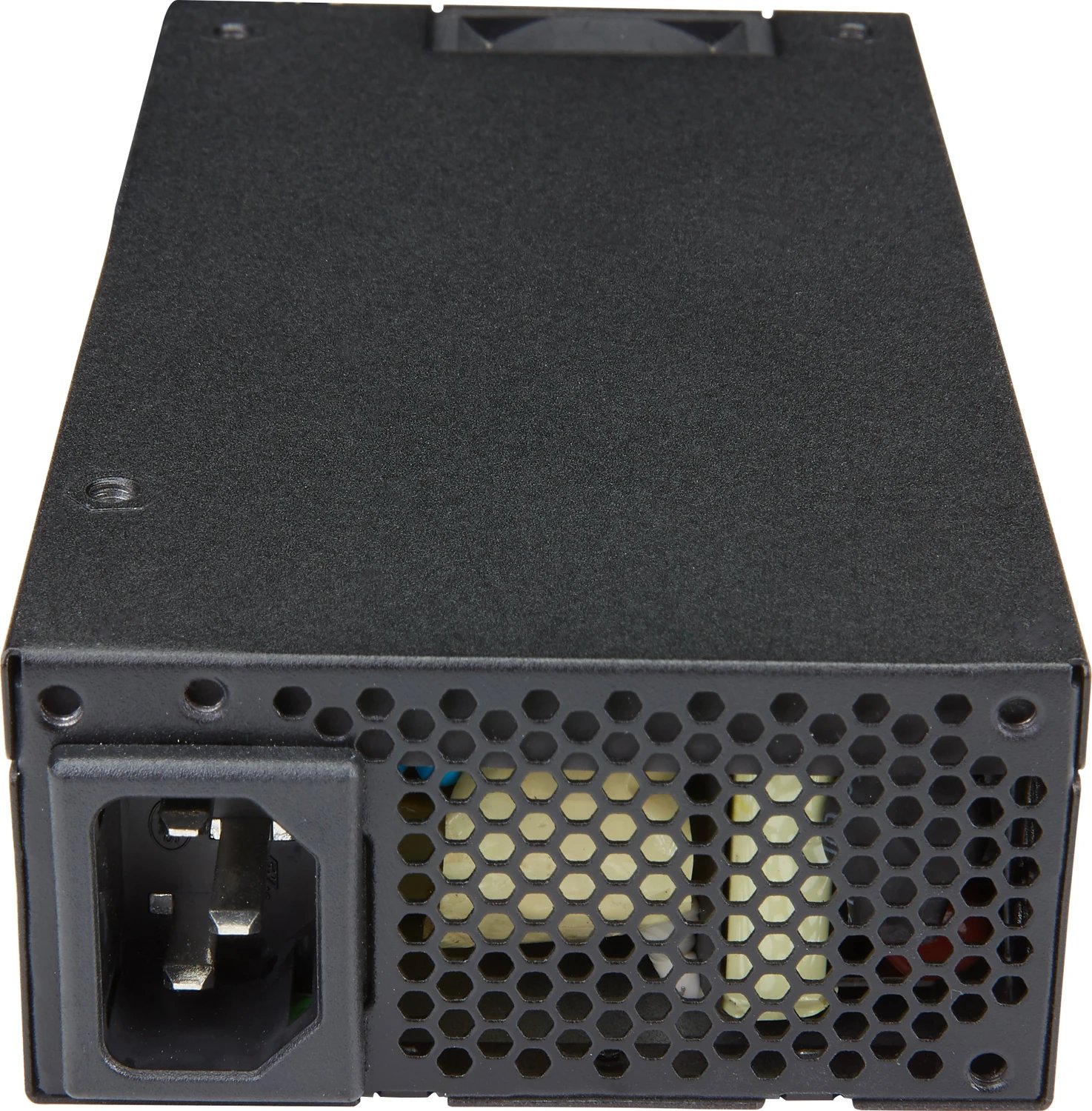

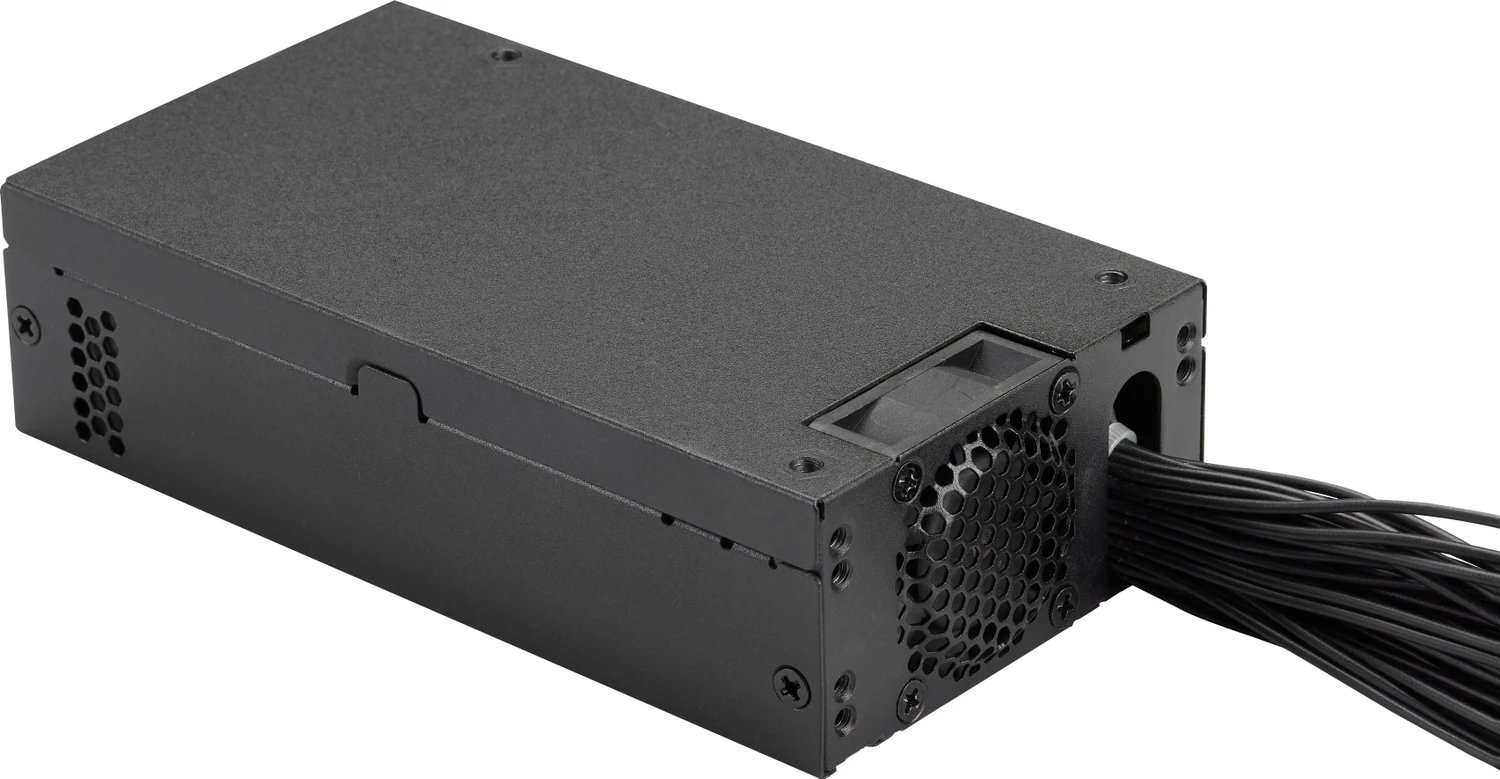

FSP FlexGURU PRO FSP500-50FDB
500 W · 80 PLUS Gold · Flex-ATX 1.22
Specifications
| Wattage | 500 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | Flex-ATX 1.22 |
| Cable design | Non-modular |
| Form Factor | Flex-ATX |
| Warranty | 5 years |
| Other Features | ErP Lot 6 Includes 1U mounting bracket (for use as a 1U IPC PSU) |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 82 mm |
|---|---|
| Depth | 150 mm |
| Height | 40 mm |
| Color | Black |
Cables and Connectors
| IDE / Molex | 2× |
|---|---|
| SATA | 4× |
| Floppy | 1× |
| CPU 4-pin | 1× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| · manufacturer | 90% |
|---|---|
| 115V · 80plus_official | 89.22% |
Fan
| Fan size | 40 mm |
|---|---|
| Operating mode | Always on |
