Gigabyte P550B

550 W · 80 PLUS Bronze · ATX 2.31

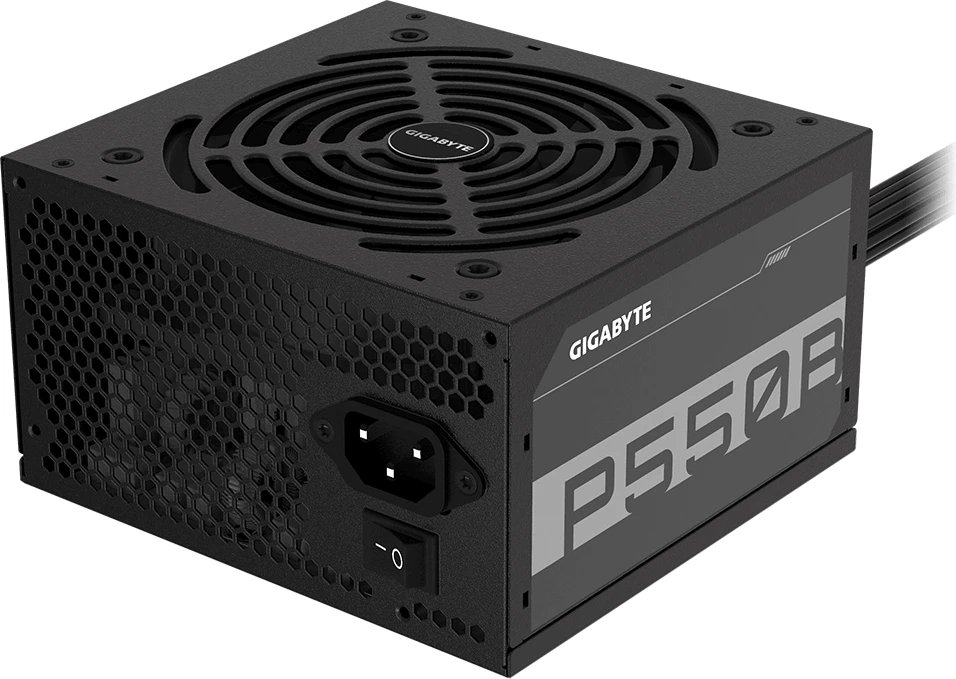

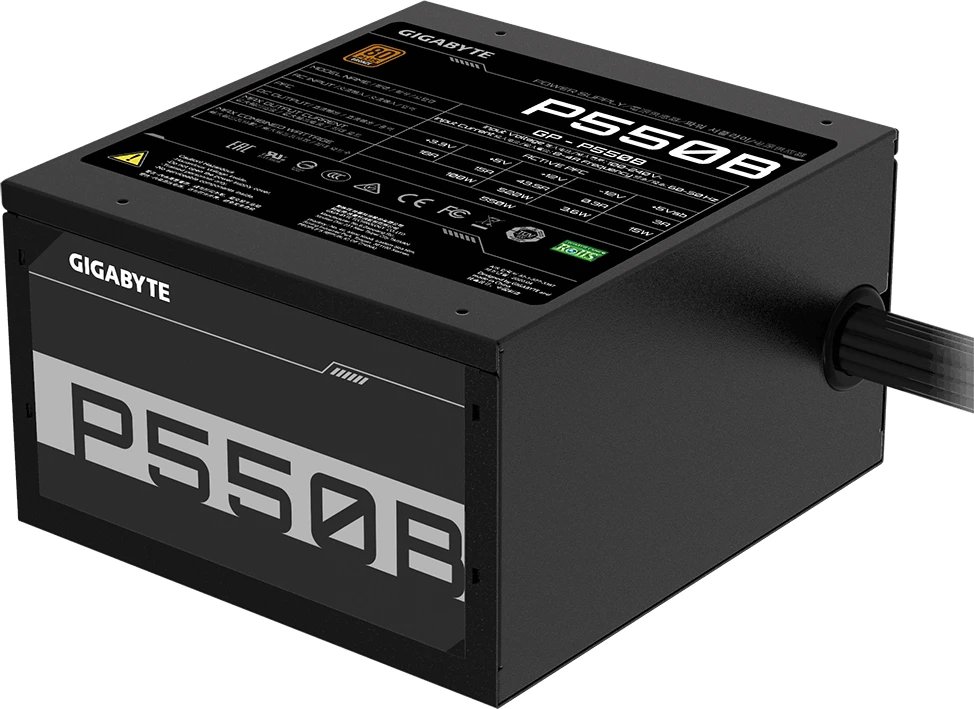

Gigabyte P550B product image
Gigabyte P550B product image 1Gigabyte P550B product image 2Gigabyte P550B product image 3

Specifications

Wattage550 W
80 PLUS Certification80 PLUS Bronze
ATX StandardATX 2.31
Cable designNon-modular
Form FactorATX PS/2
Warranty3 years
Other FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth140 mm
Height86 mm
ColorBlack

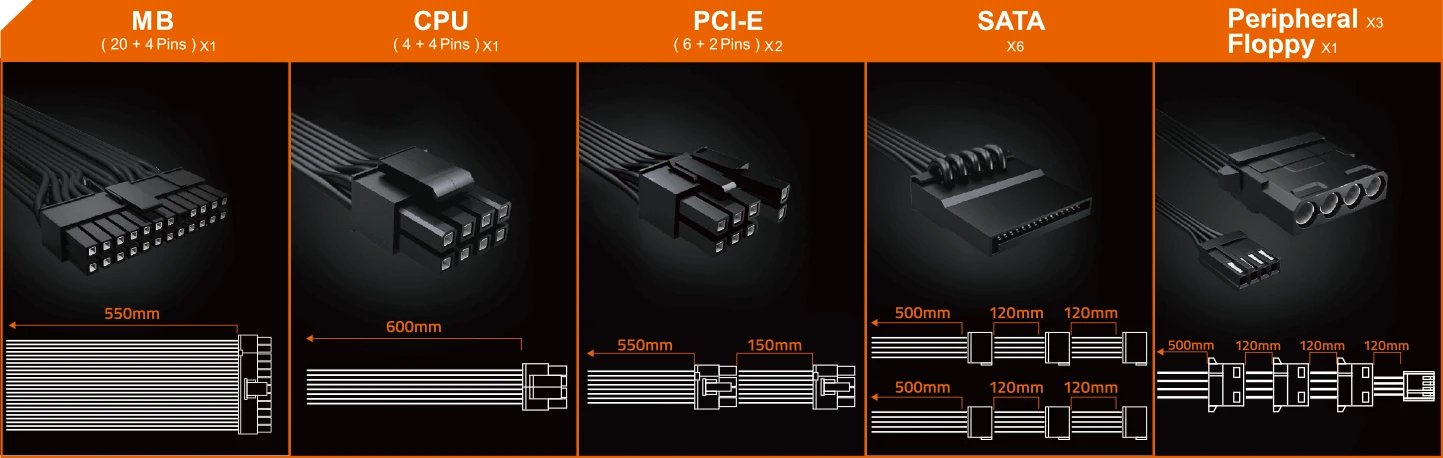

Cables and Connectors

IDE / Molex3×
SATA6×
Floppy1×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official85%
115V · cybenetics83.01%
230V · cybenetics84.9%

Noise

115V · cybenetics42.44 dB(A)
230V · cybenetics41.55 dB(A)

Fan

Fan size120 mm
Operating modeAlways on
