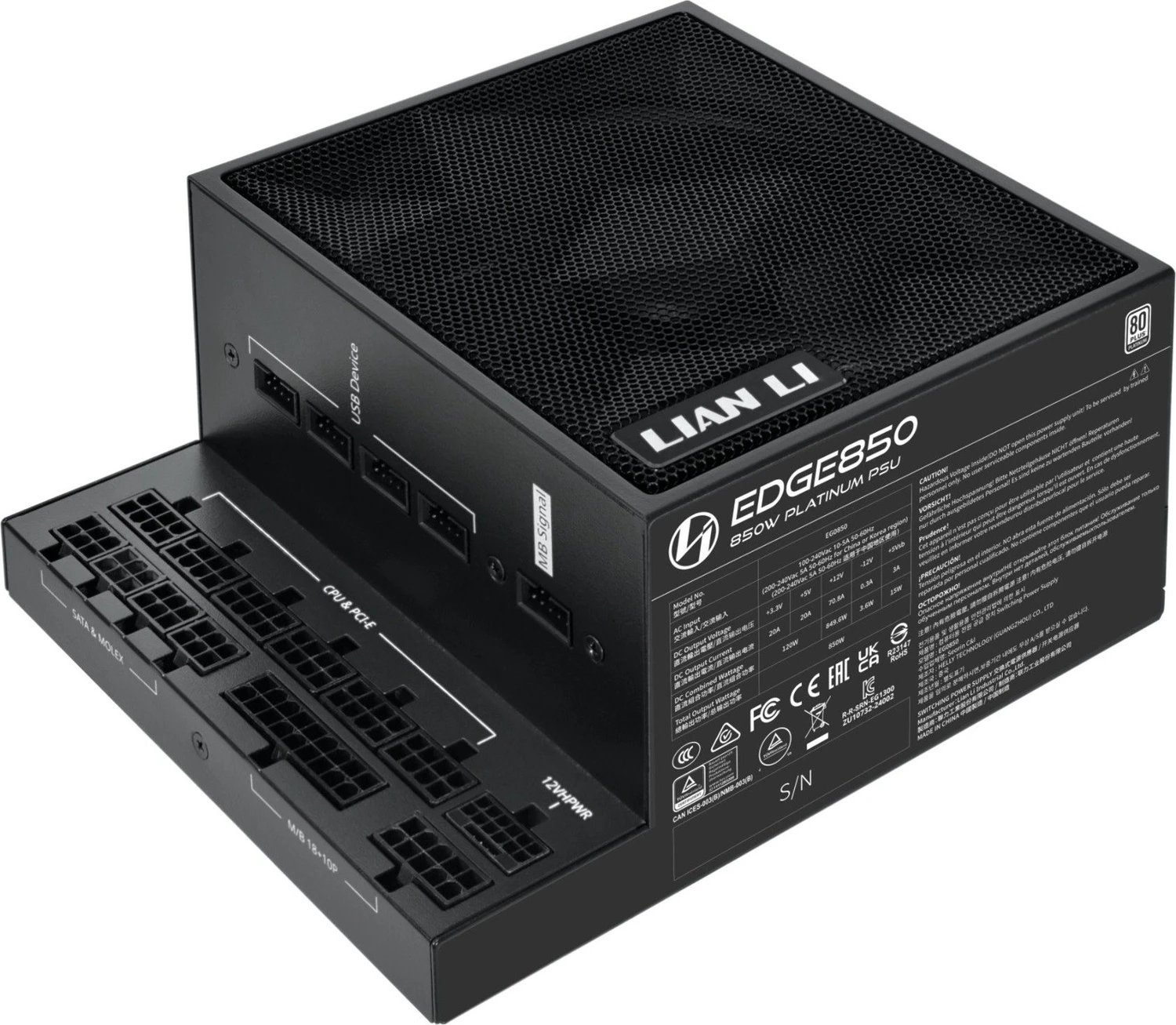

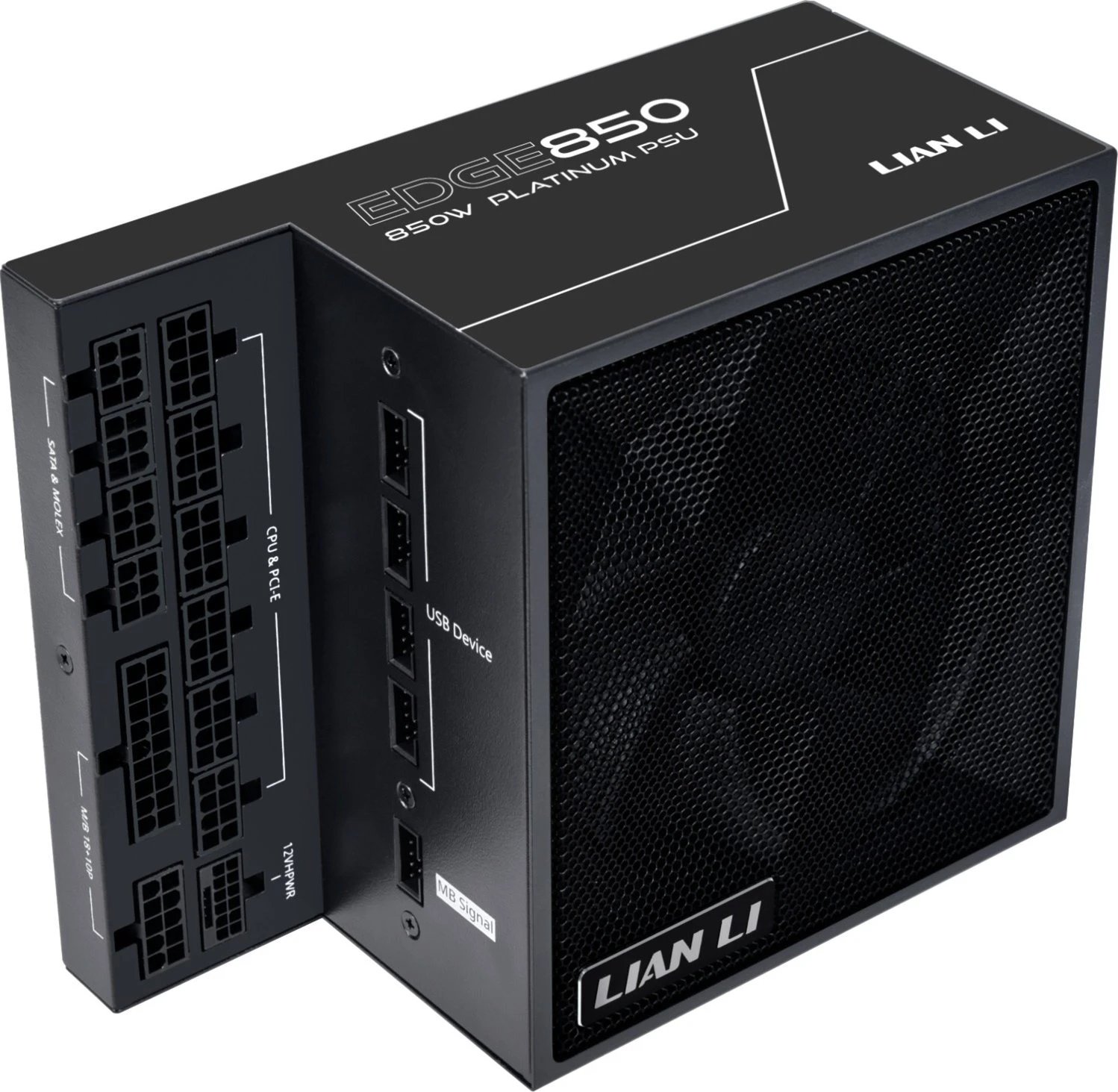

Lian Li EDGE Platinum 850
850 W · 80 PLUS Platinum · ATX 3.1
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 10 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Other Features | ErP Lot 6 Supports Haswell C6/C7 low-power states Internal connectors mounted on the side |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 182 mm |
| Height | 86 mm |
| Color | Black |

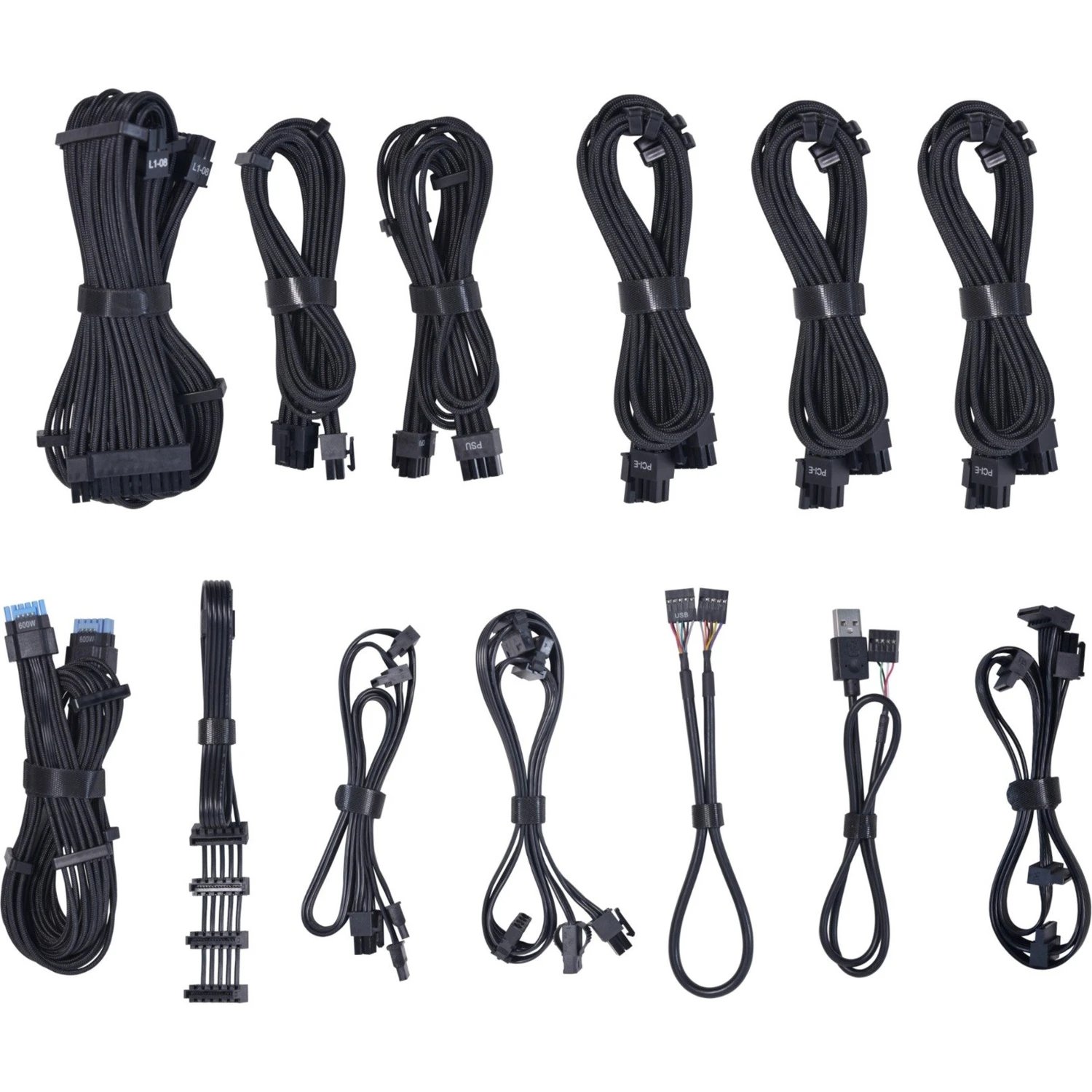

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 12× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 89.33% |
|---|---|
| 115V · cybenetics | 89.55% |
| 230V · cybenetics | 91.69% |
Noise
| 115V · cybenetics | 25.82 dB(A) |
|---|---|
| 230V · cybenetics | 25.56 dB(A) |
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Always on |
