NZXT C Series C1500 Platinum

1500 W · 80 PLUS Platinum · ATX 3.1

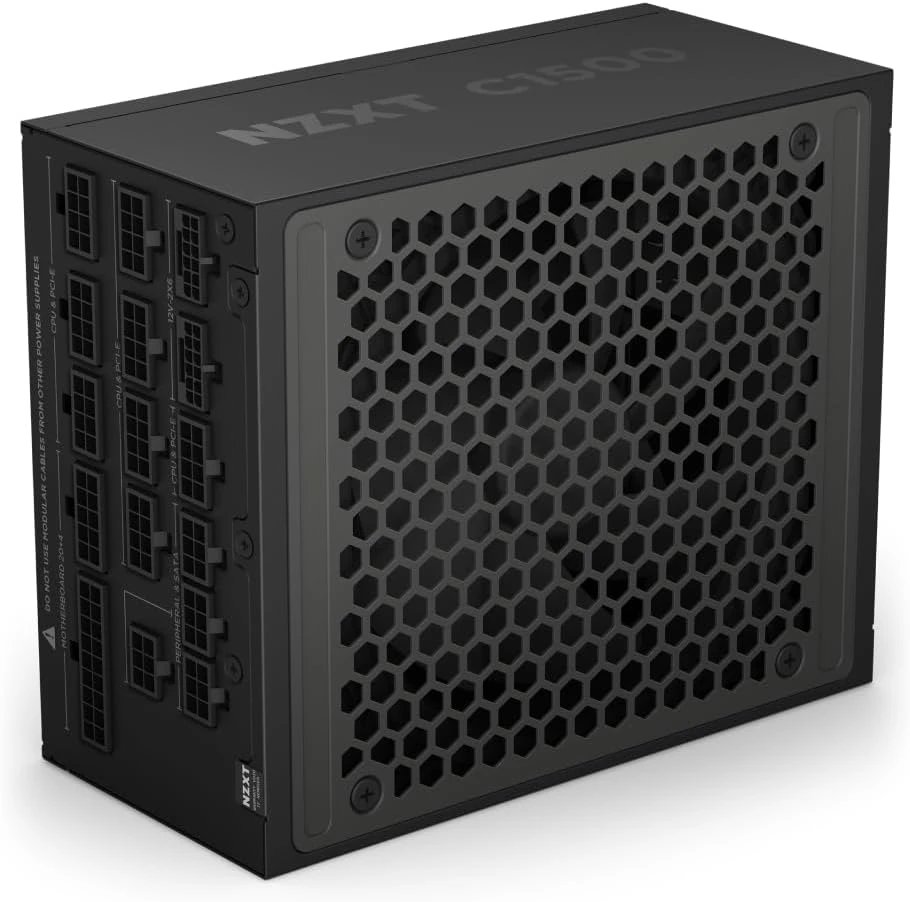

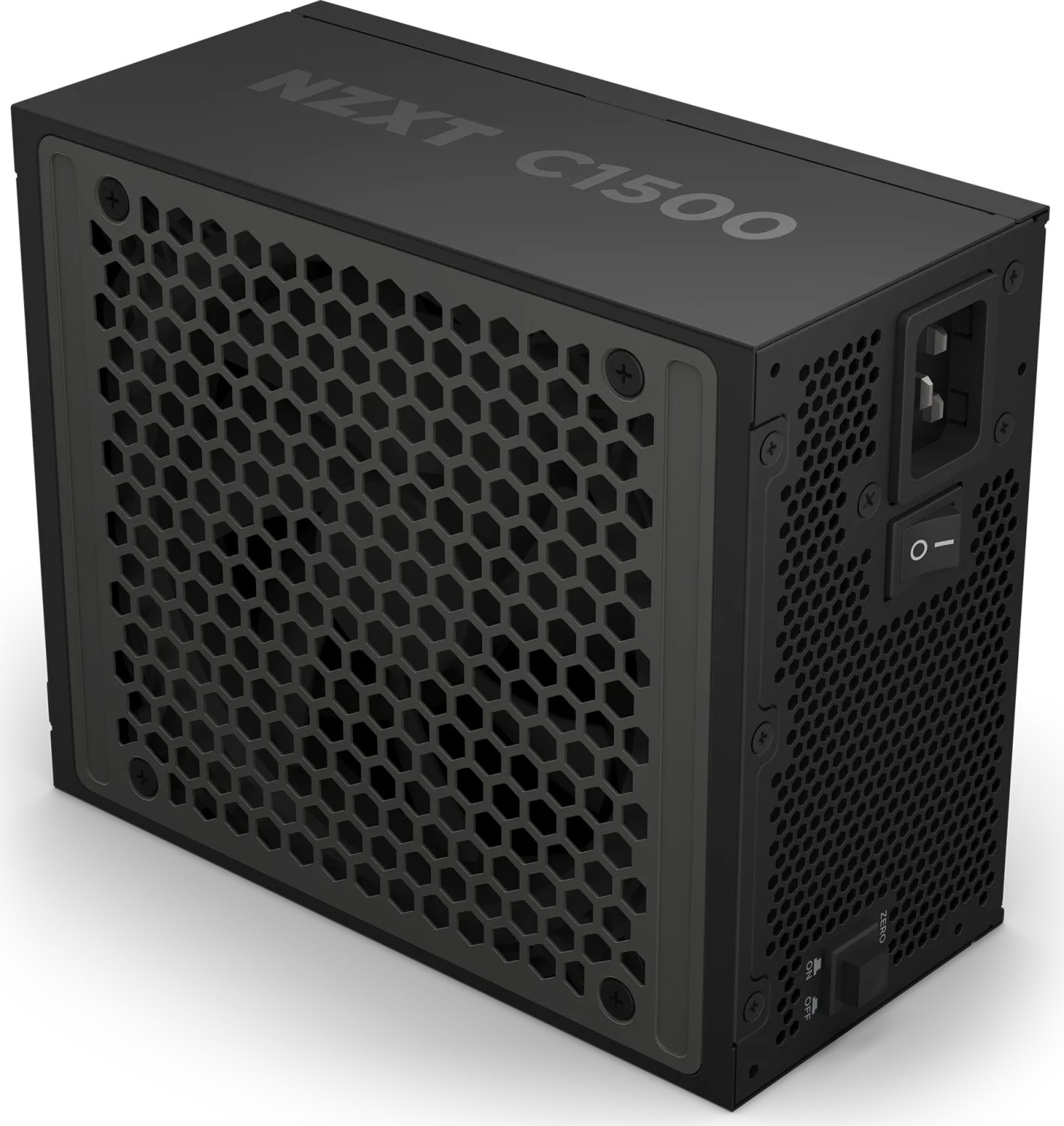

NZXT C Series C1500 Platinum product image
NZXT C Series C1500 Platinum product image 1NZXT C Series C1500 Platinum product image 2NZXT C Series C1500 Platinum product image 3NZXT C Series C1500 Platinum product image 4

Specifications

Wattage1500 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.1

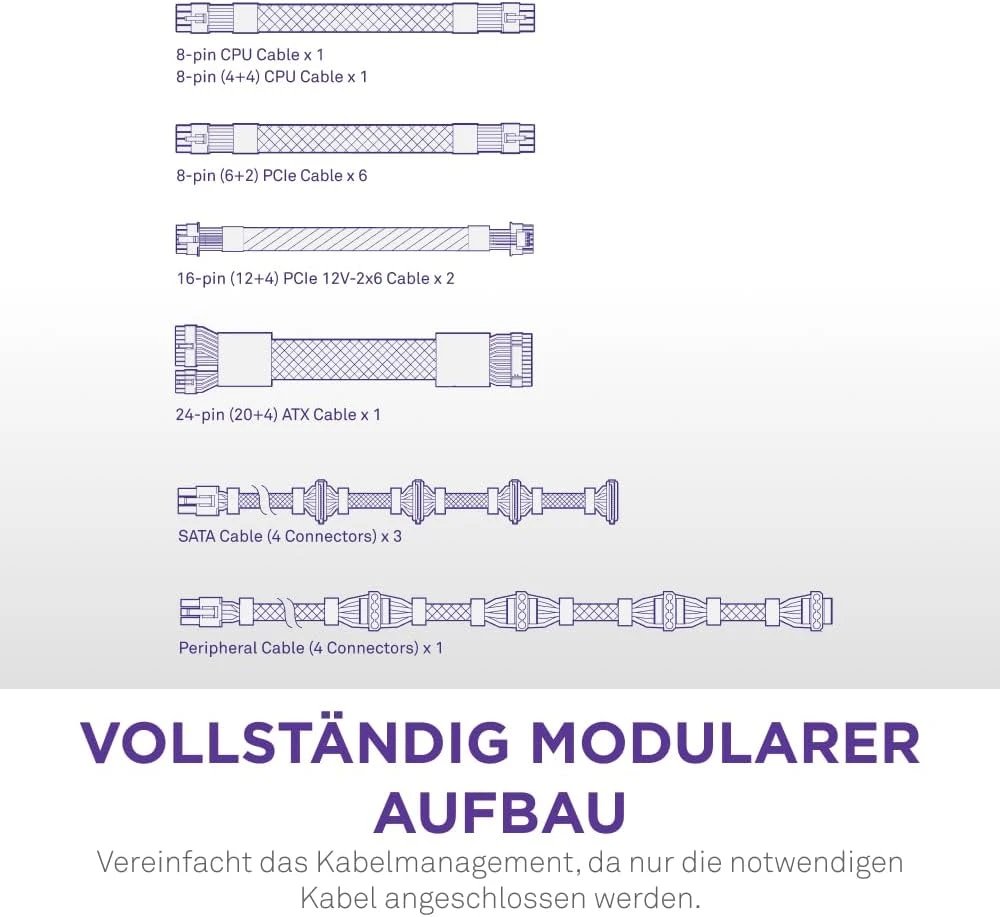

Cable designFully modular
Form FactorATX PS/2
Warranty10 years
Graphics card connector2× 12V-2x6 (native) · 600 W
Other Features
ErP Lot 6
Semi-passive mode switchable
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth180 mm
Height86 mm
ColorBlack

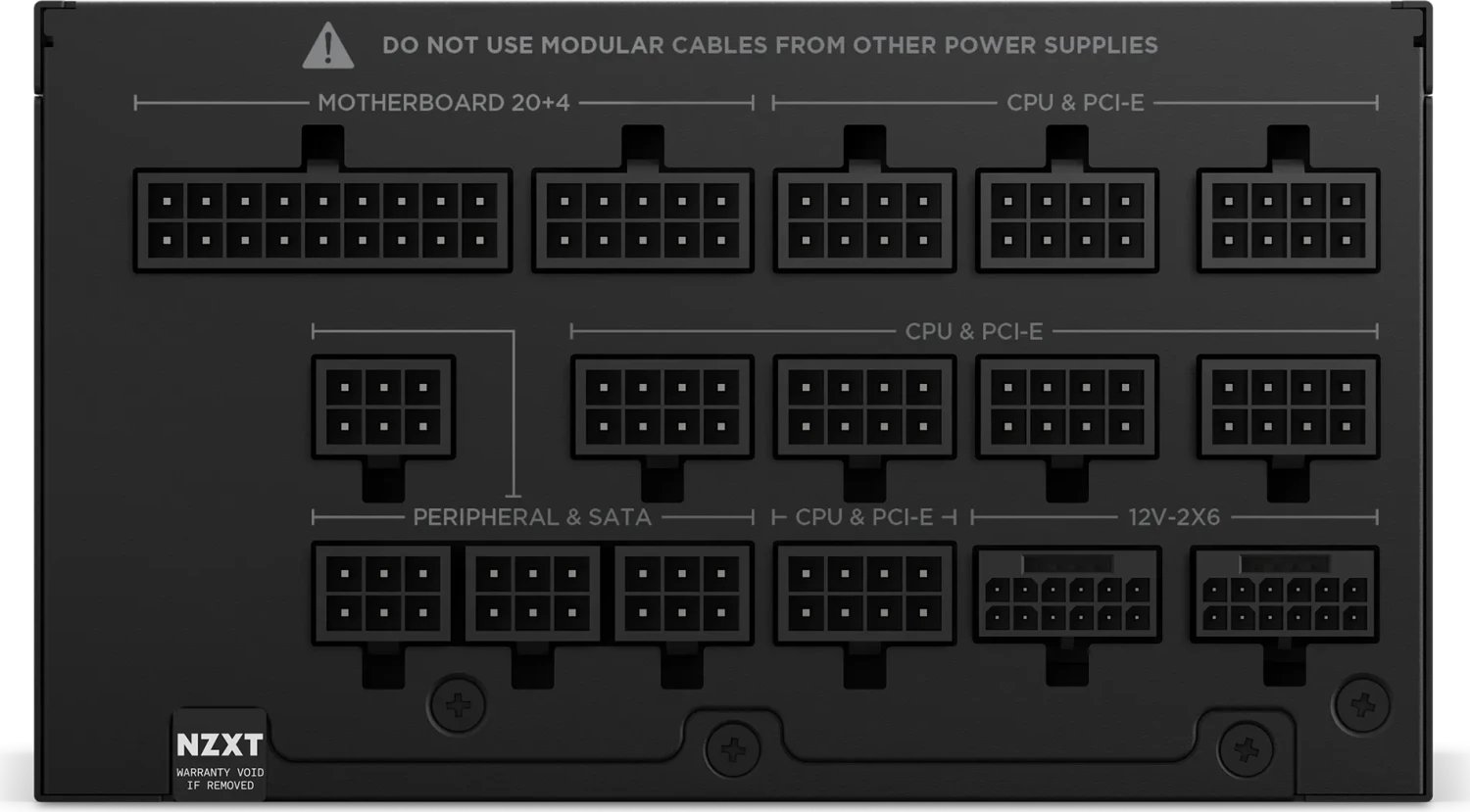

Cables and Connectors

IDE / Molex4×
SATA12×
EPS12V 8-pin1×
PCIe 6+2-pin6×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official92.13%
115V · cybenetics91.49%
230V · cybenetics93.07%

Noise

· manufacturer41 dB(A)
115V · cybenetics25.4 dB(A)
230V · cybenetics25.4 dB(A)

Fan

Fan size140 mm
Operating modeSemi-passive (stops at low load)
