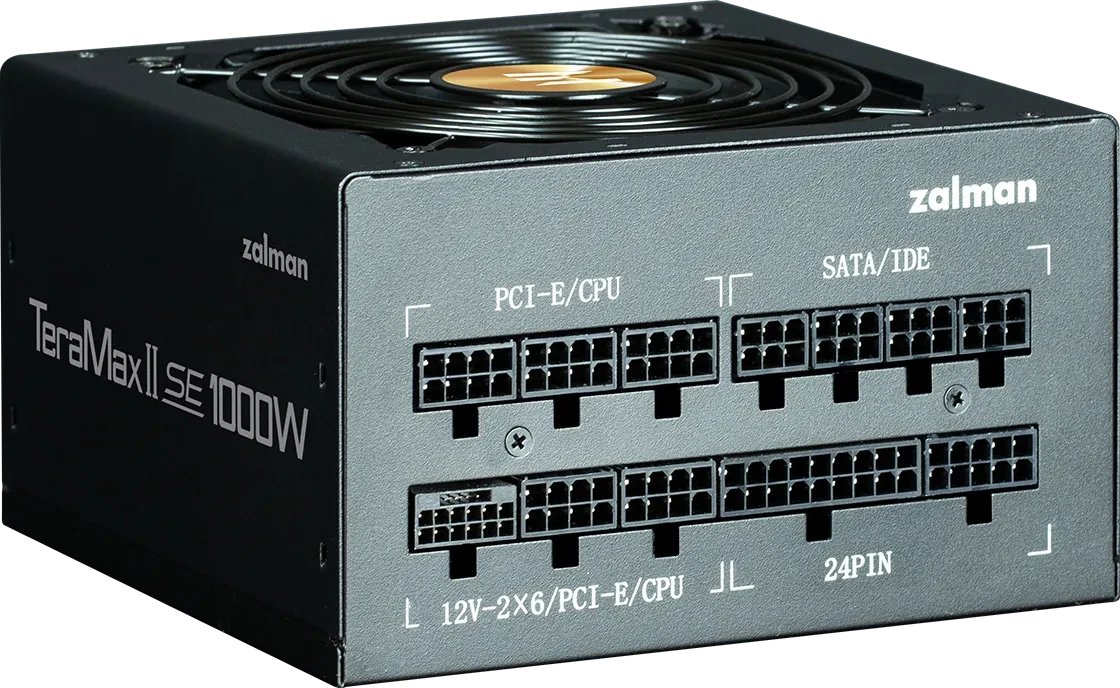

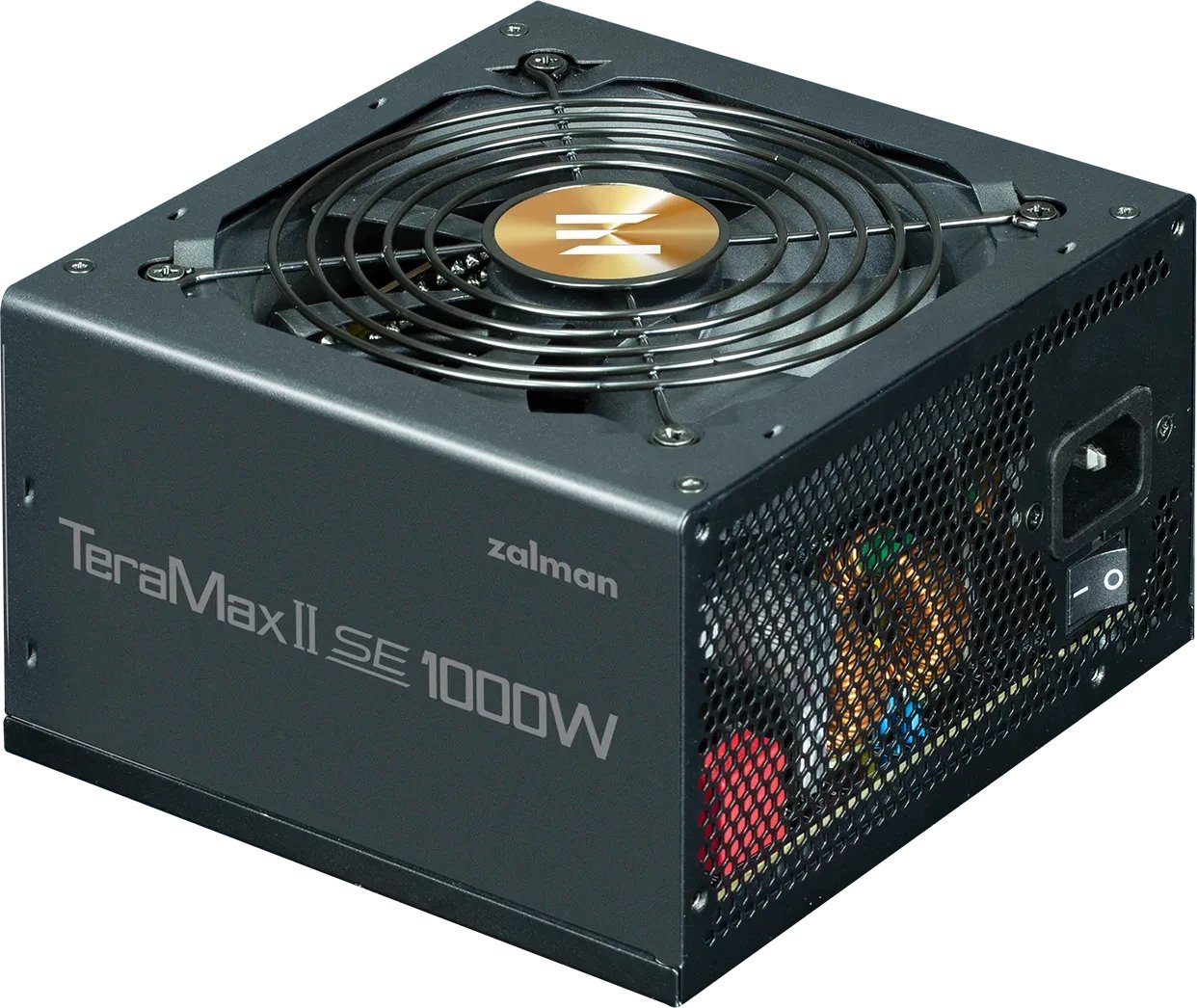

Zalman TeraMax II SE
1000 W · 80 PLUS Gold · ATX 3.1
Specifications
| Wattage | 1000 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 5 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Other Features | ErP Lot 6 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.8 kg |
| Color | Black |

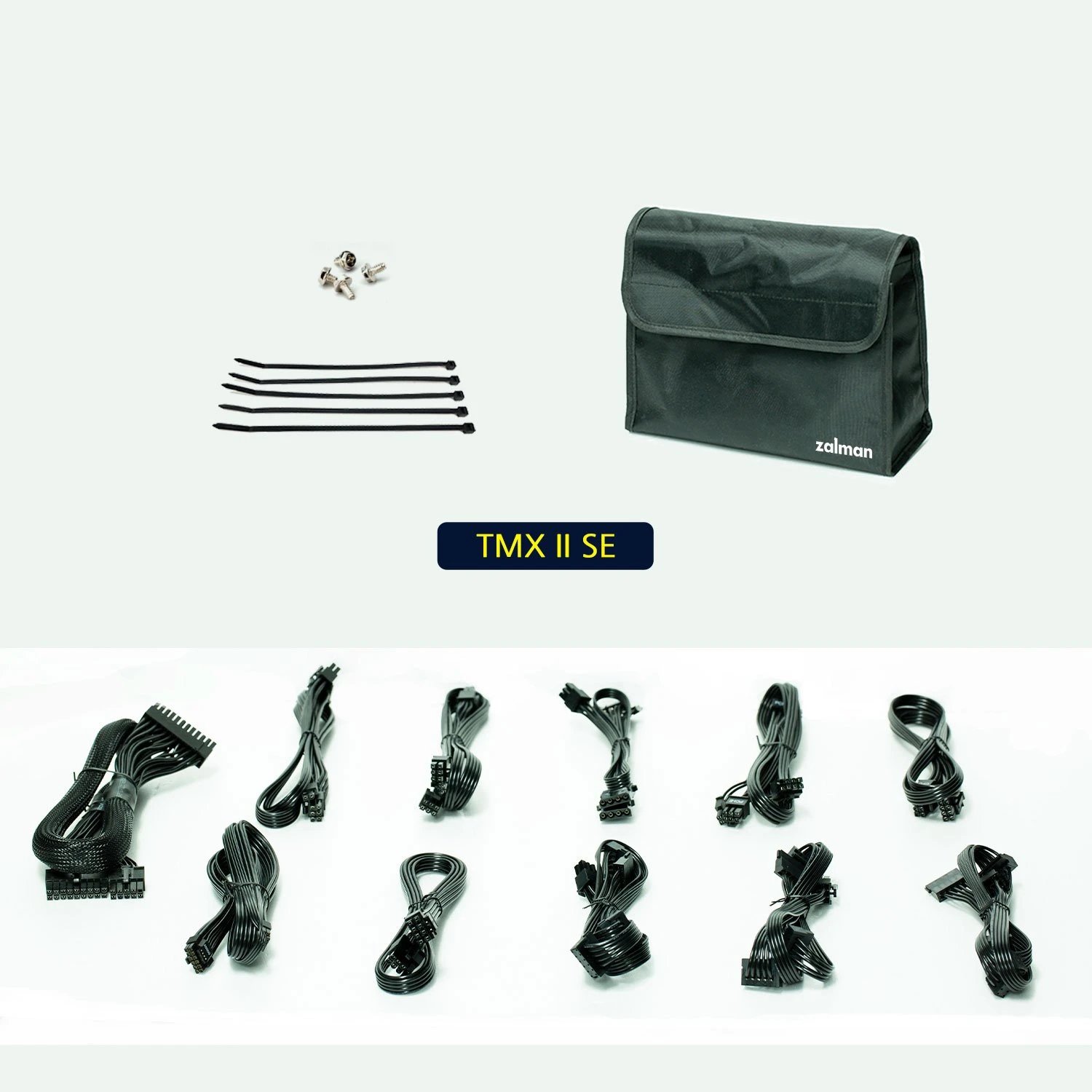

Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 12× |
| Floppy | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 88.43% |
|---|---|
| 115V · cybenetics | 89.05% |
| 230V · cybenetics | 91.11% |
Noise
| 115V · cybenetics | 29.99 dB(A) |
|---|---|
| 230V · cybenetics | 29.67 dB(A) |
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Always on |
