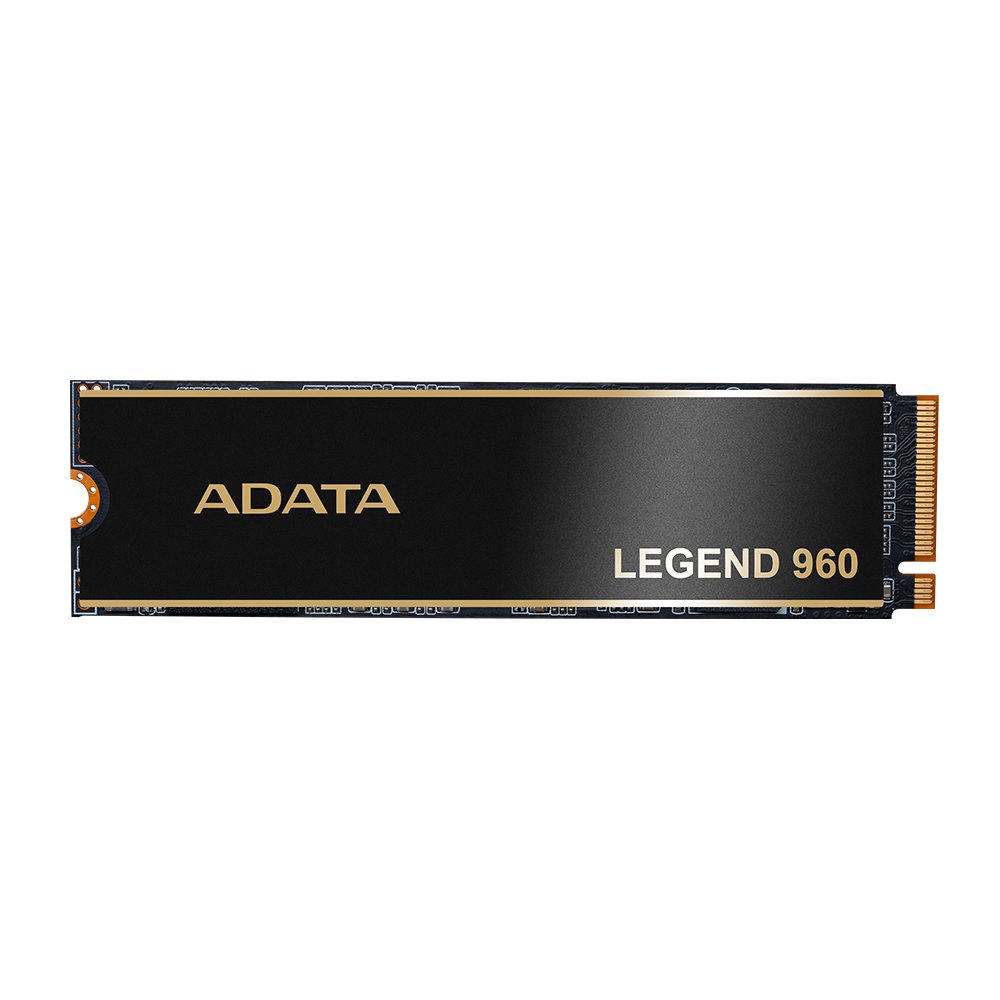

ADATA LEGEND 960 2TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 2000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7400 MB/s |
|---|---|
| Sequential Write | 6800 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 2048 MB |
| Cache Note | DRAM cache confirmed as 2GB total (2x Samsung DDR4 K4A8G165WC-BCTD, 1GB per side) per third-party teardown review. Uses Silicon Motion SM2264 controller with Micron 176-layer TLC NAND. |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | Ships with a factory-installed slim aluminum heatsink; exact height in mm not published. |
