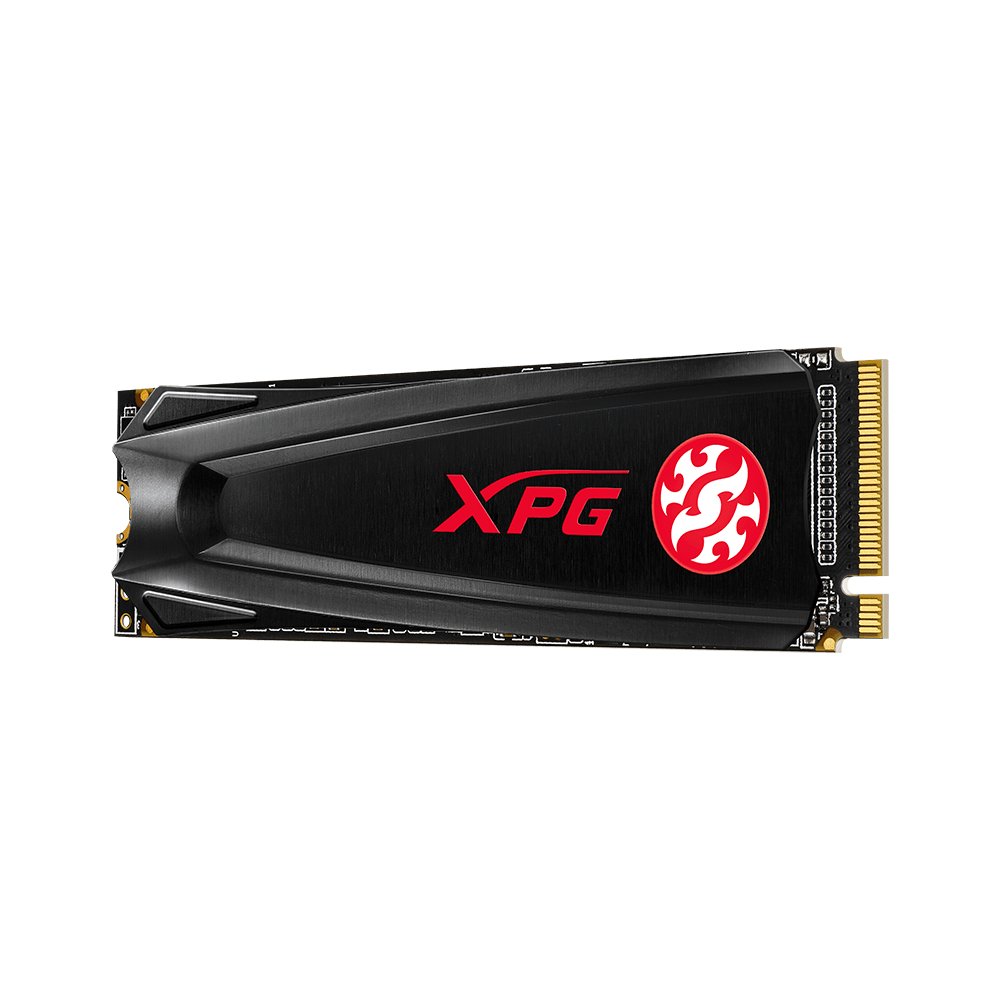

ADATA XPG GAMMIX S11 Lite 960GB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 960 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3150 MB/s |
|---|---|
| Sequential Write | 1200 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | This entry uses the confirmed spec for the original (non-Lite) GAMMIX S11, since the "Lite" variant's exact spec could not be separately verified this session - the two may differ slightly. Uses Silicon Motion SM2262 controller with 64-layer TLC NAND; same core hardware as the ADATA SX8200 with a… |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 10 mm |
| Heatsink Note | Ships with a factory-installed thin red-colored metal heatsink; manufacturer claims up to 10C temperature reduction. |
