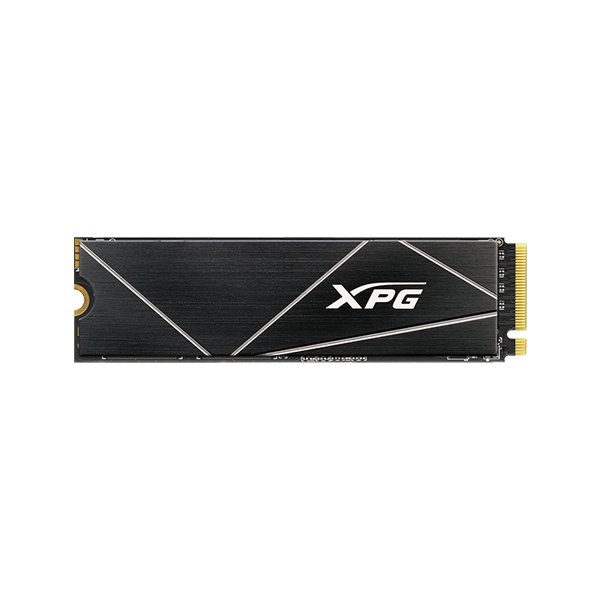

ADATA XPG MARS 970 PLUS 2TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 2000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 11000 MB/s |
|---|---|
| Sequential Write | 10000 MB/s |
| DRAM Cache | No |
| Cache Type | HMB |
| Cache Note | DRAM-less design confirmed per official datasheet ("SLC Caching and Host Memory Buffer"); uses Silicon Motion SM2504 controller. |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | Ships with a separate heatsink accessory in the box (not factory-attached); manufacturer recommends using the motherboard's own heatsink instead if available; thin profile requires no active cooling. |
