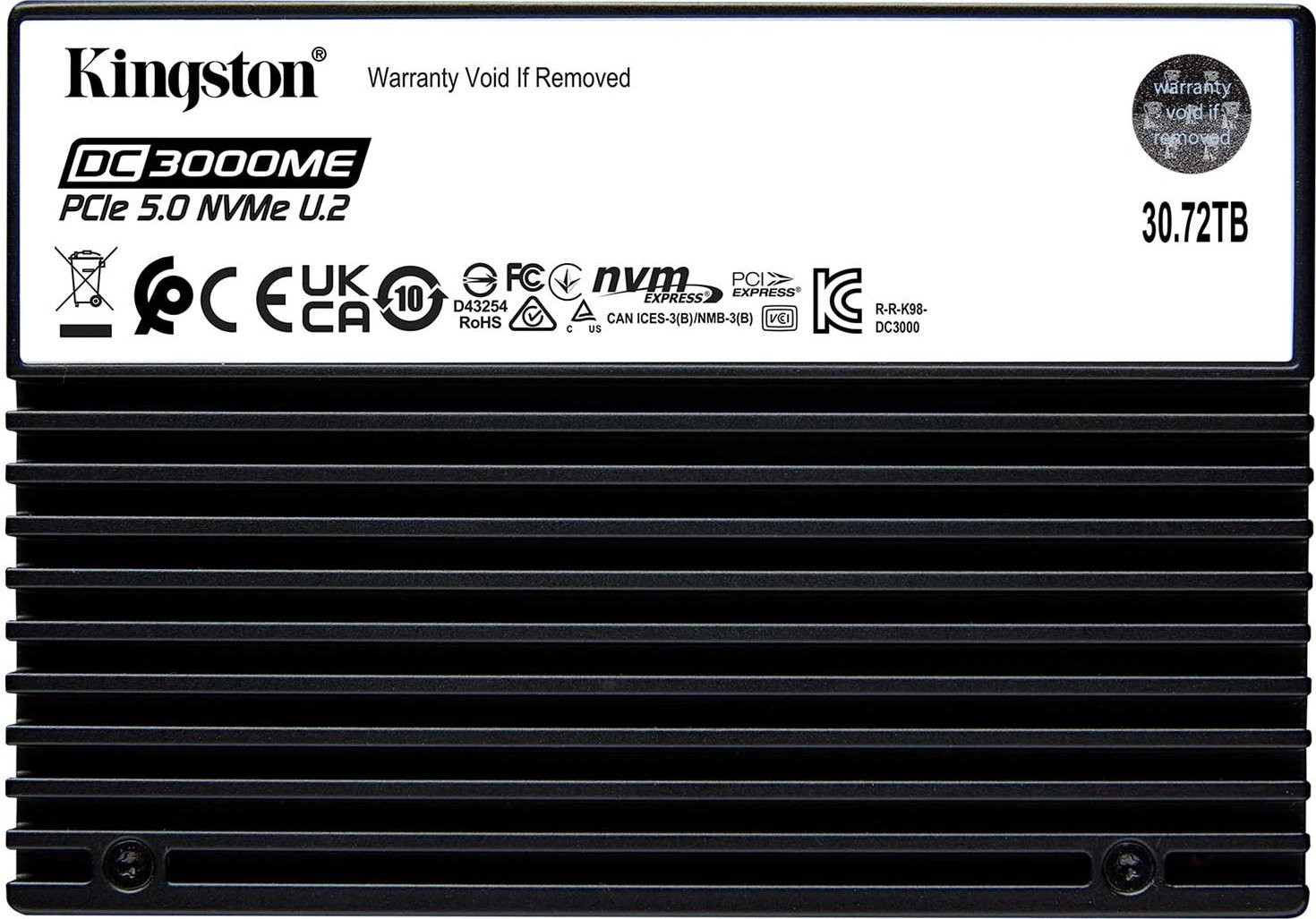

Kingston DC3000ME PCIe 5.0 NVMe U.2 SSD 30.72TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | U.2 |
| Capacity | 30720 GB |
| Dimensions | 100.5x69.8x14.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14000 MB/s |
|---|---|
| Sequential Write | 9700 MB/s |
| 4K Read (IOPS) | 2,600K |
| 4K Write (IOPS) | 350K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 5120 MB |
| Cache Note | DDR4; Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 232 |
| Controller | Marvell MV-SS1333 |
| Controller Channels | 16 |
Endurance
| Endurance (TBW) | 56,064 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES, TCG Opal 2.0 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
