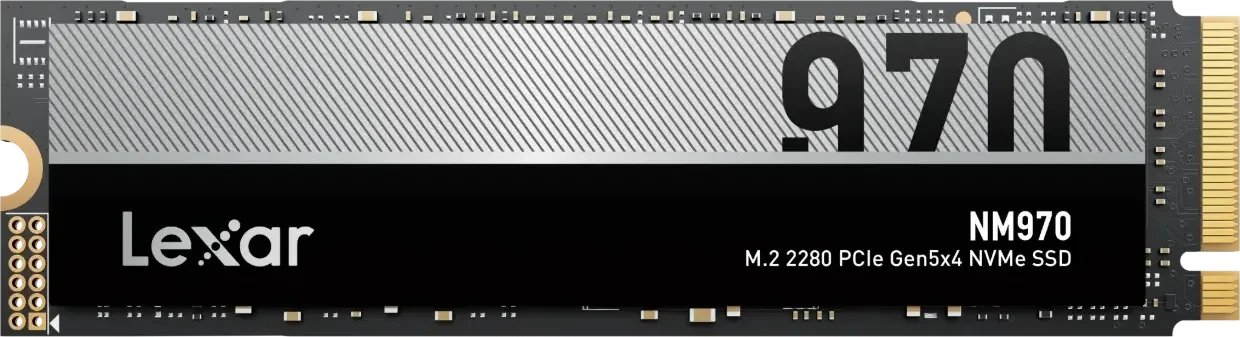

Lexar NM970 1TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x2.45mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 11000 MB/s |
|---|---|
| Sequential Write | 10000 MB/s |
| 4K Read (IOPS) | 1,500K |
| 4K Write (IOPS) | 1,900K |
| DRAM Cache | No |
| Cache Type | HMB |
Endurance
| Endurance (TBW) | 750 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
