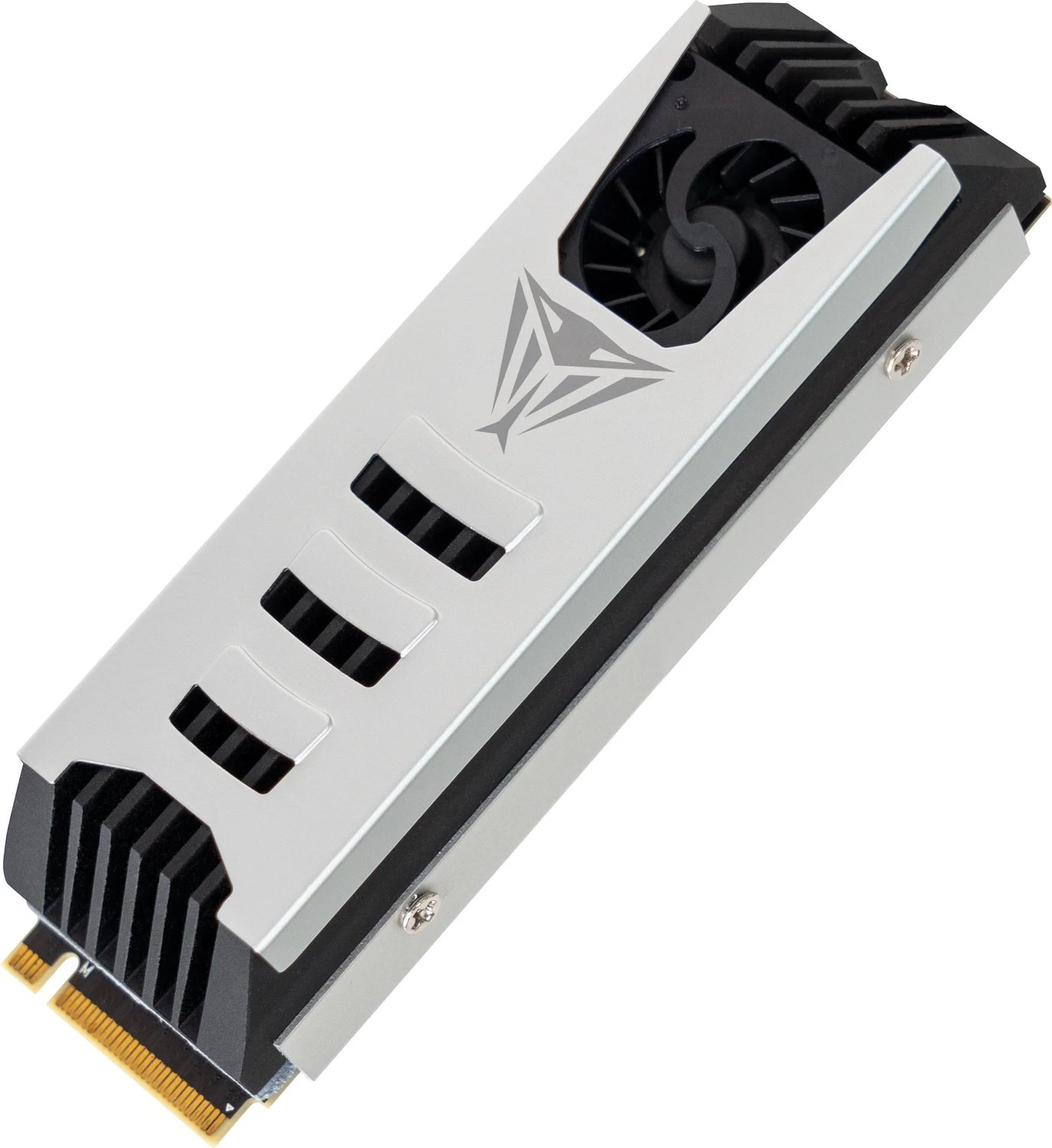

Patriot Viper PV573 4TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 4000 GB |
| Dimensions | 80x24.5x16.5mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14000 MB/s |
|---|---|
| Sequential Write | 12000 MB/s |
| 4K Read (IOPS) | 2,000K |
| 4K Write (IOPS) | 1,650K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 2048 MB |
| Cache Note | DDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 232 |
| Controller | InnoGrit Tacoma IG5666 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 3,000 TB |
|---|---|
| MTBF | 1.6 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 16.5 mm |
| Heatsink Note | Heatsink with active fan; Removable heatsink (pre-installed); Dimensions include heatsink |
